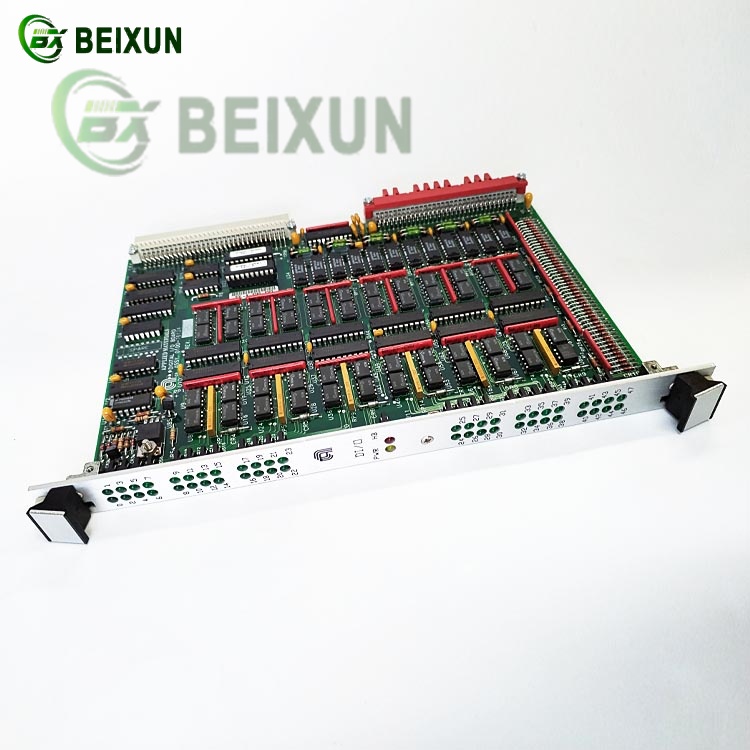

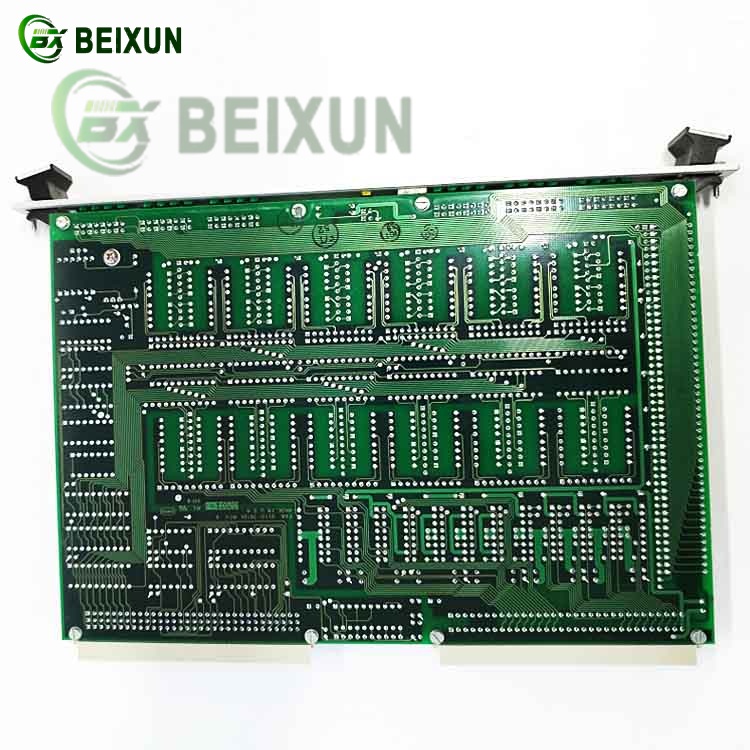

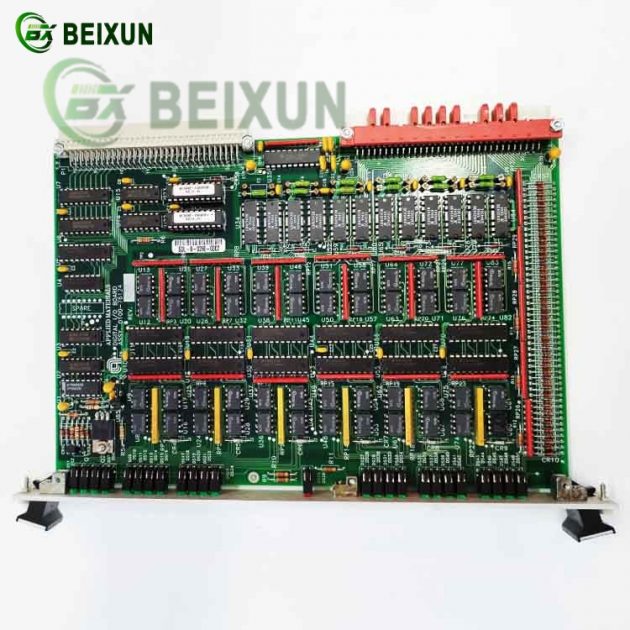

The AMAT 0100-76124 DIGITAL INPUT OUTPUT PCB is a digital I/O module designed for semiconductor manufacturing equipment, primarily used for signal processing, control, and safety interlocking in industrial automation systems.
Below are its key functions and technical details:
1. Core Functions:
Digital Signal Processing:
Handles input/output signals (e.g., sensor data, actuator commands) in semiconductor fabrication tools like deposition (PVD/CVD) and etching systems.
Supports high-speed data acquisition (millisecond response) for real-time process control.
Safety Interlocking:
Monitors chamber status (e.g., door position, vacuum levels) to enforce safety protocols and halt operations during faults.
Provides electrical isolation (≥2500V) to protect against noise and voltage spikes.
System Integration:
Compatible with AMAT’s industrial platforms (e.g., Applied Materials tools) and third-party PLCs/DCS via Modbus or Profibus.
Features modular design (DIN-rail mountable) for easy maintenance.
2. Technical Specifications:
Voltage Range: 24V DC or 110V AC (configurable).
Isolation Rating: ≥2500V (1 min).
Operating Temperature: -20°C to +60°C.
I/O Channels: Multiple digital inputs/outputs (exact count varies by configuration).
3. Applications:
Semiconductor Manufacturing: Controls wafer handling, gas flow, and deposition processes in PVD/CVD chambers.
Industrial Automation: Used in motor control, robotics, and safety-critical systems.
