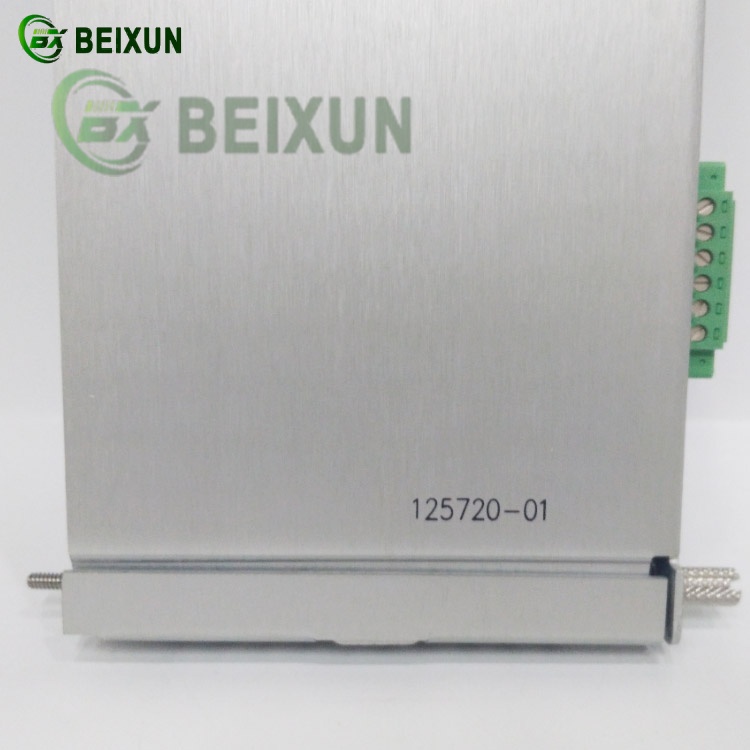

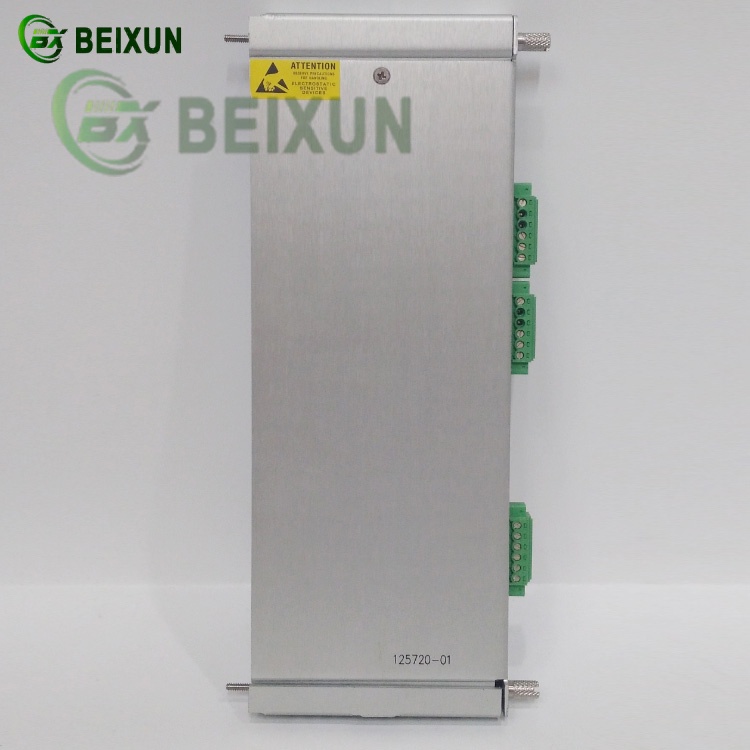

The BENTLY NEVADA 125720-01 4-CHANNEL RELAY I/O MODULE is a critical component in industrial monitoring and control systems, primarily serving the following functions:
1. Signal Isolation & Conversion
Provides electrical isolation between low-current control signals and high-power devices, preventing ground loop interference and protecting downstream equipment.
Converts 4-20mA analog signals (from sensors like vibration/temperature probes) into digital signals for processing by DCS or PLC systems.
2. Relay-Driven Control & Alarm Activation
Features 4 independent relay channels to trigger external alarms, shutdowns, or interlocks based on machinery conditions (e.g., excessive vibration or temperature).
Supports complex logic-driven actions, enabling automated responses to fault conditions.
3. Redundancy & Reliability
Designed for redundant configurations (paired modules) to ensure continuous operation during primary module failures.
Includes self-diagnostic capabilities (channel health monitoring) and hot-swappable design for minimal downtime.
4. Industrial Applications
Power plants: Protects turbines/generators by activating alarms or trips for abnormal vibrations/temperatures.
Oil & gas: Controls compressors/pumps via safety interlocks to prevent catastrophic failures.
Nuclear/chemical: Meets stringent safety standards (e.g., ASME, IECEx) for hazardous environments.
5. Key Features
LED status indicators for real-time monitoring of relay states and faults.
Wide compatibility with Bently Nevada 3500 series monitors and third-party systems.
Robust construction for operation in harsh conditions (-30°C to +65°C).
This module enhances system safety and automation by bridging sensor data with control actions.
