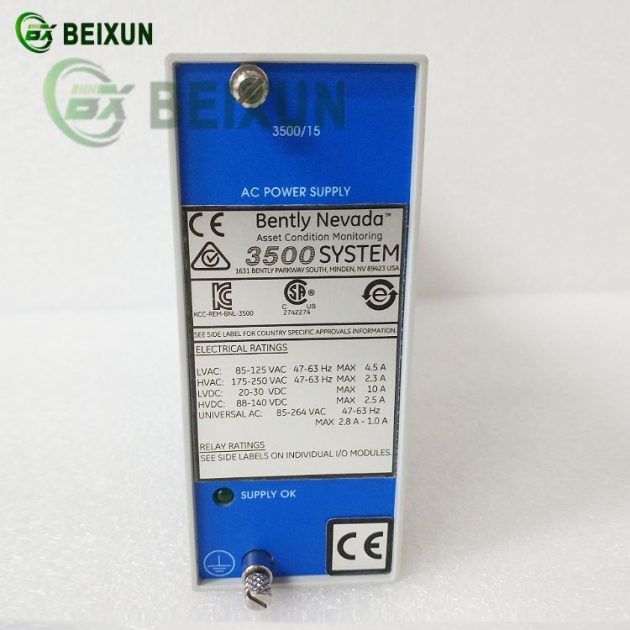

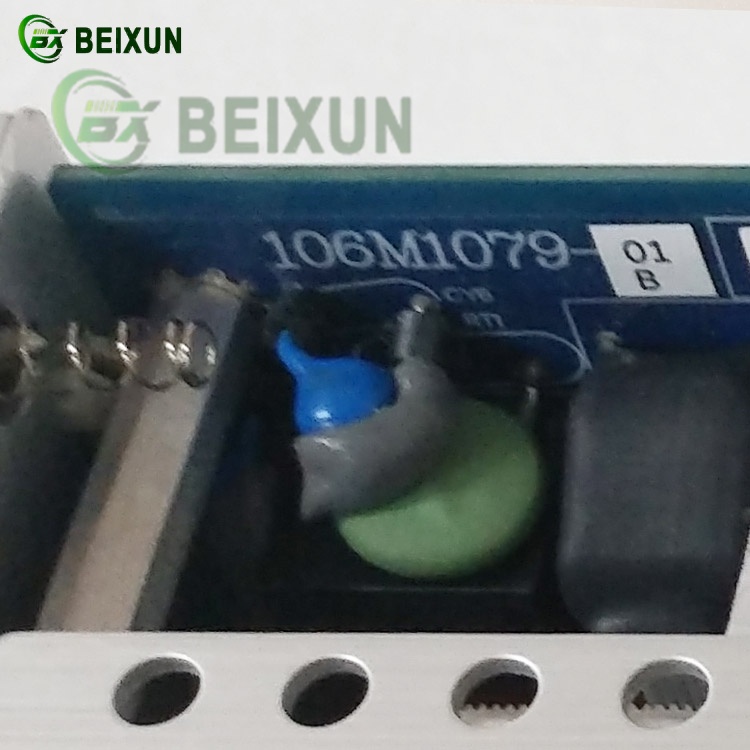

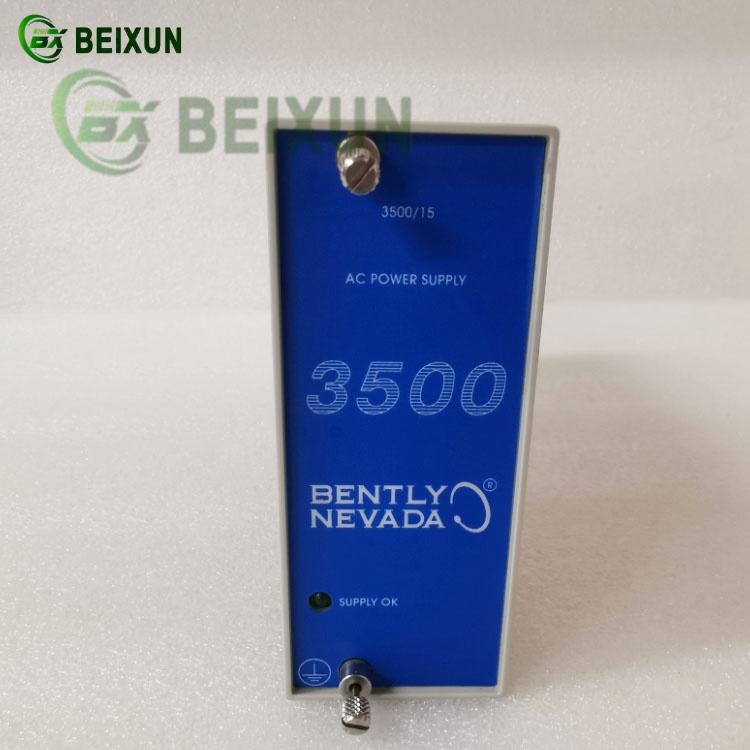

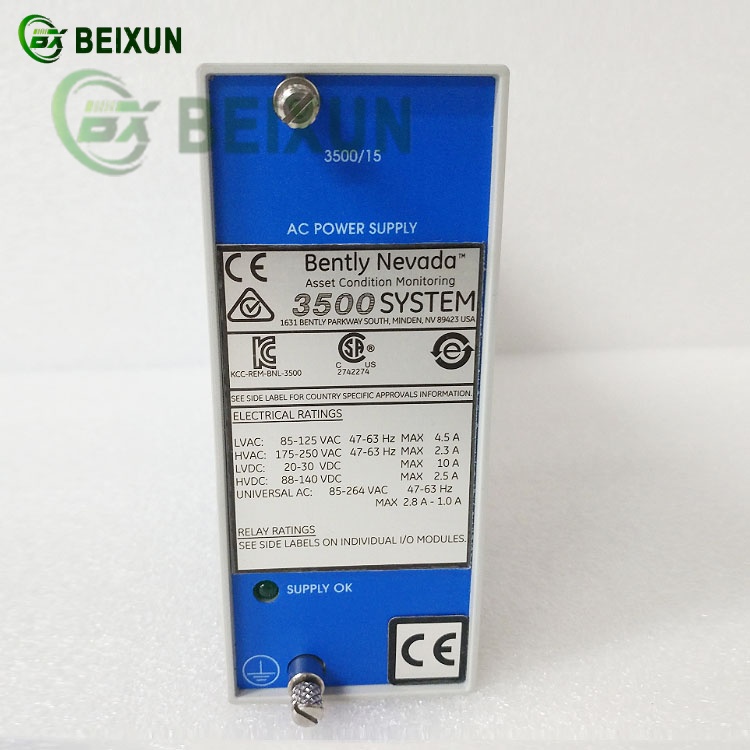

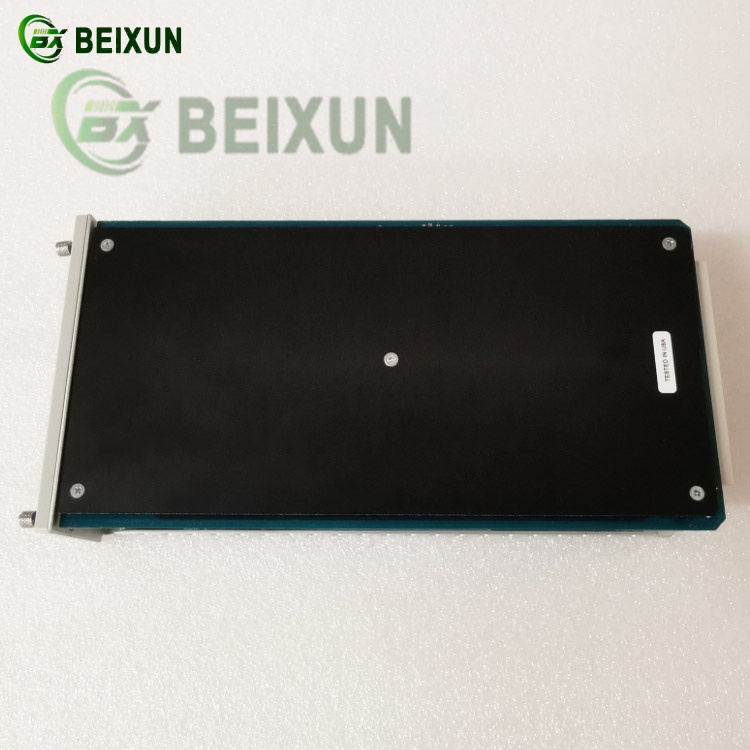

Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module
1. Overview
The 3500/15 106M1079-01 is a universal AC power supply module designed for the Bently Nevada 3500 Machinery Protection System.
It provides reliable power distribution to monitoring modules, ensuring continuous operation in critical industrial applications.
2. Key Functions & Features
Dual Redundant Power Supply:
Supports hot-swappable dual-module configuration for uninterrupted operation (primary + backup).
Either module can independently power the entire 3500 rack.
Wide Input Voltage Range:
Accepts 175–264V AC input, adaptable to varying industrial power conditions.
Converts to DC outputs (+8.5V, +21V) for 3500 series modules.
High Reliability & Protection:
Built-in overcurrent/overvoltage/over-temperature protection safeguards connected devices.
Operates in harsh environments (-40°C to +70°C) with industrial-grade components.
Efficiency & Compatibility:
High conversion efficiency reduces energy consumption.
Compatible with all 3500 series modules (e.g., vibration monitors, relays).
3. Applications
Machinery Protection Systems: Powers vibration/temperature monitoring modules in turbines, compressors, and pumps.
Industrial Automation: Integrates with DCS/SCADA via 3500 communication gateways.
Predictive Maintenance: Supports Bently Nevada System 1® for data analysis.
4. Installation Notes
Must be installed in the leftmost slots of the 3500/05 rack.
Requires 3500 Configuration Software for setup.
