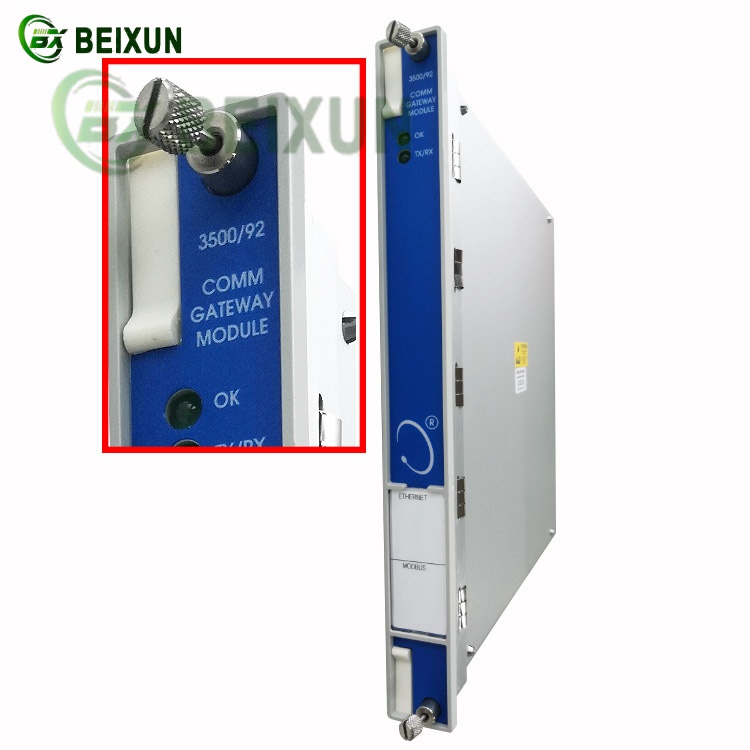

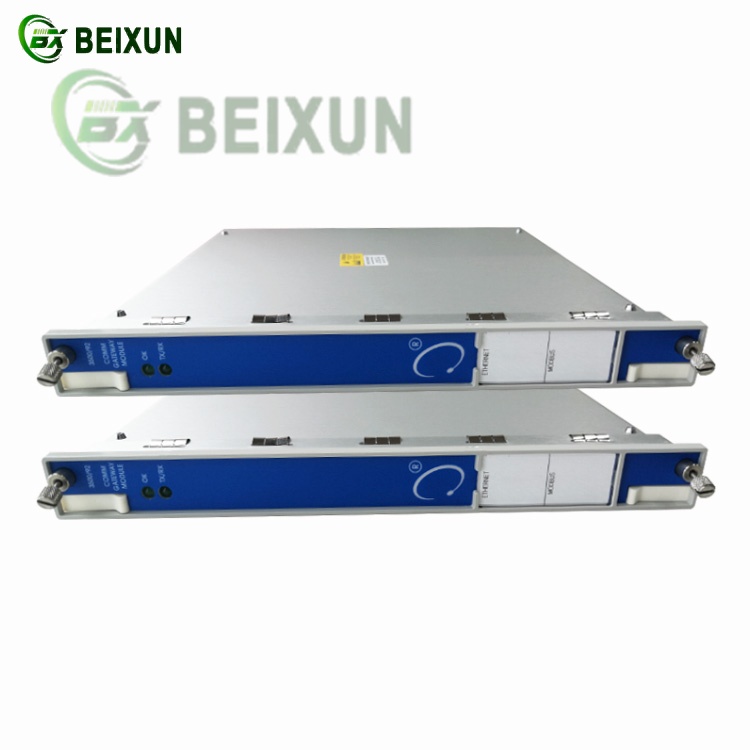

Bently Nevada 3500/92-04-01 Comm Gateway Module (3900/92)
1. Overview
The Bently Nevada 3500/92-04-01 (also labeled 3900/92) is a communication gateway module designed for the 3500 Machinery Protection System.
It enables real-time data integration between the 3500 monitoring system and external control/analysis platforms (e.g., DCS, PLC, SCADA).
2. Key Functions & Features
Multi-Protocol Communication:
Supports Modbus TCP/IP, Modbus RTU (RS232/RS422/RS485), and proprietary Bently Nevada protocols for seamless integration with industrial automation systems.
Transmits vibration, speed, temperature, and other machinery parameters to upstream systems (e.g., System 1®, DCS).
Data Processing & Conversion:
Converts raw 3500 system data into standardized formats (e.g., Modbus registers) for external devices.
Provides real-time data streaming with low latency (<10ms) for critical monitoring.
Flexible Connectivity:
Ethernet (RJ-45) and serial ports (RS232/RS422/RS485) for diverse industrial networks.
Hot-swappable design for maintenance without system downtime.
Industrial Reliability:
Operates in -30°C to +65°C environments with dual Ethernet ports (optional redundancy).
Complies with API 670 for machinery protection standards.
3. Applications
Remote Monitoring: Streams data to SCADA/DCS for centralized diagnostics.
Control Integration: Triggers PLC/DCS actions (e.g., shutdowns) based on 3500 alarm signals.
Data Logging: Exports to Bently Nevada System 1® for long-term trend analysis.
