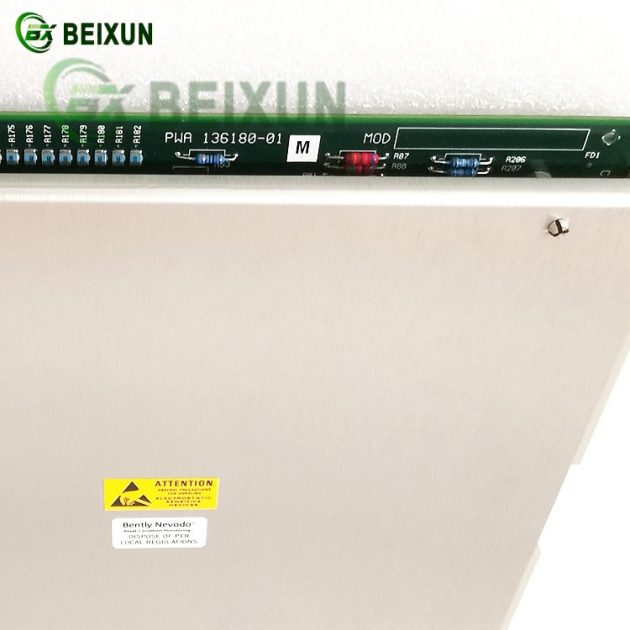

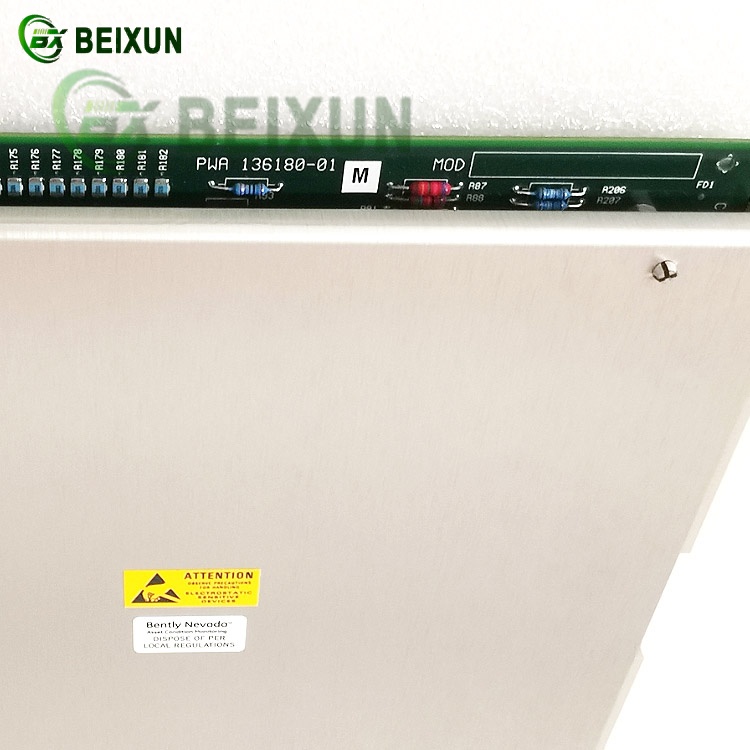

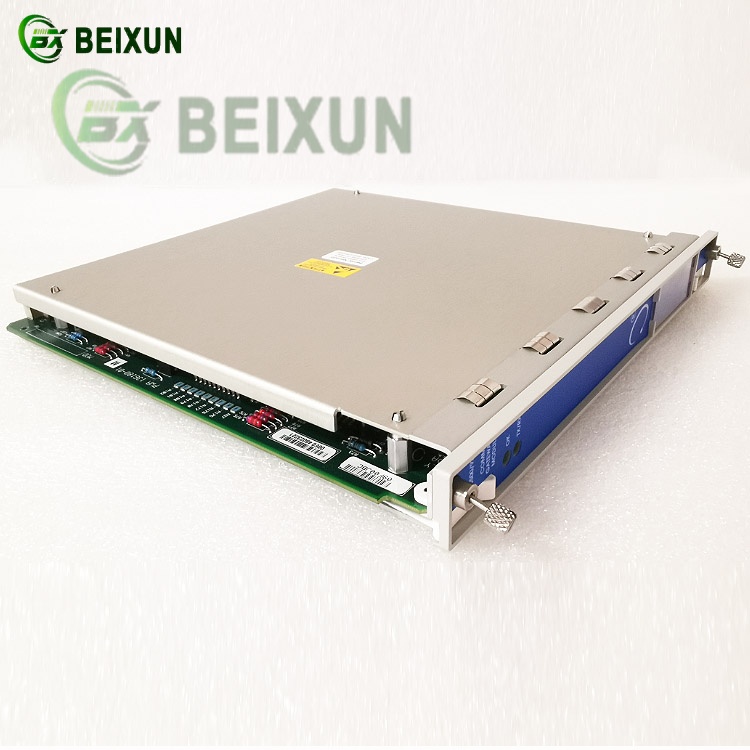

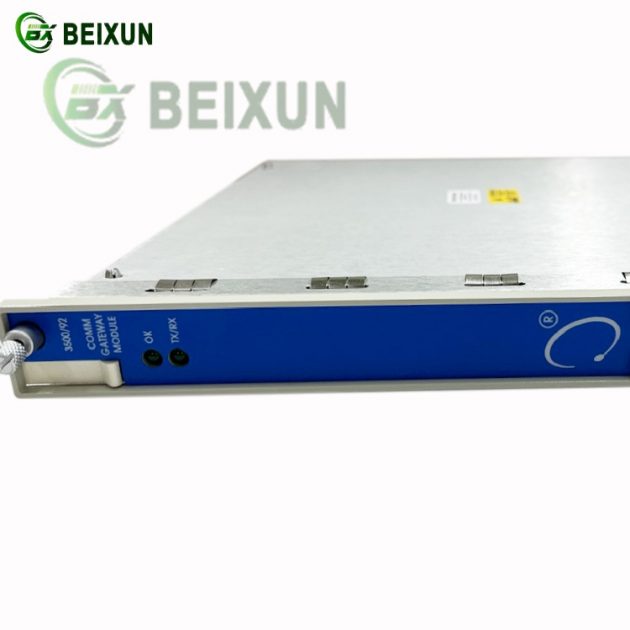

The BENTLY NEVADA 3500/92 136180-01 Communication Gateway Module is a critical component in industrial monitoring systems, designed to bridge data between the 3500 series monitoring framework and external control networks.
Its core functions include:
1. Protocol Conversion & Data Integration
Converts native 3500 system data (vibration, temperature, alarms) into standard industrial protocols like Modbus TCP/IP, Ethernet TCP/IP, and serial RS-232/RS-422/RS-485 for seamless integration with DCS, SCADA, or PLC systems.
Supports Bently Nevada proprietary protocols for direct communication with 3500 configuration software.
2. Remote Monitoring & Configuration
Enables real-time remote access to equipment status and alarms via RJ-45 Ethernet (10BASE-T) or serial ports, reducing on-site maintenance needs.
Allows remote parameter adjustments and firmware updates through compatible software tools.
3. Industrial Network Compatibility
Integrates with process control systems (e.g., GE Mark VIe) and asset management platforms for predictive maintenance and centralized data visualization.
Features dual-channel redundancy for fail-safe communication in high-availability environments.
4. Key Applications
Power plants: Turbine/compressor health monitoring.
Oil & gas: Pump/compressor vibration and temperature data transmission to DCS.
Manufacturing: Integration with HMIs for real-time equipment diagnostics.
5. Physical & Operational Specs

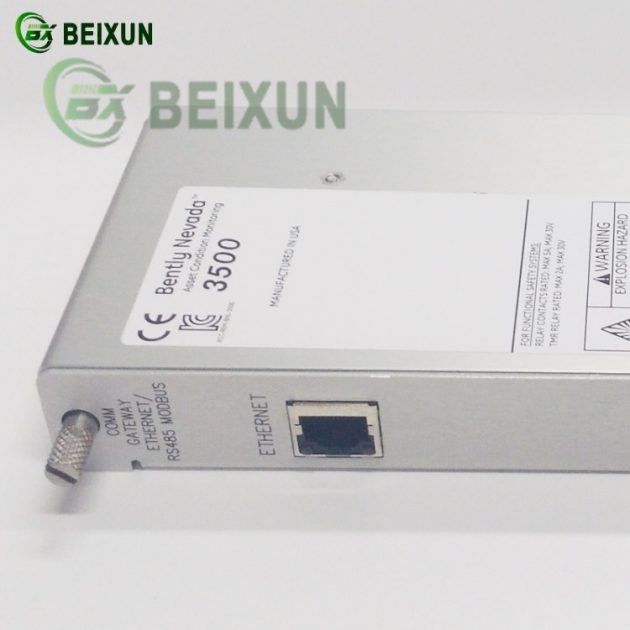

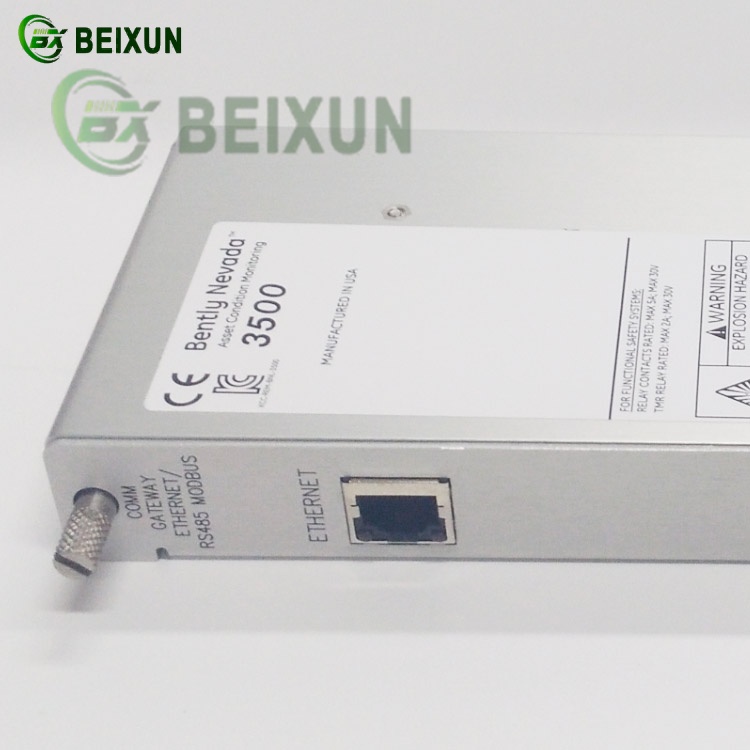

Connectors: RJ-45 (Ethernet), screw terminals (serial).
Operating temperature: -30°C to +65°C (-22°F to +149°F).

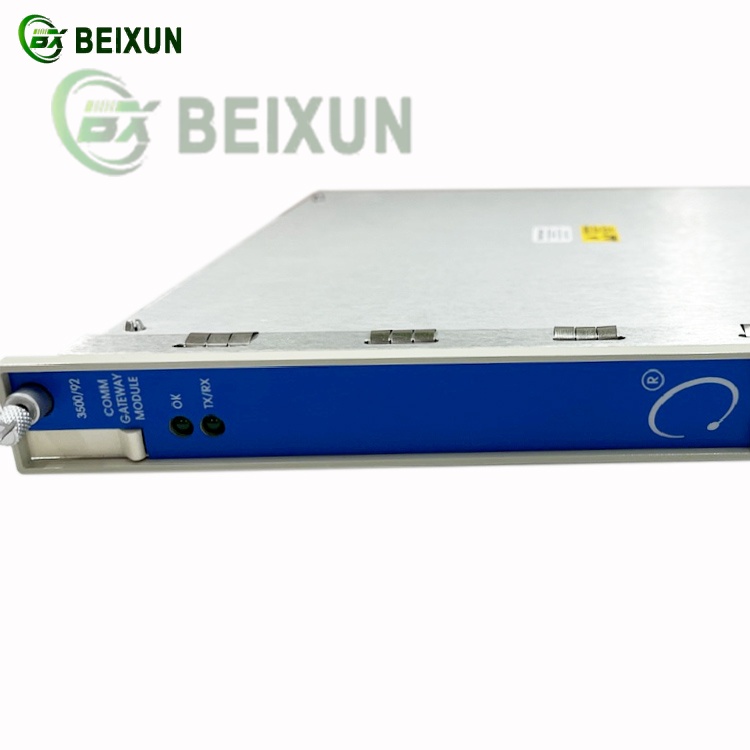

Front-panel LEDs: Status indicators for power, communication, and faults.
This module ensures reliable, high-speed data exchange while maintaining compliance with industrial standards like API 670.
