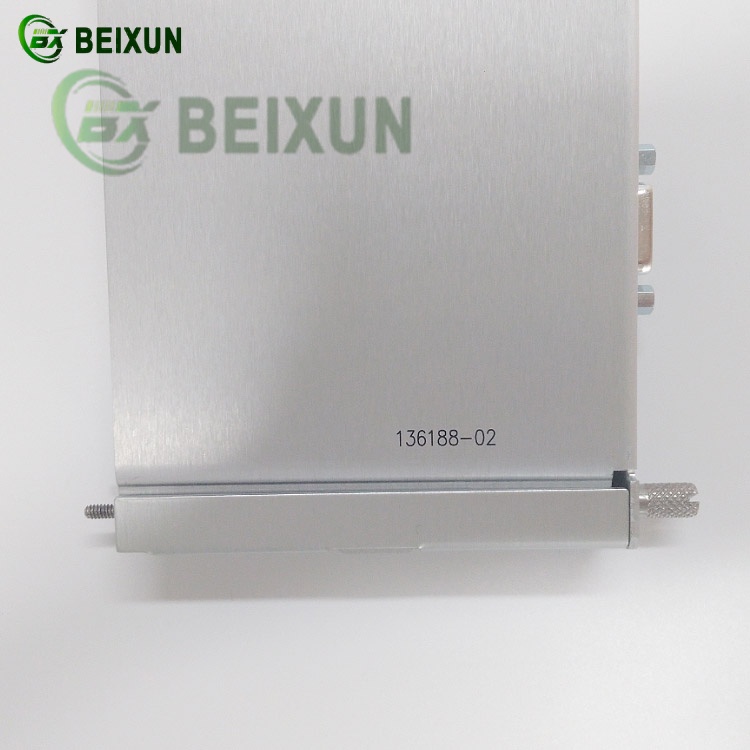

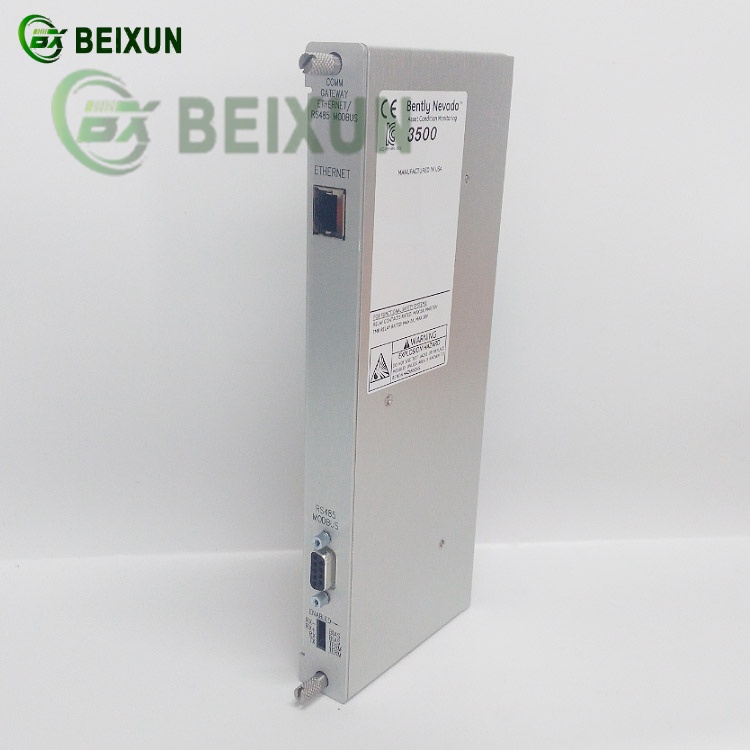

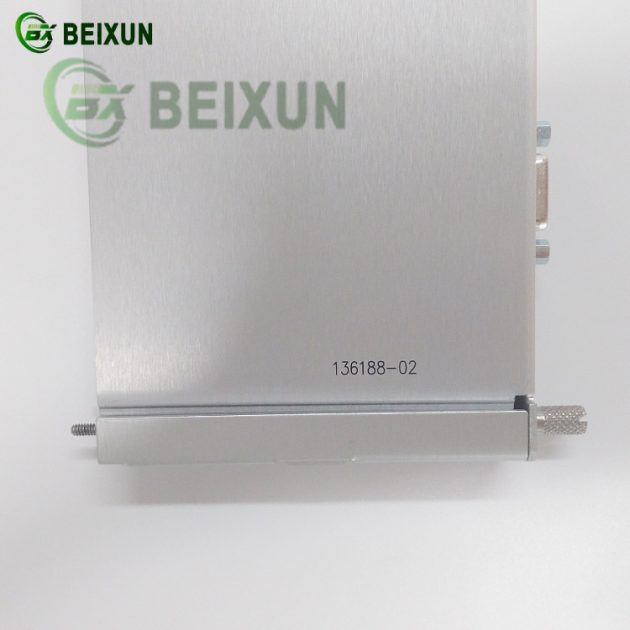

The BENTLY NEVADA 3500/92 136188-02 Communication Gateway Module is a versatile industrial interface designed to integrate the 3500 monitoring system with external control networks.
Its primary roles include:
1. Protocol Conversion & Data Bridging
Translates 3500 system data (vibration, temperature, alarms) into Modbus TCP/IP, Ethernet TCP/IP, and serial RS-232/RS-422/RS-485 protocols for seamless integration with DCS, SCADA, or PLC systems.
Supports Bently Nevada proprietary protocols for direct communication with 3500 configuration tools.
2. Remote Monitoring & Control
Enables real-time remote access to equipment status via 10BASE-T Ethernet (RJ-45) or serial ports, reducing on-site intervention.
Facilitates remote parameter configuration and firmware updates.
3. Industrial Network Integration
Compatible with Modicon Modbus, Modbus/TCP, and OPC UA for interoperability with diverse automation platforms (e.g., Siemens, Schneider PLCs).
Features dual-channel redundancy for fail-safe communication in critical environments.
4. Key Applications
Power plants: Turbine/compressor health monitoring.
Oil & gas: Real-time pump/compressor data transmission to DCS.
Nuclear/chemical: Secure, encrypted data exchange for safety-critical systems.
5. Technical Specifications
Input power: 5W (RS-232/422), 5.6W (RS-485).
Operating range: -30°C to +65°C.
Front-panel LEDs: Status indicators for power, communication, and faults.
This module enhances system reliability by combining high-speed data exchange with industrial-grade robustness.
