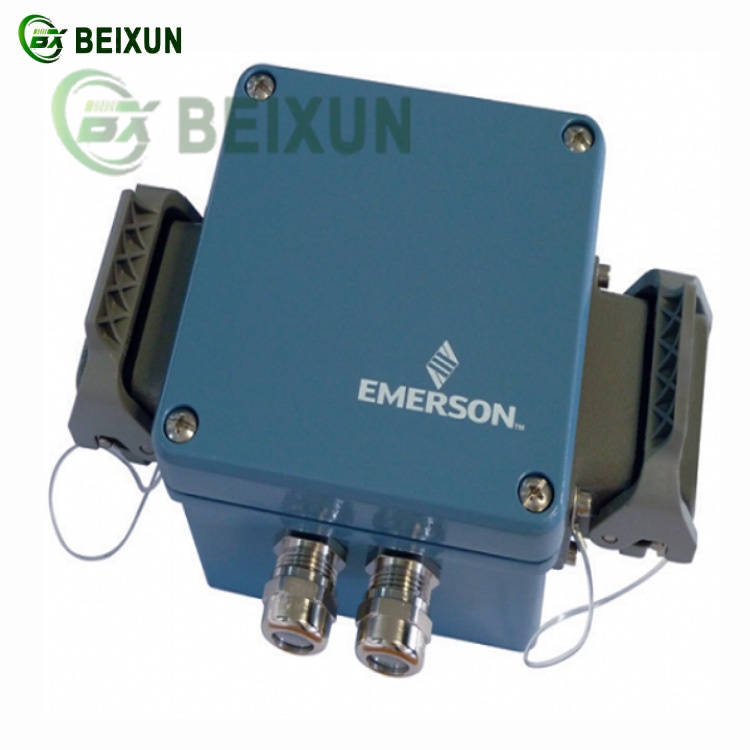

EMERSON A3120/022-000 Vibration Controller

Core Functions of EMERSON A3120/022-000 Vibration Controller

1. Vibration Monitoring & Signal Processing‌

Data Acquisition & Conversion‌: Receives analog signals (e.g., shaft vibration, displacement) from sensors (e.g., EPRO eddy current probes) and converts them into digital data for system analysis.
Dynamic Parameter Adjustment‌: Monitors equipment vibration in real time and adjusts operational parameters (e.g., motor speed, load distribution) to suppress abnormal vibrations.

2. Redundant Design & Fault Tolerance‌

Dual Power Supply‌: Supports redundant DC 9–36V input to ensure continuous operation during power failures.
Modular Redundancy‌: Allows dual- or triple-redundant configurations, enabling automatic failover to backup modules to prevent downtime.

3. System Protection & EMI Resistance‌

Electrical Safeguards‌: Features DC1500V isolation and reverse-polarity protection to prevent damage from voltage fluctuations or wiring errors.
Anti-Interference Optimization‌: Shields against electromagnetic interference (EMI) and stabilizes signal sampling in harsh industrial environments.

4. Industrial Environment Adaptability‌

Wide Temperature Range‌: Operates reliably in 0°C–60°C environments, suitable for high-vibration applications like turbines or compressors.
Low Power Consumption‌: Consumes less than 4W, reducing energy demands and thermal stress.

5. Diagnostic & Alarm Integration‌

Fault Alerts‌: Triggers relay alarms for fiber optic link or power failures, with contacts rated for DC48V/1A load handling.

Key Applications‌

Rotating Machinery Protection‌: Monitors shaft vibration in turbines, compressors, or generators to activate shutdown protocols and prevent mechanical damage.
Power System Optimization‌: Coordinates with excitation systems to stabilize grid performance and enhance motor dynamics.

Combining ‌high-precision vibration analysis, redundant fault tolerance, and industrial-grade durability‌, the A3120/022-000 serves as a critical component in Emerson’s solutions for mission-critical automation and equipment protection.
