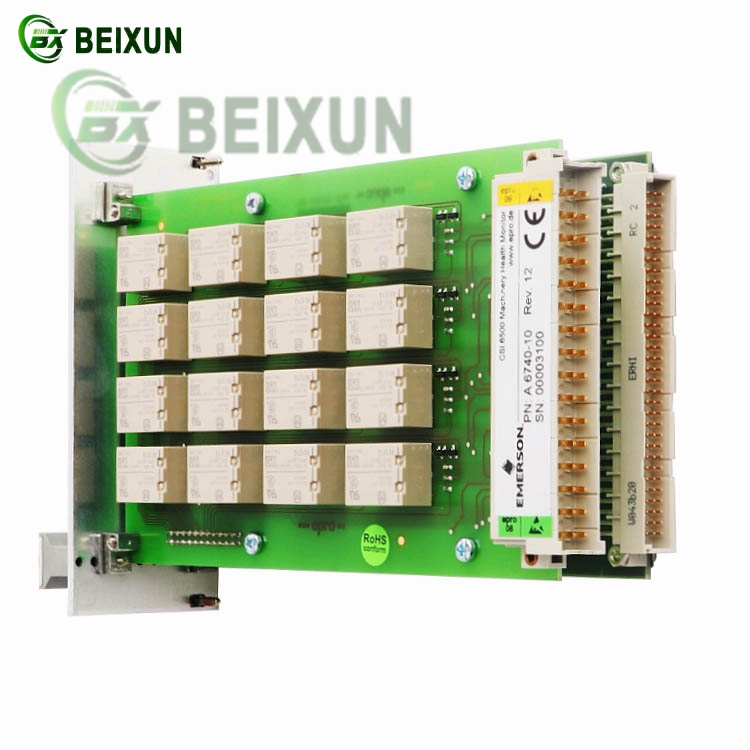

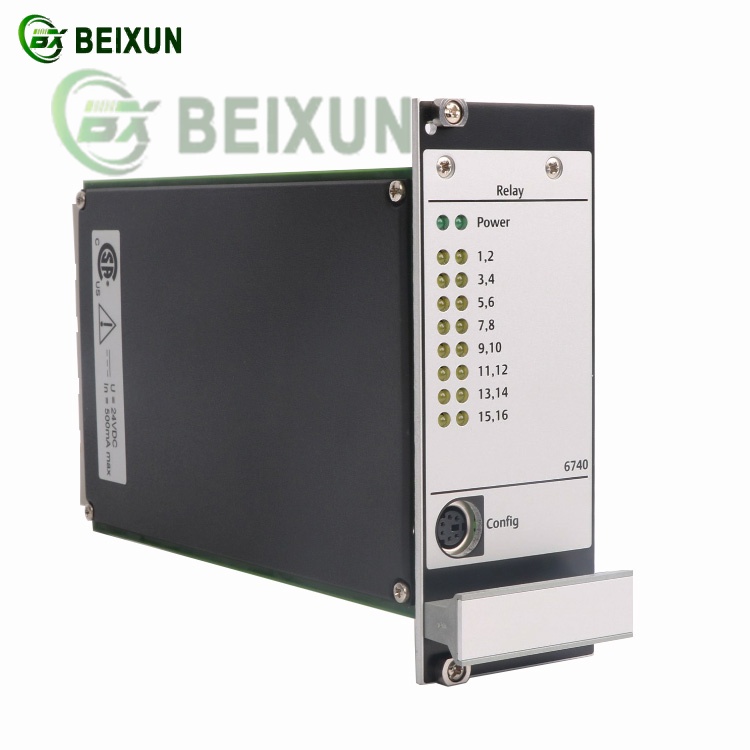

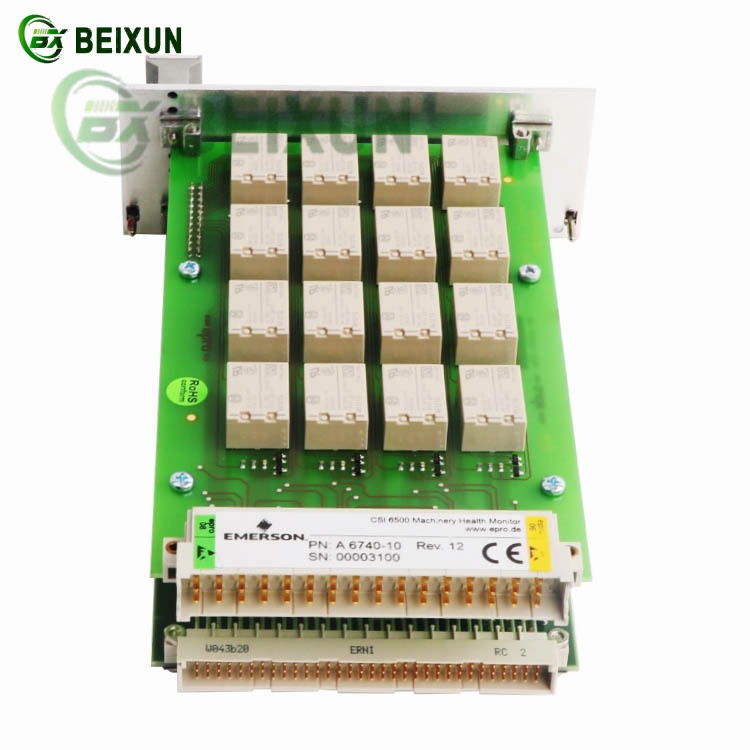

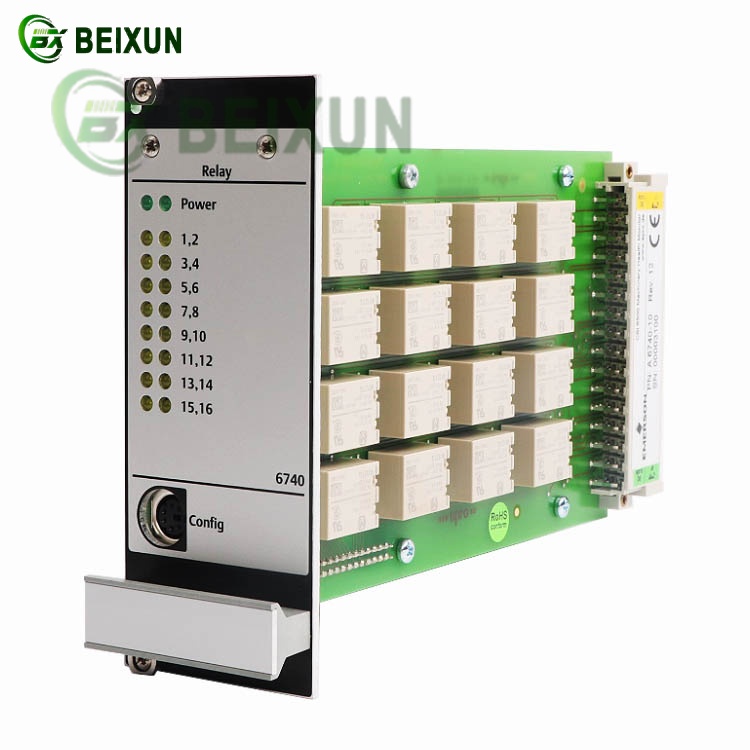

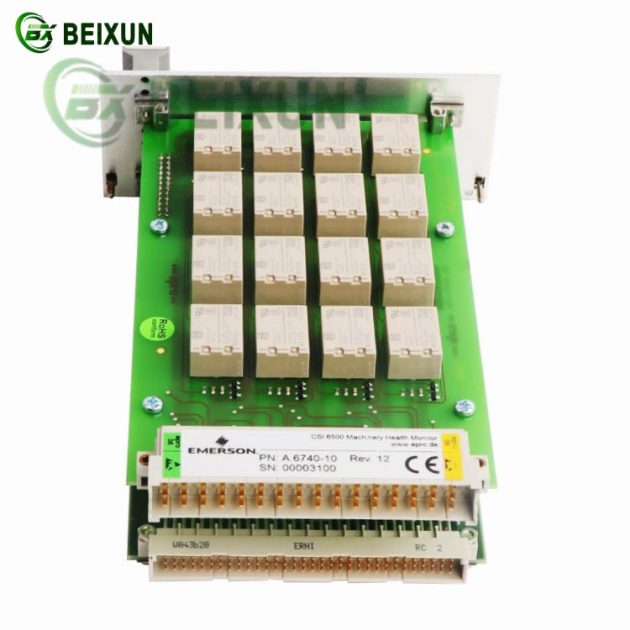

The Emerson A6740-10 (9199-00091) 16-Channel Relay Card (10TE) is a high-density relay output module designed for critical machinery protection and control systems.
1. Key Functions
Relay Outputs:
Provides 16 configurable SPDT (Form C) relay channels for alarm/trip signaling in safety-critical applications.
Logic Control:
Supports 30 programmable logic expressions for custom relay activation based on input conditions.
Hot-Swap Capability:
Designed for hot-swappable operation in IMR6500 series racks (10TE width).
Integration:
Compatible with AMS 6500 systems to form API 670-compliant machinery protection solutions.
2. Technical Specifications
Relay Ratings:
Contact Type: SPDT (1NO + 1NC per channel).
Load Capacity: 2A @ 48V AC or 32V DC.
Inputs: Accepts 60 digital inputs for logic triggering.
Form Factor: 10TE width module (optimized for IMR6500 racks).
3. Applications
Power Generation: Turbine overspeed/trip systems.
Oil & Gas: Compressor and pump safety shutdowns.
Industrial Automation: SIL-rated redundant control systems.
