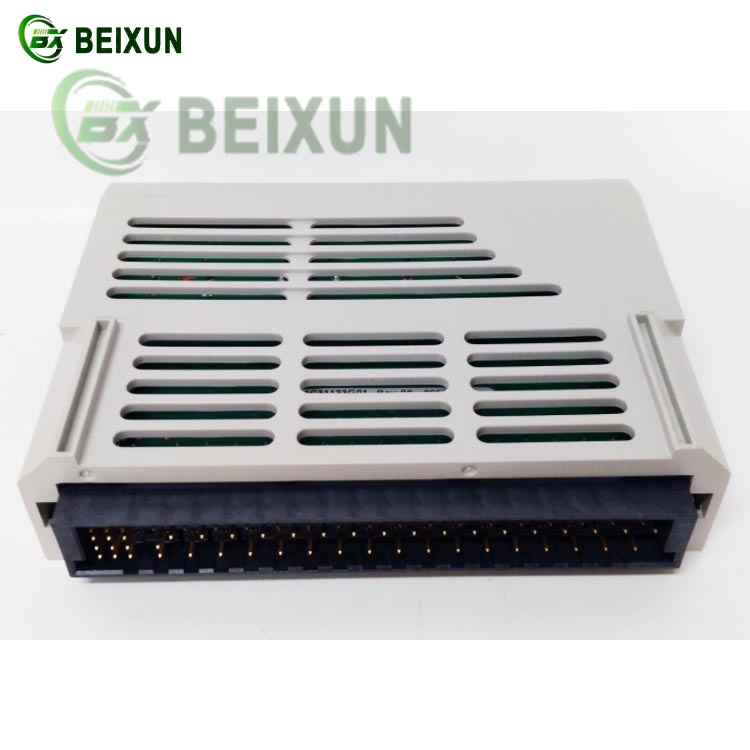

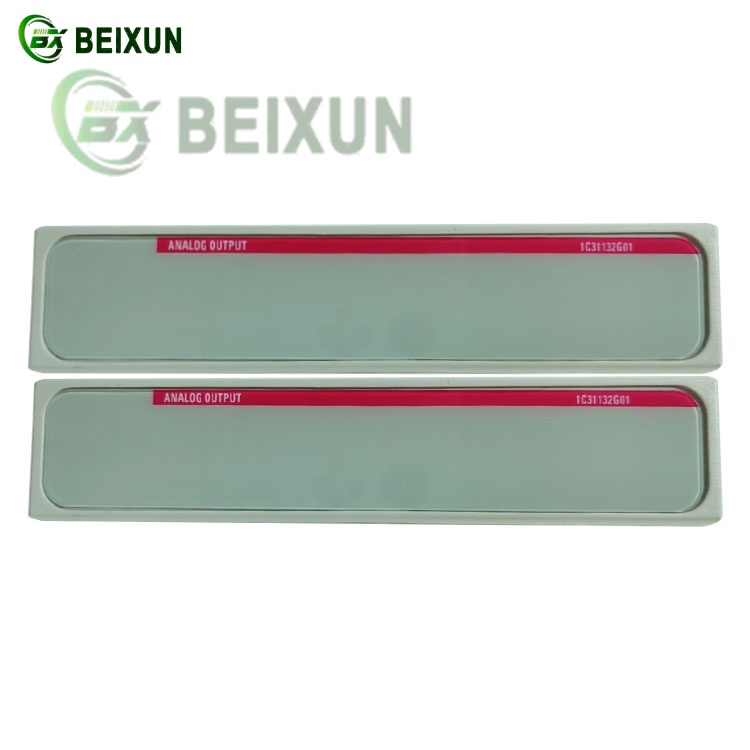

EMERSON Ovation 1C31132G01 Analog Output Module

EMERSON Ovation 1C31132G01 Analog Output Module‌

Function:‌

This module serves as an 8-channel isolated analog output card for Emerson’s Ovation DCS, providing precise 4-20mA current loop control signals to field devices.

Key Features:‌

High-accuracy 16-bit DAC (Digital-to-Analog Converter)
Individual channel isolation (500VAC)
Supports HART communication protocol
On-board diagnostics for fault detection
Hot-swappable for online maintenance
Redundant power supply support

Technical Specifications:‌

Output range: 4-20mA (programmable)
Load capacity: 0-750Ω per channel
Update rate: 10 updates/second per channel
Operating temperature: -40°C to +70°C

Applications:‌

Control valve positioning
Variable frequency drive control
Process parameter regulation in:
Power generation plants
Oil & gas facilities
Chemical processing units
