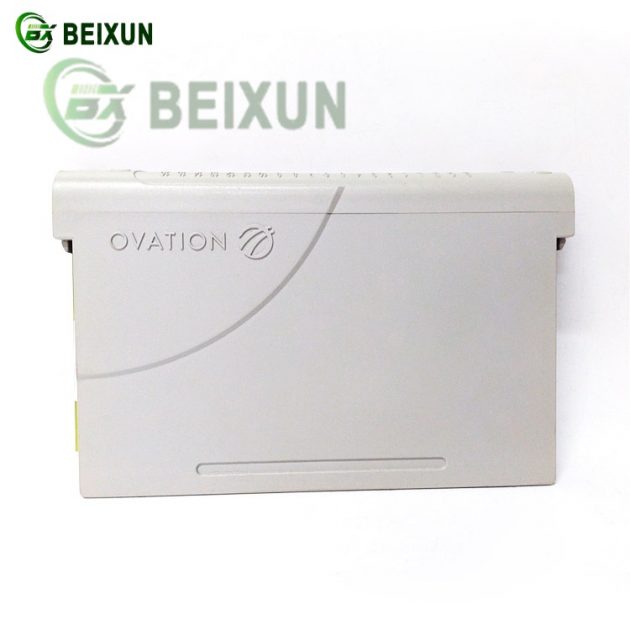

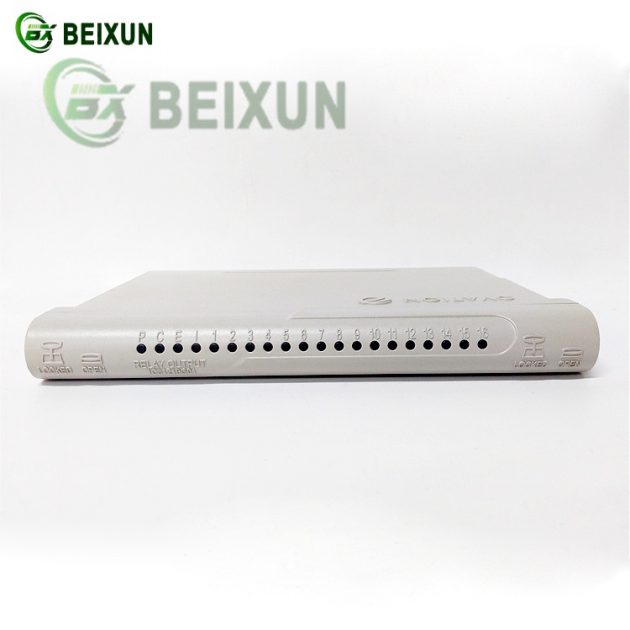

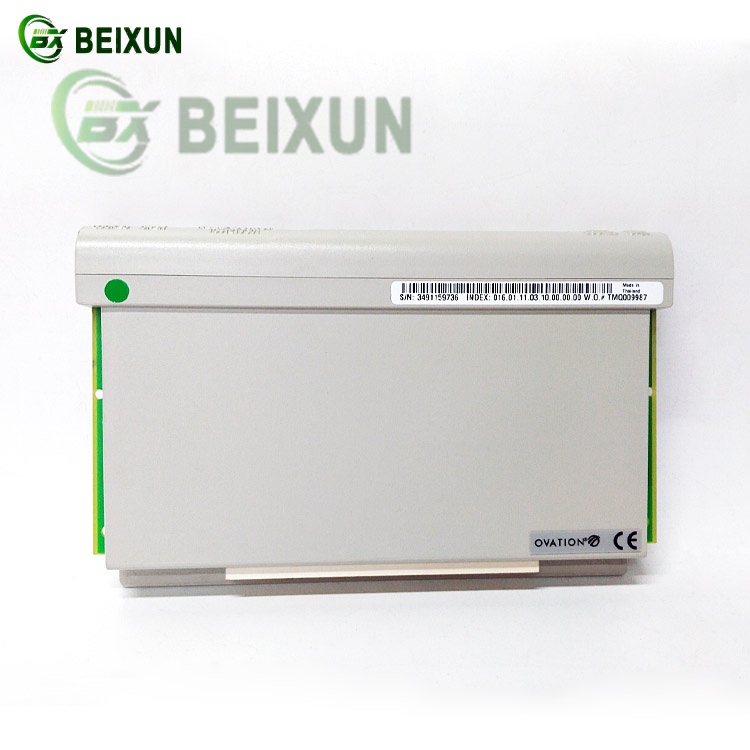

The EMERSON Ovation 1C31219G01 Relay Output Module is a 16-channel digital output module designed for industrial automation and process control within the Ovation DCS (Distributed Control System).
Below are its key functions and technical specifications:
1. Core Functions:
Signal Conversion & Control:
Converts digital logic signals from the Ovation controller into physical relay contacts to drive external devices (e.g., valves, motors, alarms).
Supports 24 VDC output with a maximum current of 5A per channel for high-power load switching.
Industrial Reliability:
Built with IP66-rated enclosures (aluminum alloy) for durability in harsh environments (-40°C to +70°C).
Features electrical isolation (1500 Vrms) to prevent interference and ensure stable operation.
Integration & Flexibility:
Compatible with Ovation DCS for seamless communication and remote diagnostics.
Modular design allows easy installation, replacement, and expansion.
2. Applications:
Process Industries: Controls pumps, valves, and heaters in chemical, power, and oil/gas plants.
Safety Systems: Activates alarms or emergency shutdowns in critical scenarios.
Facility Automation: Manages HVAC, lighting, and traffic control systems.
3. Technical Specifications:
Channels: 16 isolated relay outputs.
Switching Speed: <10 ms (typical).
Communication Protocols: Ovation-native protocols (e.g., Modbus via gateway).
