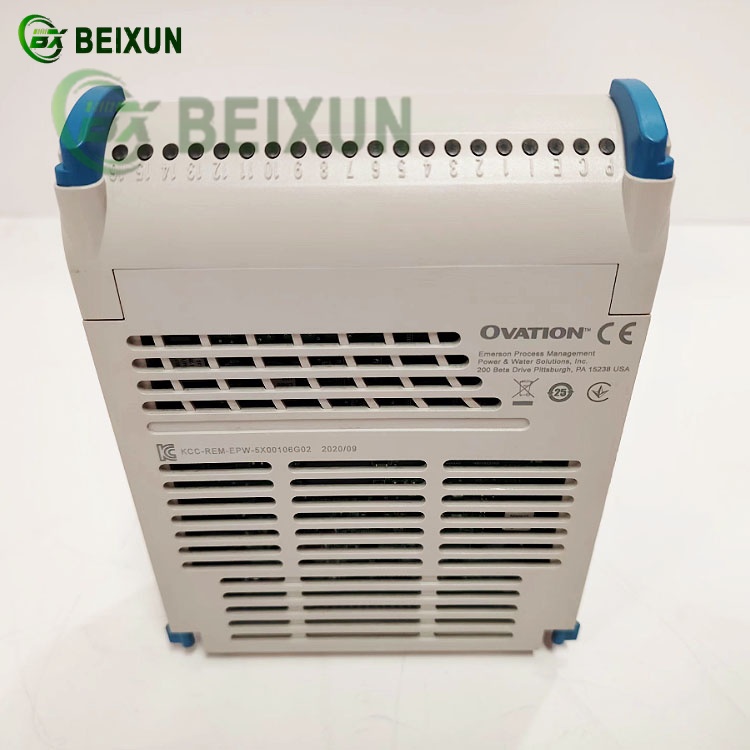

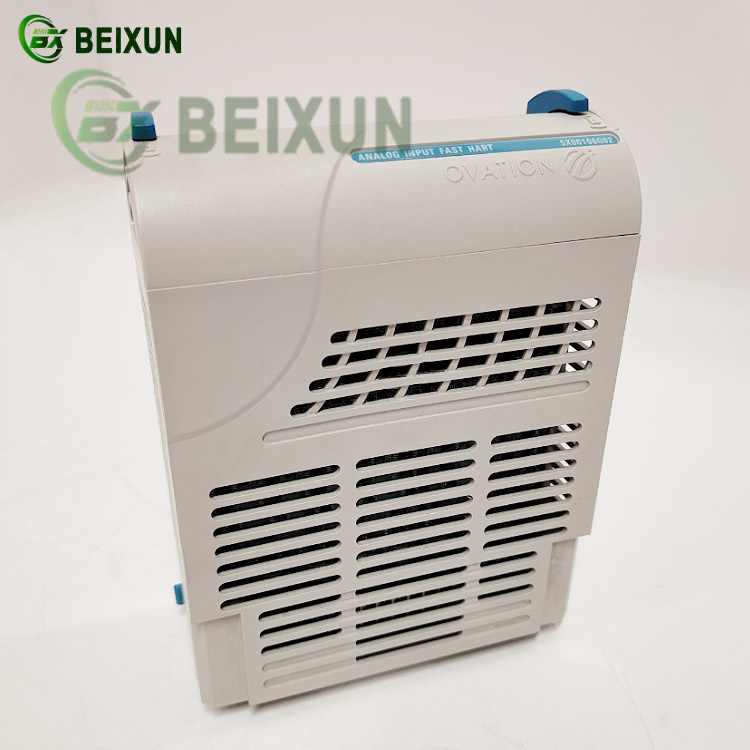

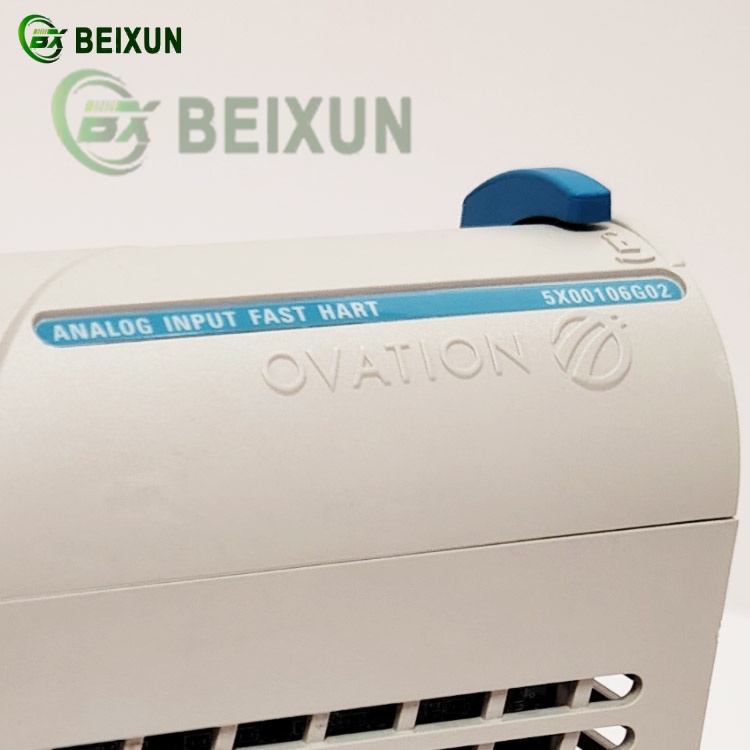

EMERSON Ovation 5X00106G02 Analog Input Fast Hart Module

EMERSON Ovation 5X00106G02 Analog Input Fast HART Module‌

Function:‌

A ‌high-speed, HART-enabled analog input module‌ for Emerson’s ‌Ovation DCS‌, designed to ‌acquire process variables (4-20mA) while simultaneously communicating with HART field devices‌—enabling ‌real-time data and diagnostics‌ without separate wiring.

Key Features:‌

8-channel isolated analog input‌ (4-20mA) with ‌HART 7 protocol support‌
Dual-functionality:‌
Process variable measurement‌ (16-bit ADC, ±0.1% accuracy)
HART digital communication‌ (device configuration, diagnostics, calibration)
Fast scan rate‌ (optimized for critical control loops)
Built-in HART multiplexer‌ (eliminates external hardware)
Hot-swappable‌ (supports online maintenance)
Ovation DCS integration:‌
Configurable via ‌Ovation Developer Studio‌
Supports ‌HART DD (Device Description) files‌ for field device interoperability

Applications:‌

Smart transmitter interfacing‌ (pressure, temperature, flow)
Predictive maintenance‌ (accessing HART device diagnostics)
Power plant control systems‌ (boiler control, turbine monitoring)
Oil & gas/chemical process automation‌

A ‌cutting-edge solution‌ for integrating ‌HART-enabled field devices‌ into DCS control strategies with minimal latency.
