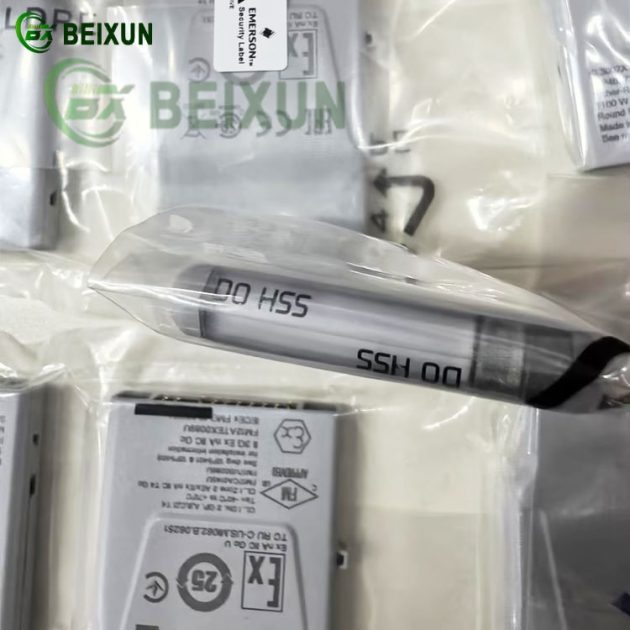

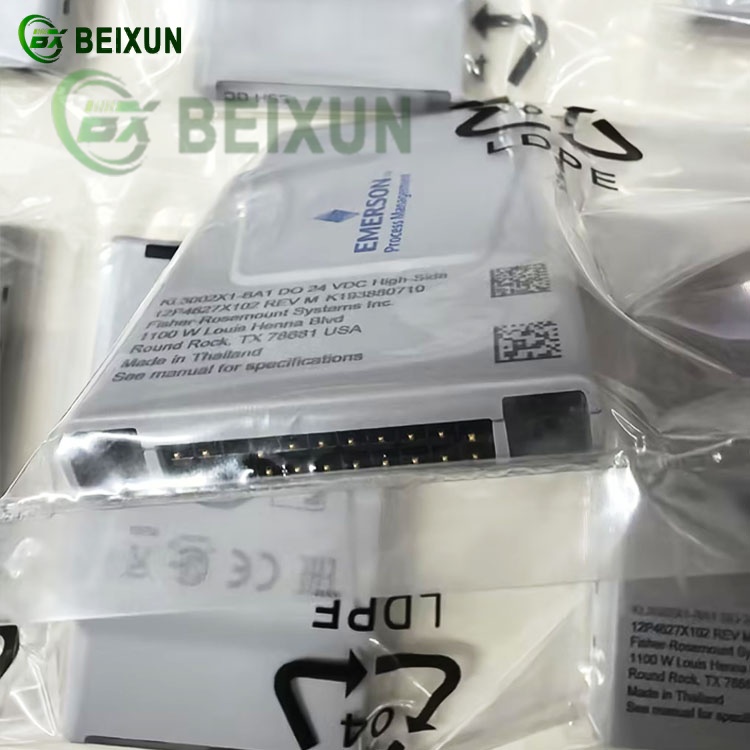

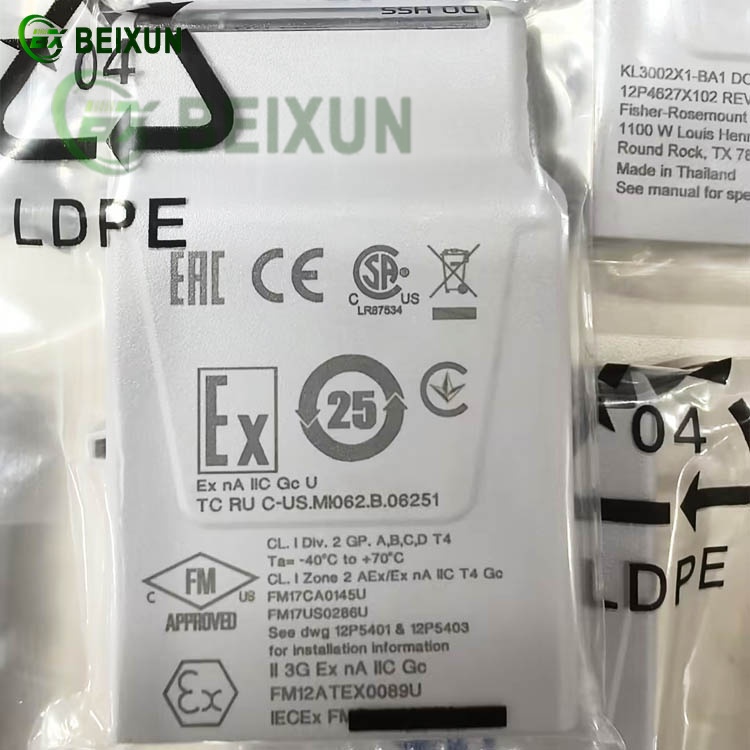

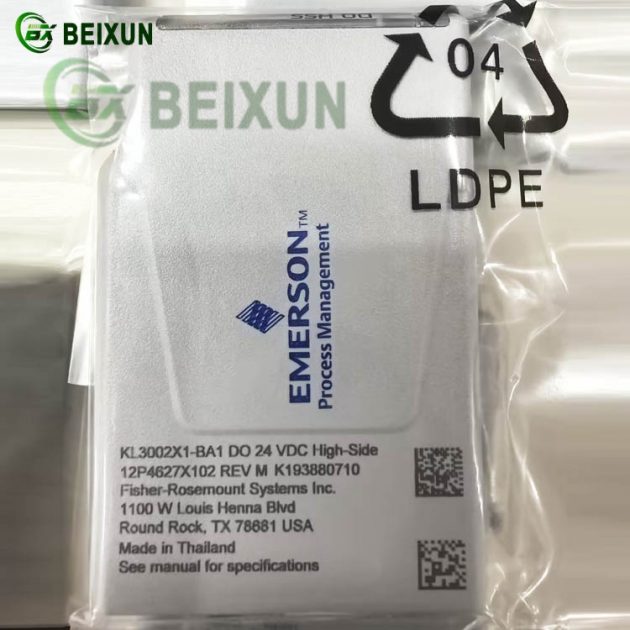

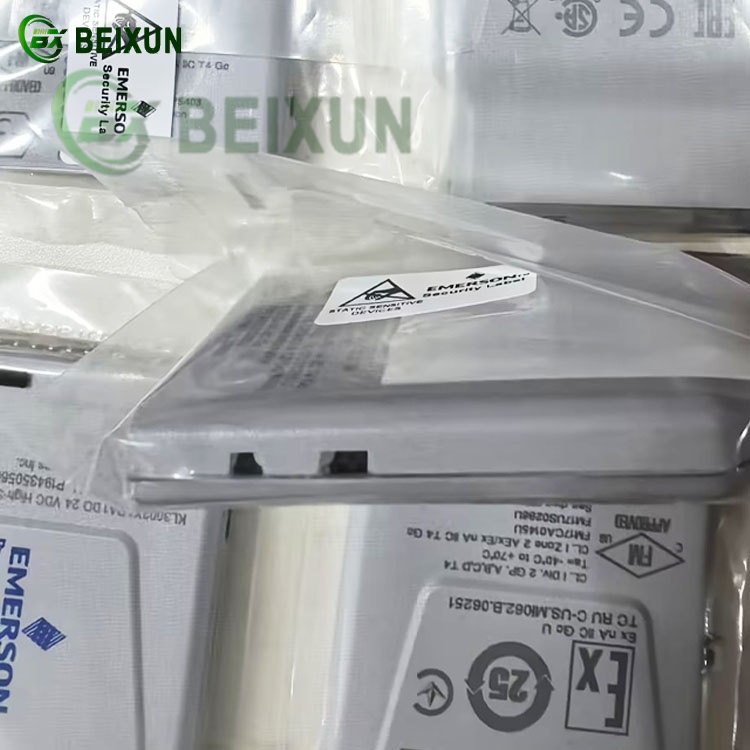

The Emerson SE4302T01 KL3002X1-BA1 is a 24 VDC High-Side Digital Output (DO) module primarily used in industrial automation systems, particularly within Emerson’s DeltaV or Ovation control platforms.
Here’s a detailed breakdown of its functions and applications:
1. Key Functions
High-Side Switching:
Controls 24 VDC loads (e.g., relays, valves, or pilot lamps) by sourcing power from the positive side, enabling flexible circuit design and simplified wiring in industrial applications.
Industrial-Grade Reliability:
Built for harsh environments with robust electrical isolation, ensuring stable performance in process control, manufacturing, and power distribution systems.
Seamless System Integration:
Compatible with Emerson’s DeltaV/Ovation networks, supporting real-time communication with PLCs and distributed control systems (DCS).
Applications:
Actuator control (e.g., solenoid valves), alarm activation, and safety interlocks in industries such as oil & gas, water treatment, and chemical processing.
2. Technical Highlights
High-density channel design for efficient I/O expansion.
Real-time diagnostics to detect faults like wire breaks or short circuits.
Compact form factor for space-constrained control cabinets.
