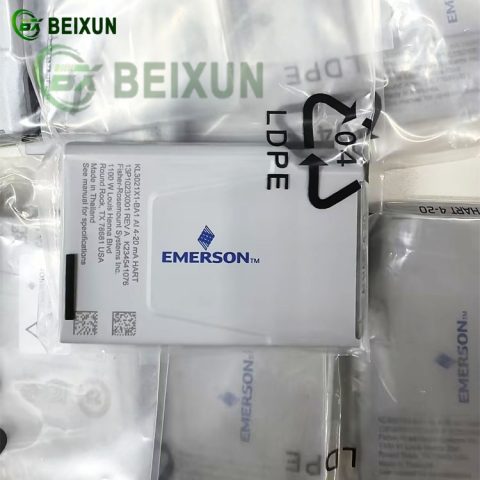

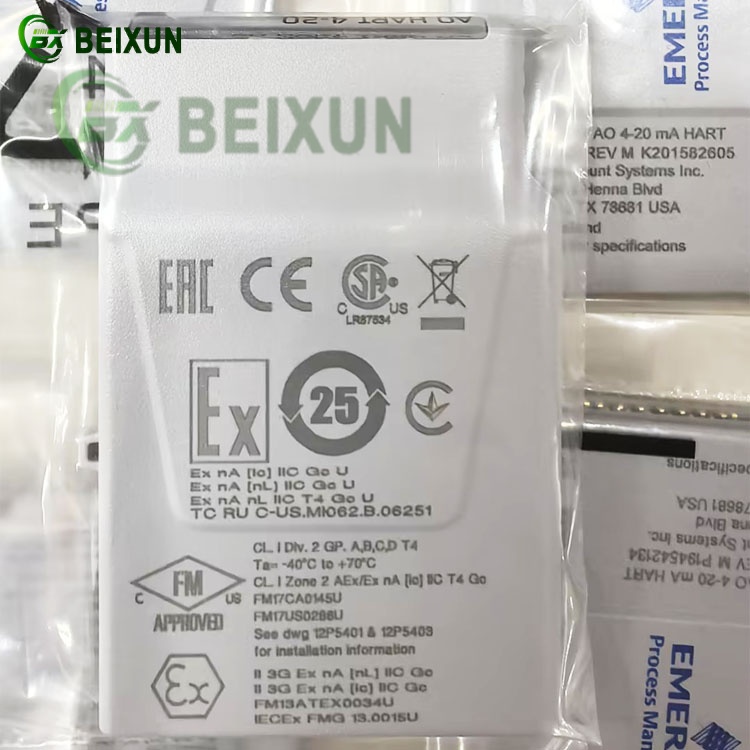

The Emerson SE4304T01 KL3022X1-BA1 is a 4-20 mA Analog Output (AO) module with HART protocol support, designed for industrial automation systems, particularly within Emerson’s DeltaV control platform.
Here’s its key functionality and applications:
1. Key Functions
Analog Signal Generation:
Converts digital control signals into 4-20 mA current outputs for driving field devices (e.g., valves, actuators, or process transmitters).
HART Protocol Integration:
Supports bidirectional HART communication, enabling remote device configuration, diagnostics, and real-time parameter monitoring over the same 4-20 mA loop.
Industrial-Grade Performance:
Features high accuracy (typically ±0.1% of span) and channel isolation to ensure reliable operation in harsh environments.
System Integration:
Compatible with DeltaV networks, allowing seamless integration into distributed control systems (DCS) for process automation.
2. Typical Applications
Process control loops (e.g., flow, pressure, or temperature regulation).
Smart device management via HART-enabled field instruments.
Industrial automation in sectors like oil & gas, chemical processing, and power generation.
3. Technical Highlights
Hot-swappable design for minimal downtime.
Enhanced diagnostics to detect faults like wire breaks or signal drift.
