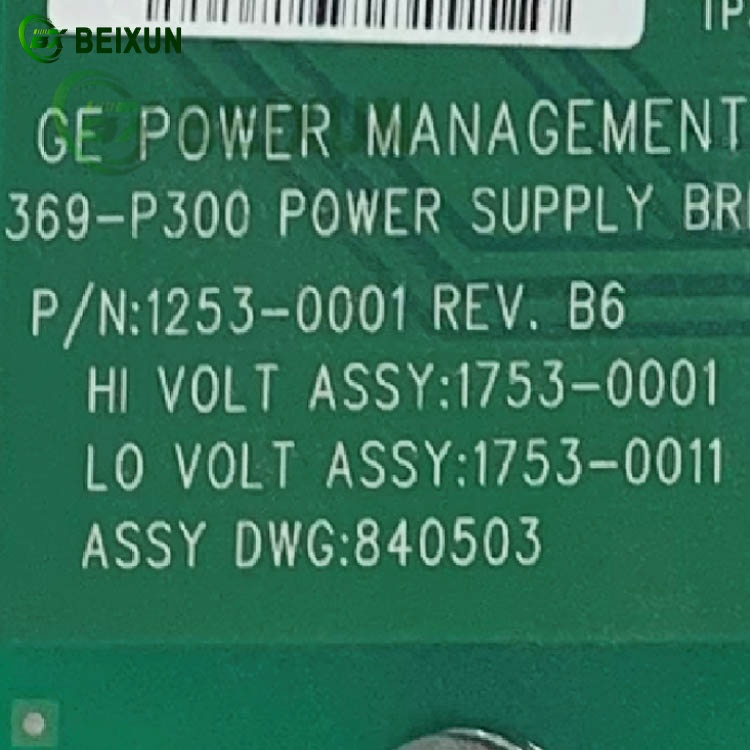

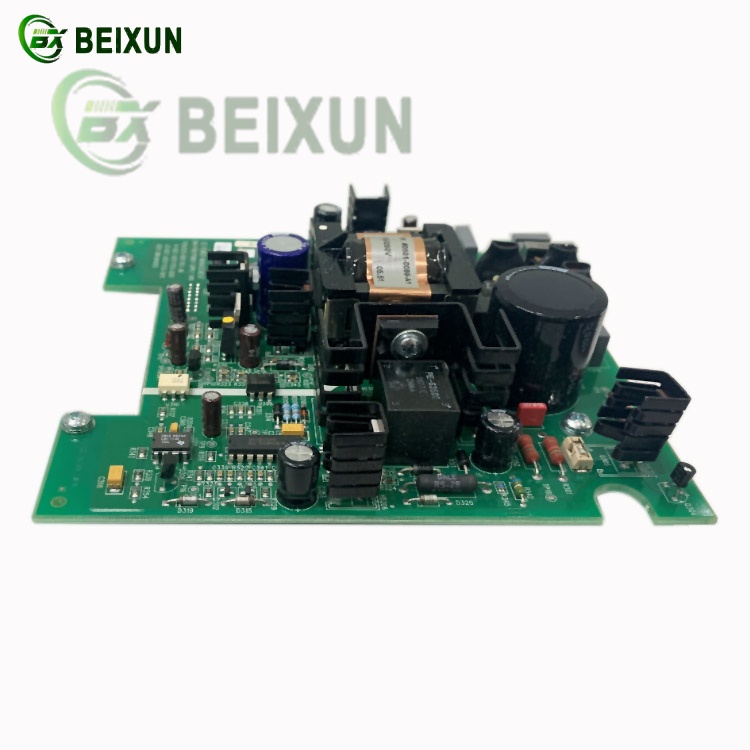

GE 369-P300 Power Supply Board Functional Overview
1. Core Functions
Multi-Stage Power Conversion & Distribution:
Provides stable DC power input (24–90 VDC) for industrial motor control systems (e.g., GE 369 series motor management relays), supporting simultaneous power demands for logic modules and peripheral components.
Utilizes high-frequency switching technology with optimized PCB layout to minimize parasitic inductance and enhance conversion efficiency (typical improvement: 2.3%)^[5]**.
2. Protection & Reliability
Advanced Electrical Safeguards:
Integrated fuses (5A/2A ratings) and MOVs (Metal Oxide Varistors) to prevent overcurrent, surges, and voltage transients.
Temperature monitoring and heat dissipation design (e.g., 6×6 thermal via array) ensure stable operation in extreme temperatures (-40°C to 85°C).
EMI/EMC Compliance:
Implements grounding strategies and shielding structures (e.g., RC snubber circuits) to reduce EMI emissions (8dBμV/m reduction).
3. Hardware Integration
Modular Connectivity:
Features vertical pin connectors and plug-in terminals for seamless integration with turbine control modules (e.g., 531X303MCPBDG1) and motor protection units.
Hybrid Grounding System:
Stratified grounding topology (power/analog/digital grounds) minimizes common-mode noise (12dB reduction).
4. Application Scenarios
Industrial Motor Systems:
Powers GE 369 series relays (e.g., 369-HI-R-0-0-0-0-E) to sustain critical functions like motor health monitoring and fault waveform recording.
Gas Turbine Control Platforms:
Deployed in GE Speedtronic systems for redundant power supply configurations, ensuring fault tolerance in critical energy infrastructure.
This board exemplifies GE’s focus on high-reliability power solutions, combining efficient energy conversion, robust environmental adaptability, and multi-layered protection for industrial automation and energy systems.
