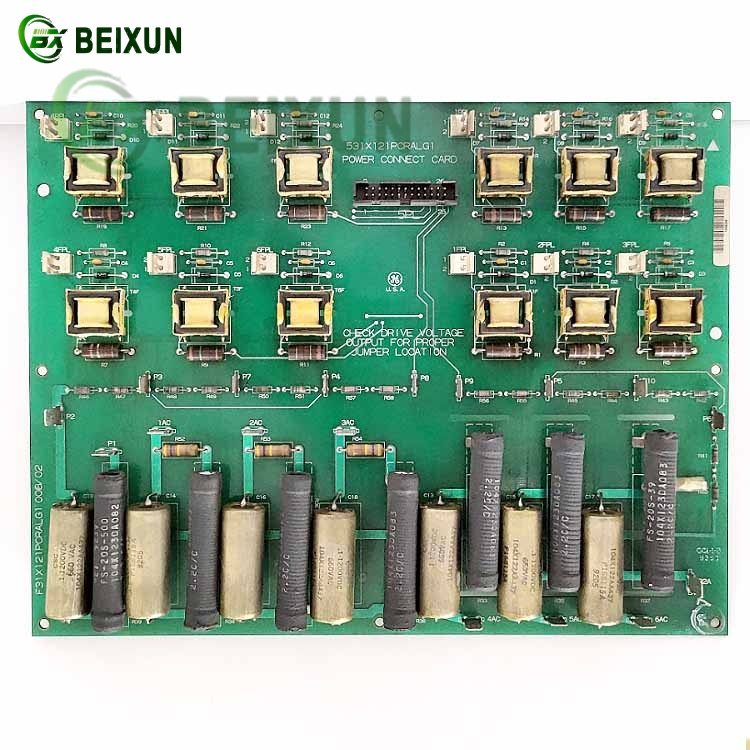

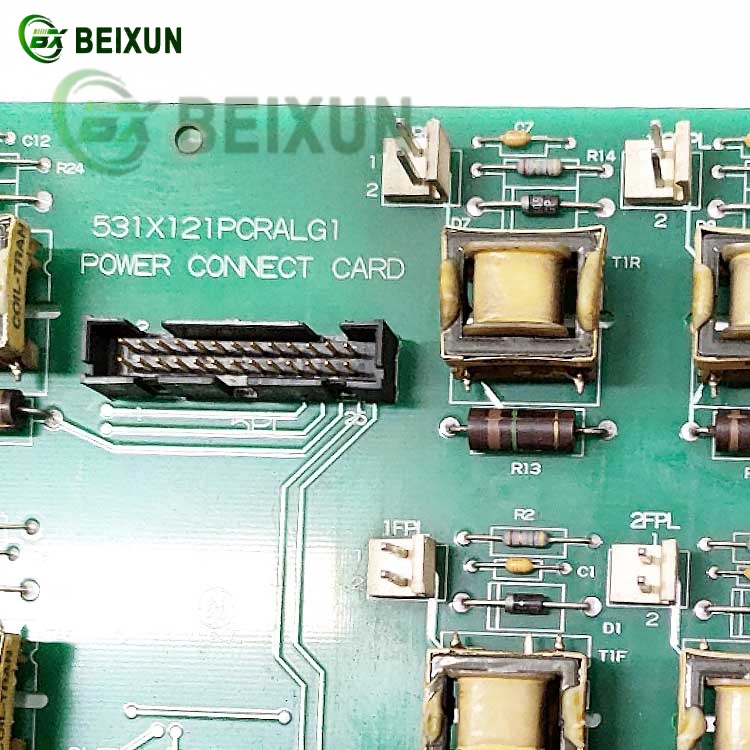

GE 531X121PCRALG1 F31X121PCRALG1 Power Connect Card Functional Overview
1. Core Functions
Power Distribution & Redundancy Management:
Serves as a critical component in GE Speedtronic gas turbine control systems, distributing DC power inputs (24–90 VDC) to control modules (e.g., 531X303MCPBDG1) and enabling dual redundant power configurations for uninterrupted operation.
Supports stable power delivery to logic modules, sensors, and actuators through multi-channel power conversion circuits.
Signal Routing & Isolation:
Provides electrically isolated communication interfaces to coordinate control signals (e.g., I/O, Modbus) between PLCs, drives, and turbine monitoring units, minimizing noise interference.
2. Protection & Reliability
EMI Suppression:
Incorporates shielding layers and RC snubber circuits to reduce high-frequency switching noise impact on sensitive control logic (typical EMI reduction: 8dBμV/m).
Fault Tolerance:
Integrates fuses and MOV protection to isolate overcurrent or voltage transient faults, preventing cascading system failures.
3. Hardware Integration
Modular Connectivity:
Features vertical pin connectors and DIN rail compatibility for rapid integration with GE turbine control cards (e.g., 531X series) and external PLC/DCS systems.
Environmental Resilience:
Designed for harsh industrial environments (operating range: -40°C to 85°C) with vibration-resistant structures, suitable for gas turbine compartments.
4. Application Scenarios
Gas Turbine Control Platforms:
Deployed in GE Speedtronic Mark VIe systems to ensure reliable power and signal relay for turbine speed regulation, fuel valve control, and safety interlocks.
Industrial Motor Control Systems:
Integrated into GE 369 series motor protection relays to manage power distribution and multi-device communication links (e.g., coordinating VFDs and servo drives).
This PCB exemplifies GE’s focus on high-reliability power and signal management, tailored for mission-critical energy and industrial automation systems.
