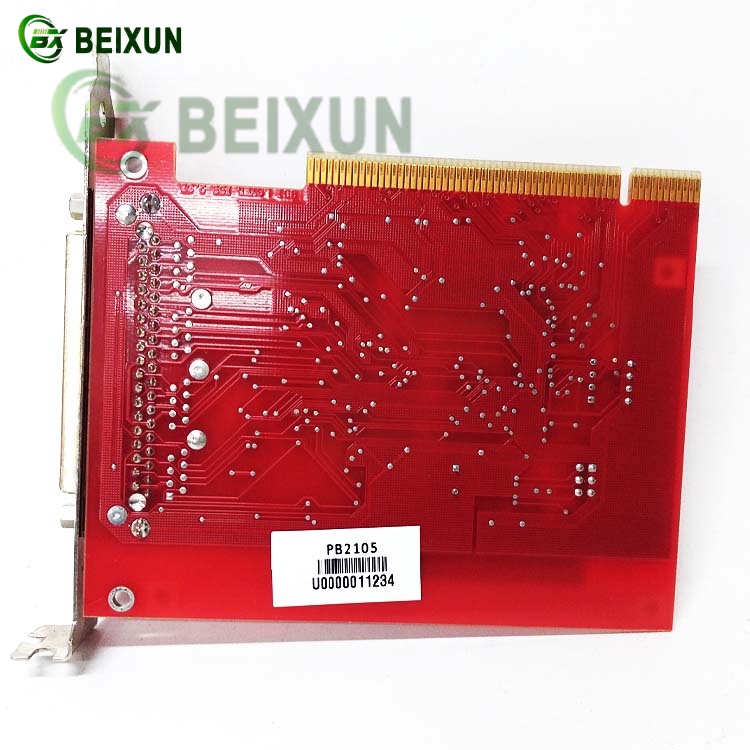

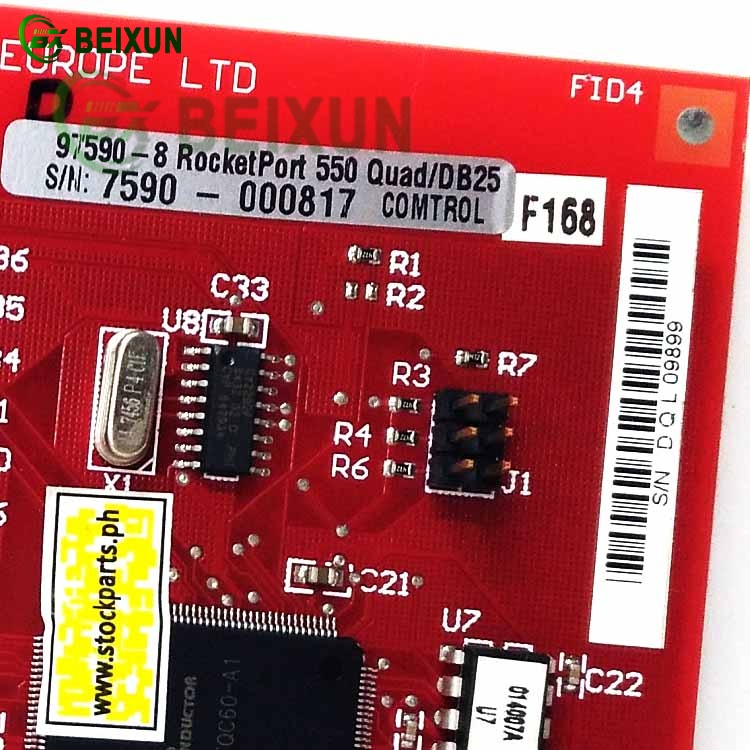

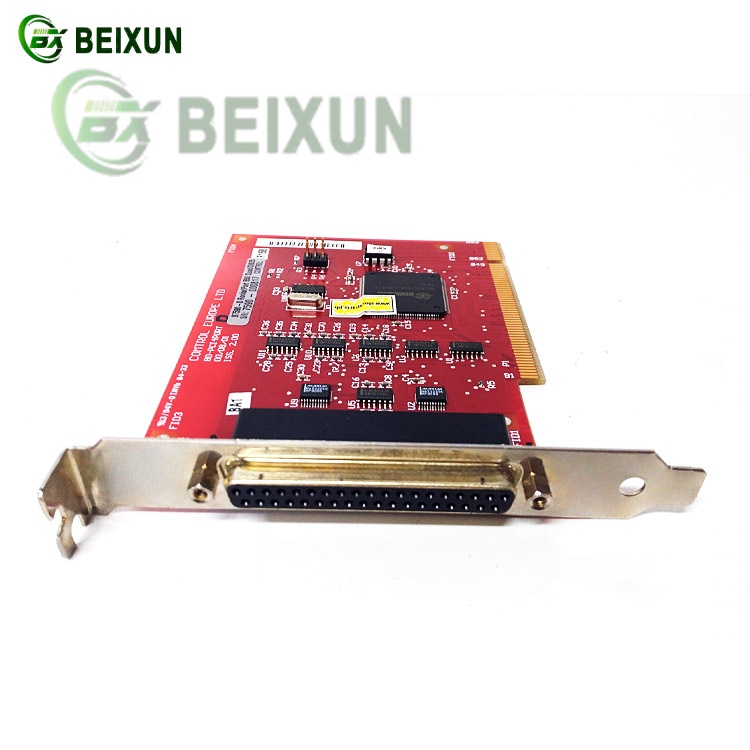

The GE 97590-8 BD-PCI4PORT is a PCI-based I/O board designed for industrial automation and data acquisition systems.
Below are its key functions and technical specifications:
1. Primary Functions
Thermocouple Input Module Interface:
Supports programmable J, K, T, and E-type thermocouples for temperature measurement.
Implements median selection algorithms in TMR (Triple Modular Redundancy) mode to ensure data accuracy during scans.
Fault Monitoring & Alarming:
Activates channel-specific fault indicators (e.g., for open circuits or sensor failures) without triggering module-wide alarms.
Generates chassis alarm signals when critical faults are detected.
Industrial Communication:
Integrates with PCI bus systems for high-speed data transfer between controllers and field devices.
2. Technical Highlights
Compatibility: Works with GE’s BD-PCI4PORT card slot architecture.
Reliability: Designed for harsh industrial environments with robust signal conditioning.
