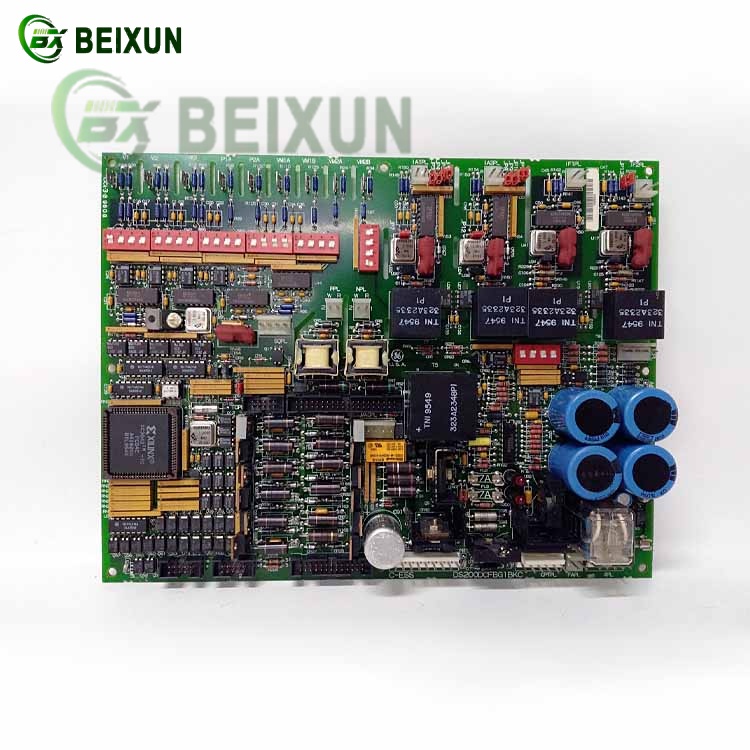

The GE DS200DCFBG1BKC Power Supply Card is a critical component within GE’s EX2000 series drive systems, designed to provide stable and regulated power to the control circuitry.
Below are its key functions and technical specifications:
1. Primary Functions
Power Regulation & Distribution:
Supplies DC voltage to the drive control circuits, ensuring stable operation of the SCR (Silicon-Controlled Rectifier) bridge and gate drivers.
Includes buffer circuits to suppress voltage spikes, protecting sensitive components from transient overvoltages.
System Integration:
Acts as an intermediary between the main power supply and the control logic, facilitating seamless communication with other drive modules.
Supports configurable jumpers for voltage/current adjustments, allowing customization for specific industrial applications.
Reliability & Diagnostics:
Engineered for industrial-grade durability (e.g., high-temperature tolerance, shock/vibration resistance).
Equipped with status indicators for real-time monitoring of power supply health.
2. Technical Specifications
Input Voltage: Typically 24V DC or AC (varies by configuration).
Output Stability: ±1% regulation for precision control circuits.
Compatibility: Designed for GE EX2000 drives.
3. Applications
Industrial Drives: Motor control, conveyor systems, and robotics.
Power Conversion: SCR-based AC/DC and DC/AC inverters.
