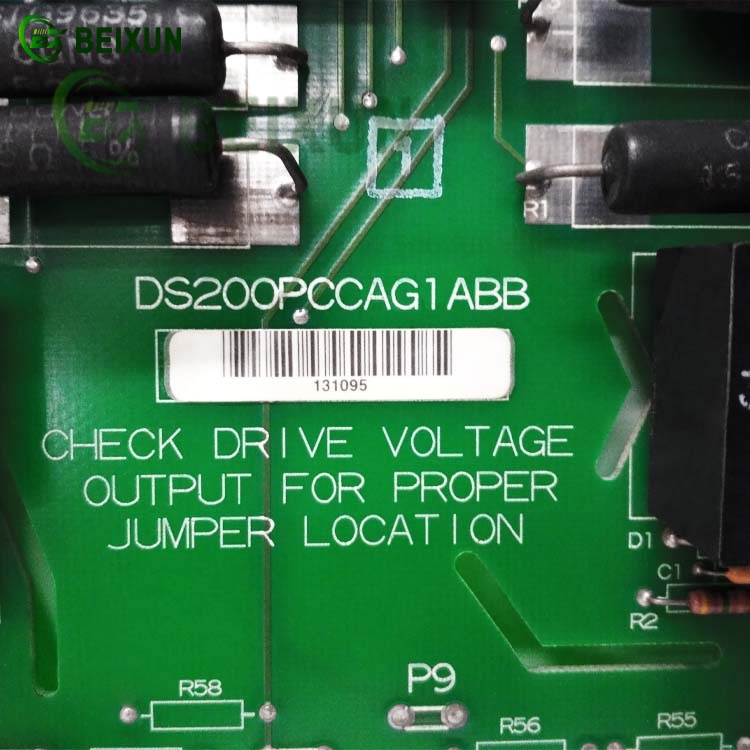

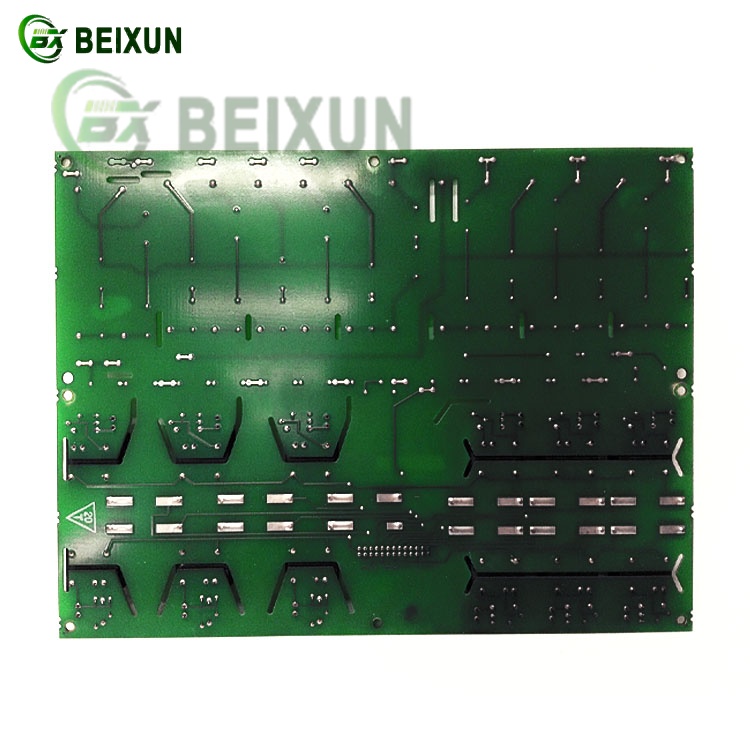

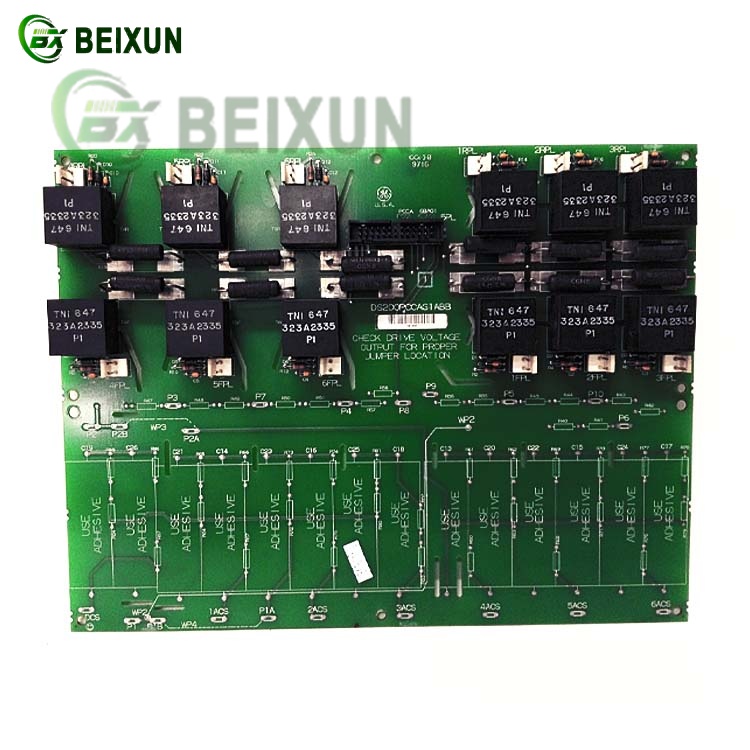

The GE DS200PCCAG1ABB DC Power Connect Board serves as a critical interface component in industrial drive systems, primarily within GE’s EX2000 series.
Below are its key functions and technical roles:
1. Primary Functions
Power Interface & Control:
Acts as an intermediary between the drive control circuit and the SCR (Silicon-Controlled Rectifier) power bridge, ensuring seamless integration and optimized power flow.
Provides gate drive signals to the SCR bridge via pulse transformers, enabling precise control of power switching sequences.
Voltage Spike Management:
For low-to-medium power controllers, integrates buffer circuits to mitigate voltage spikes on AC lines, DC buses, and gate drivers, enhancing system stability.
High-power designs may omit some buffer circuits, distributing them across the broader system architecture for efficiency.
System Integration:
Supports flexible wiring with configurable jumpers, allowing customization for specific drive requirements.
Compatible with industrial communication protocols (e.g., Ethernet, Modbus) for integration into larger automation networks.
2. Technical Highlights
Power Handling: Optimized for DC power distribution in motor control and power conversion systems.
Reliability: Engineered for industrial-grade durability (e.g., shock/vibration resistance, high-temperature operation).
Application Scope: Widely used in power utilities, manufacturing, and process industries for SCR-based drive control.
