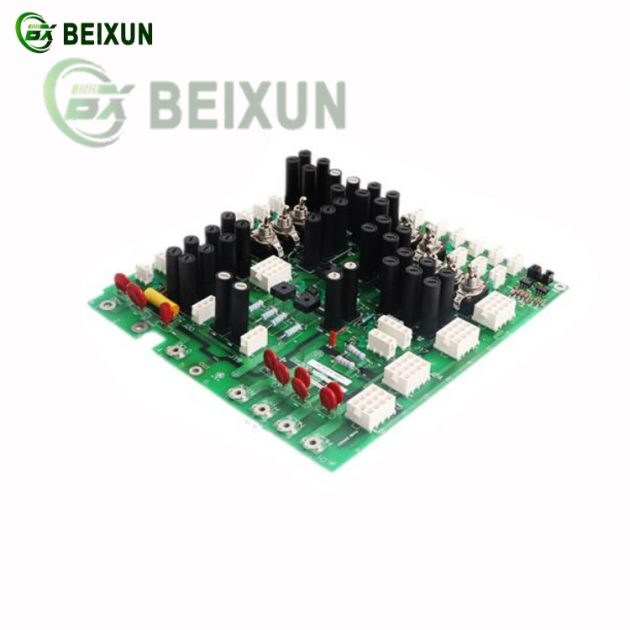

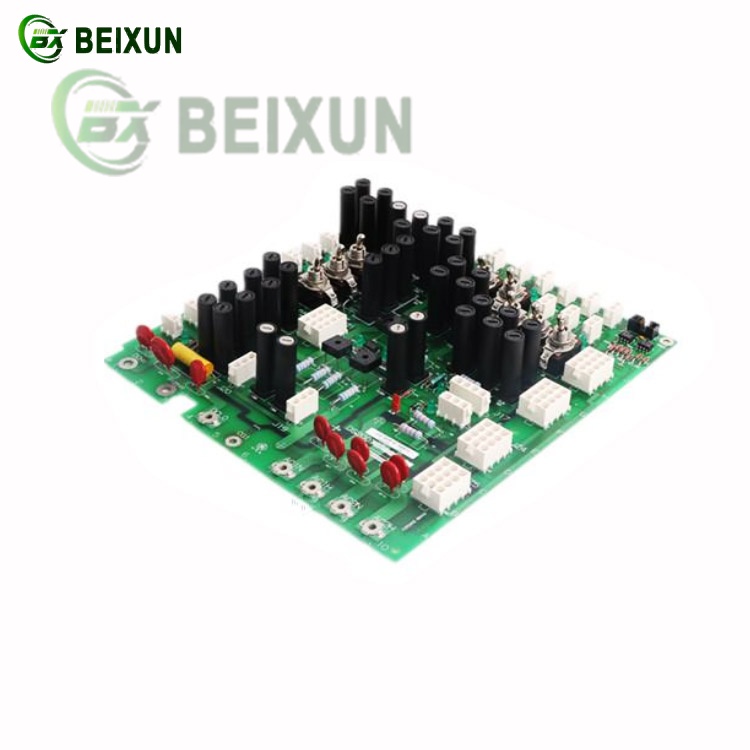

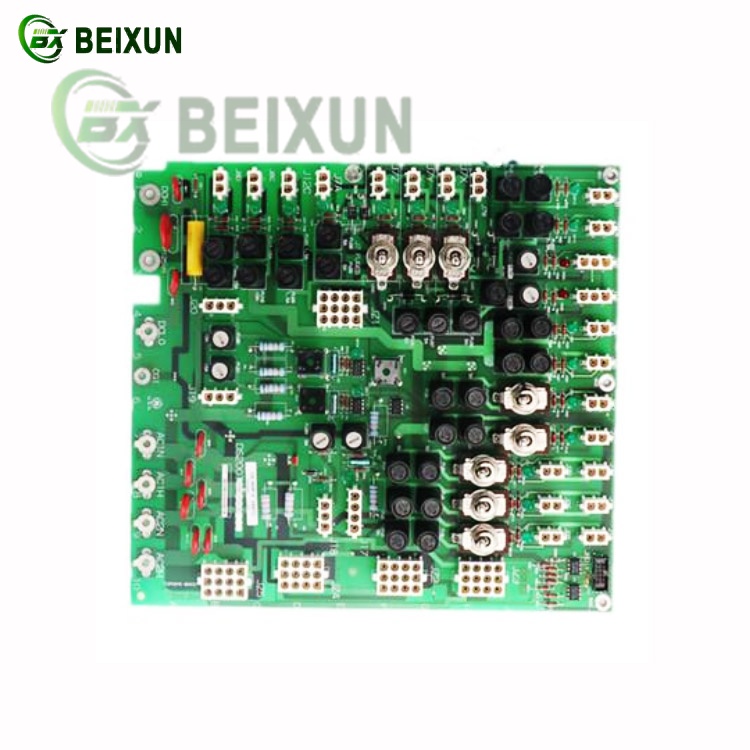

GE DS200TCPDG1BEC Power Distribution Board – Mark V Turbine Control System
1. Primary Function
The DS200TCPDG1BEC is a Power Distribution Board designed for GE’s Speedtronic™ Mark V turbine control system.
It serves as a centralized power management module, ensuring stable and redundant power delivery to critical control components.
2. Key Roles & Features
A. Power Distribution & Regulation
Distributes multiple DC voltage levels (e.g., +5V, ±15V, +24V) to Mark V control modules (e.g., CPUs, I/O cards).
Provides electrical isolation between power sources and sensitive electronics to prevent noise interference.
B. Redundancy & Fault Protection
Supports N+1 redundant power inputs for uninterrupted operation during power failures.
Integrated overvoltage/overcurrent protection to safeguard downstream components.
C. Industrial Durability
Ruggedized design for harsh environments (high temperature, vibration, EMI).
Compact form factor for seamless integration into Mark V control racks.
D. Diagnostic Monitoring
LED status indicators for real-time power health monitoring (input/output voltage, fault alerts).
3. Typical Applications
Turbine control systems: Powers protective relays, I/O modules, and processor boards.
Industrial automation: Used in power plants, oil/gas facilities, and manufacturing.
