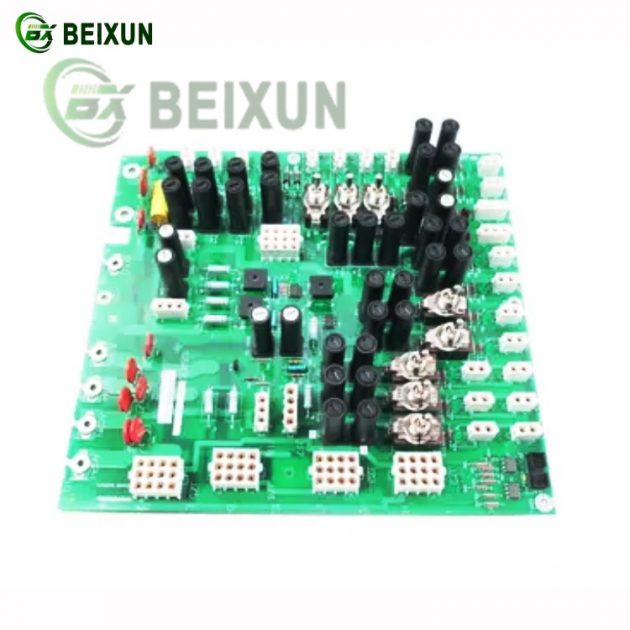

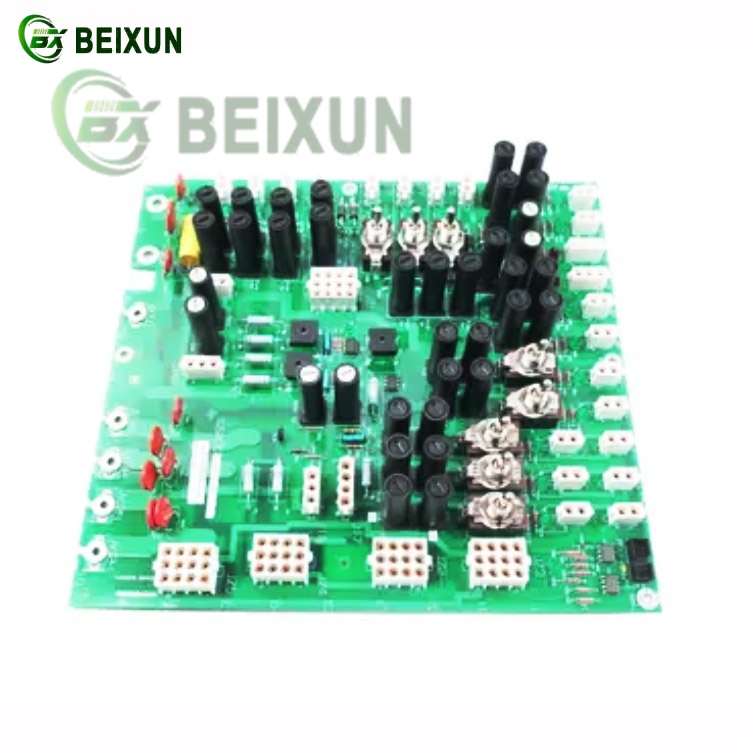

GE DS200TCPDG2BEC Power Distribution Board – Mark V Turbine Control System
1. Primary Function
The DS200TCPDG2BEC is a Power Distribution Board designed for GE’s Speedtronic™ Mark V turbine control system.
It serves as a centralized power hub, distributing regulated electrical power to critical control modules and I/O components.
2. Key Roles & Features
A. Power Distribution & Regulation
Converts and distributes multiple DC voltage levels (e.g., +5V, ±15V, +24V) to support processors, I/O cards, and communication modules.
Ensures stable power delivery under varying loads to prevent system disruptions.
B. Redundancy & Protection
Supports N+1 redundant power inputs for fail-safe operation in critical turbine applications.
Integrated overvoltage/overcurrent protection to safeguard downstream electronics.
C. Industrial Robustness
Designed for harsh environments (high temperature, vibration, EMI) typical in power plants and wind farms.
Compact form factor for seamless integration into Mark V control racks.
D. Diagnostic Capabilities
LED indicators provide real-time monitoring of power status and fault conditions.
3. Typical Applications
Turbine control systems: Powers protective relays, CPUs, and I/O modules in gas/steam turbines.
Wind energy: Used in wind turbine controllers to optimize power generation and grid stability.
