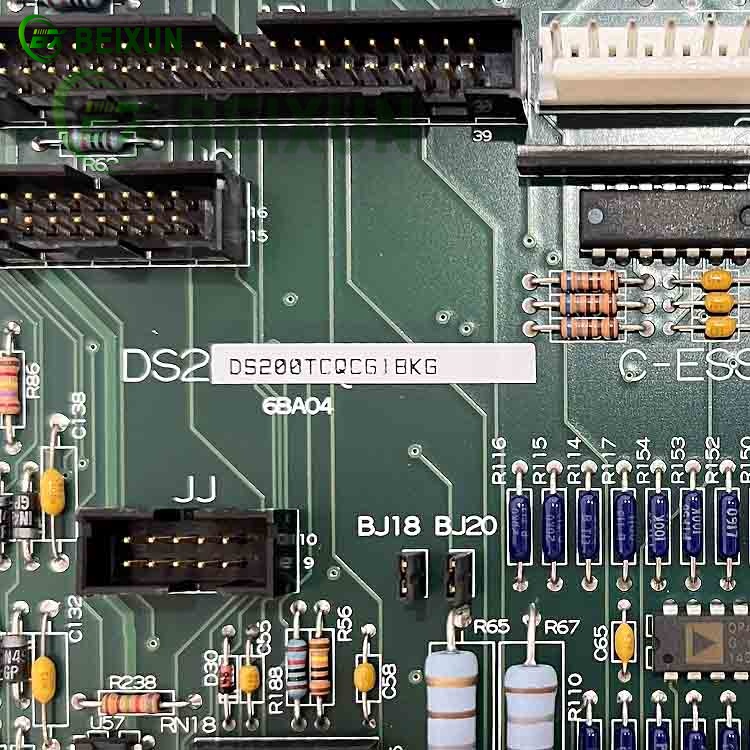

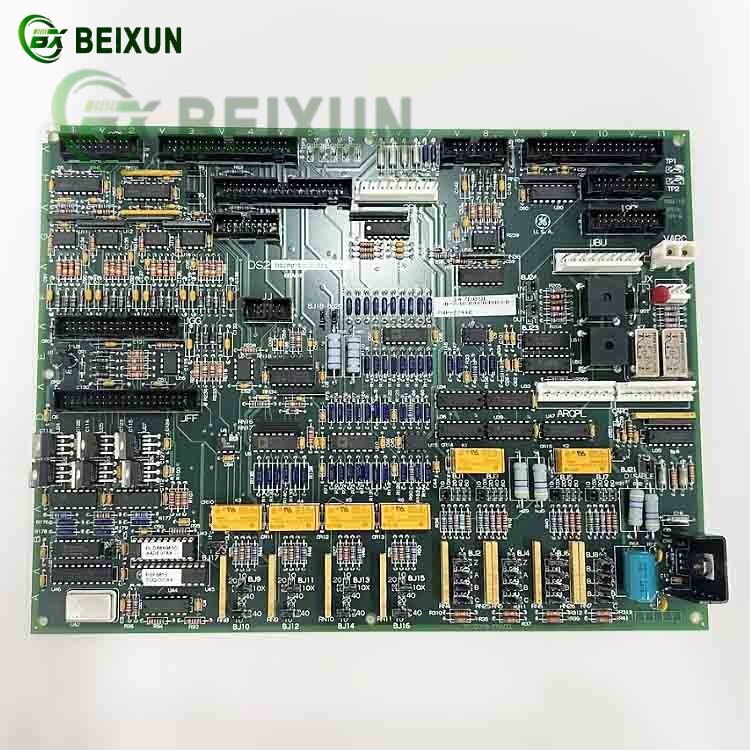

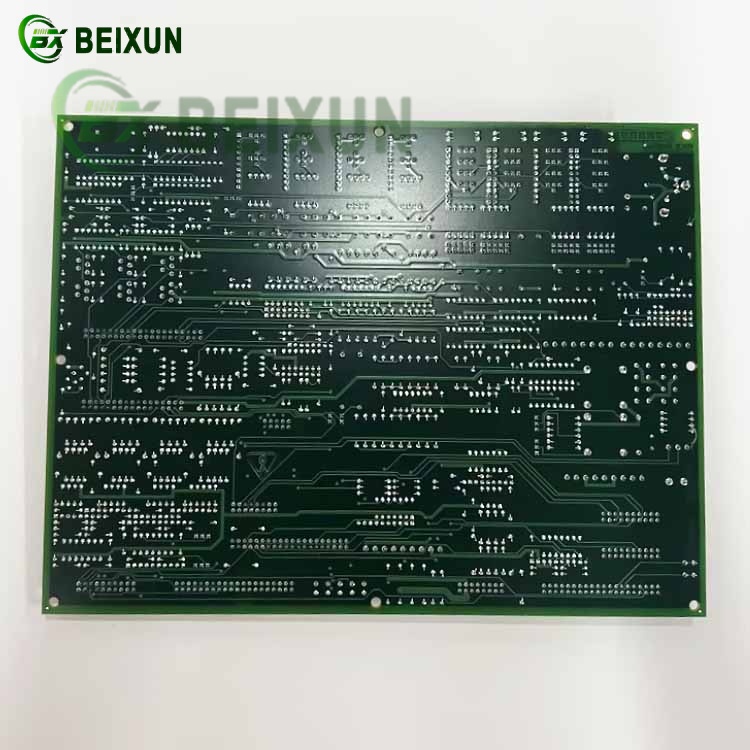

GE DS200TCQCG1AJD Mark V DS200 Series RST Overflow Board: Key Functions
1. Signal Conversion & Servo Control
Digital-to-Current Signal Conversion: Converts digital command signals from control systems into analog current outputs to drive servo valves, enabling precise fluid regulation (e.g., fuel flow, pressure control) in gas/steam turbines.
Multi-Channel Interface Support: Features three 40-pin connectors, three 34-pin connectors, and one 16-pin connector for seamless integration with DACs, amplifiers, and external sensors.
2. Redundancy & System Protection
Triple-Redundant Architecture Compatibility: Acts as a critical component in the Mark V’s R-S-T redundancy framework, ensuring synchronized signal distribution across redundant channels to enhance fault tolerance.
Circuit Protection Mechanisms: Incorporates overload detection and short-circuit isolation to safeguard servo control loops from abnormal current conditions.
3. Customizable Hardware Configuration
Jumper & DIP Switch Adjustments: Uses 37 jumpers to configure signal thresholds, current output ranges, and other parameters, tailored to industrial applications like turbine control and grid load balancing.
Modular Expandability: Integrates with other Mark V system modules (e.g., drives, I/O expansion boards) to support complex control logic and system scalability.
4. Diagnostics & Monitoring
Real-Time Status Indicators: Displays power status, communication integrity, and servo valve anomalies via onboard LEDs and test points.
Remote Communication Protocols: Supports Modbus for integration with DCS/PLC systems, enabling remote parameter tuning and historical fault analysis.
5. Key Applications
Gas Turbine Control: Manages fluid dynamics in GE Mark V turbine systems to optimize combustion efficiency and emission compliance.
Power Generation & Grid Stability: Facilitates load balancing and emergency shutdown protocols in power plants for grid reliability.
Industrial Automation: Enhances precision in servo-driven manufacturing processes through rapid response and fail-safe operation.
Combining signal processing, redundant synchronization, and real-time diagnostics, this overflow board is integral to GE Speedtronic systems, ensuring robust performance in energy, power, and heavy industrial applications.
