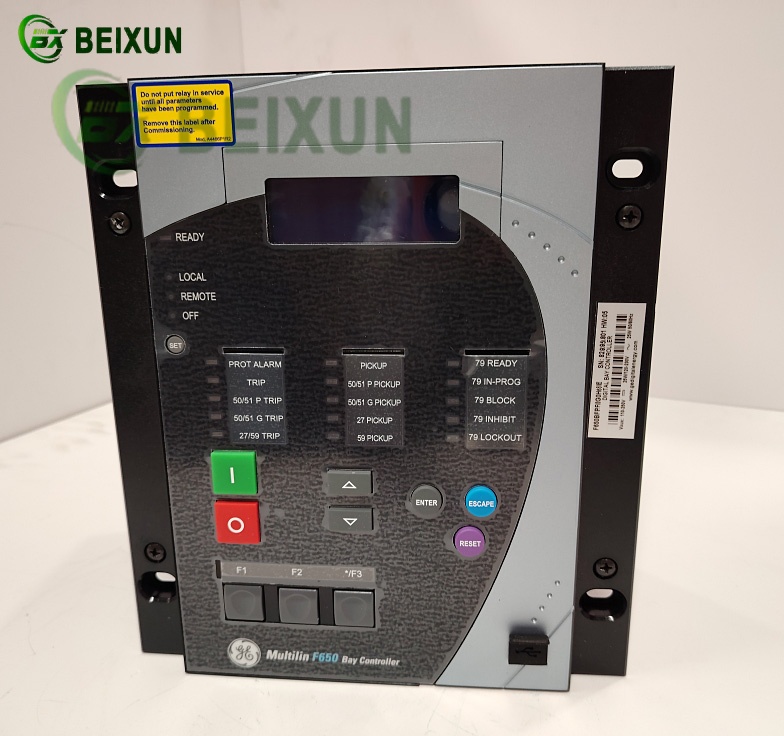

The GE F650-BFP-FIG0-HI-6E Digital Bay Controller is a high-performance industrial automation controller designed for power distribution and control systems, particularly in utility and industrial applications.
Below are its key functions and technical details:
1. Core Functions
Bay-Level Automation:
Serves as a central control unit for electrical substations and switchgear bays, enabling real-time monitoring and protection of power distribution networks.
Supports intelligent switching operations (e.g., circuit breaker control, load shedding) to enhance grid stability.
Protection & Monitoring:
Implements digital protection relays for fault detection (overcurrent, short circuits) and rapid isolation to prevent equipment damage.
Integrates measurement functions (voltage, current, power quality) for system diagnostics.
Communication & Integration:
Features Ethernet, Modbus, and IEC 61850 protocols for seamless integration with SCADA systems and smart grids.
Supports remote firmware updates via secure communication channels.
2. Technical Highlights
Processing Power: Equipped with a high-speed digital signal processor (DSP) for complex logic execution.
Environmental Rating: Designed for harsh industrial environments (IP54, -40°C to +85°C operating range).
User Interface: Includes a local HMI and web-based configuration tools for intuitive setup.
3. Applications
Power Utilities: Substation automation, feeder protection, and grid management.
Industrial Plants: Motor control centers (MCCs) and critical process automation.
