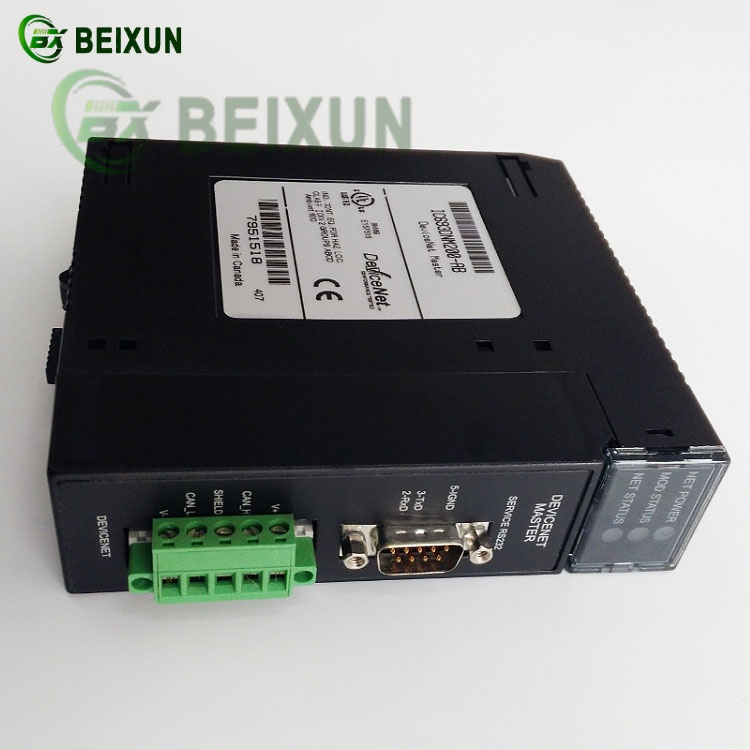

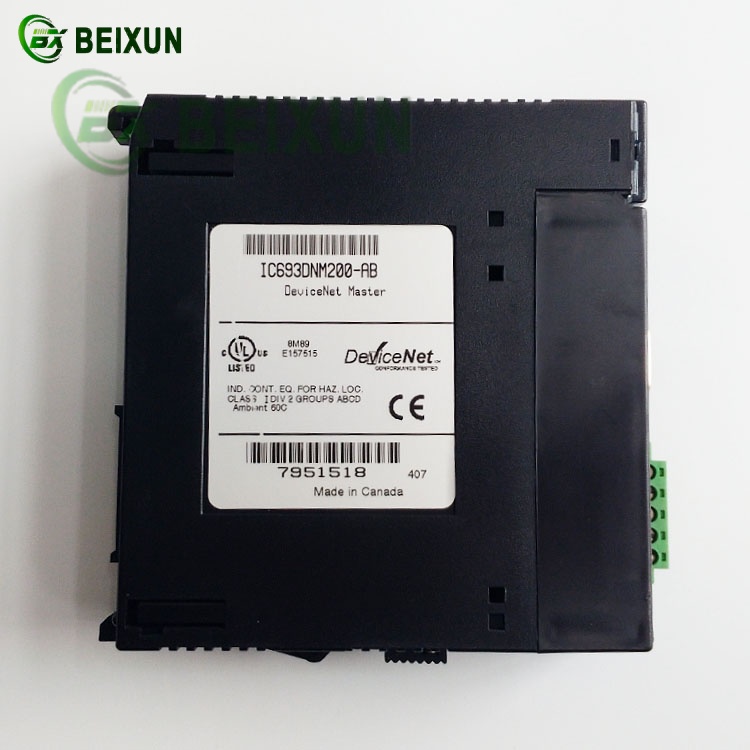

GE Fanuc IC693DNM200-RB DeviceNet Master Module – Functional Overview
1. Primary Function
The IC693DNM200-RB is a DeviceNet Master Module designed for GE Fanuc Series 90-30 PLCs, enabling seamless industrial network communication between the PLC and DeviceNet-compatible field devices (sensors, drives, I/O modules, etc.).
2. Key Features & Capabilities
A. DeviceNet Network Control
Acts as a master/scanner on the DeviceNet network, managing up to 63 slave devices (nodes) with configurable data exchange rates (125/250/500 kbps).
Supports polled, cyclic, and change-of-state (COS) communication modes for efficient data transfer.
B. PLC Integration
Interfaces directly with Series 90-30 PLC CPUs via the backplane, mapping DeviceNet I/O data to PLC memory (%I, %Q, %AI, %AQ).
Provides diagnostic data (node status, network errors) to the PLC for troubleshooting.
C. Configuration & Diagnostics
Configured via GE Fanuc Machine Edition (Proficy ME) or RSNetWorx for DeviceNet software.

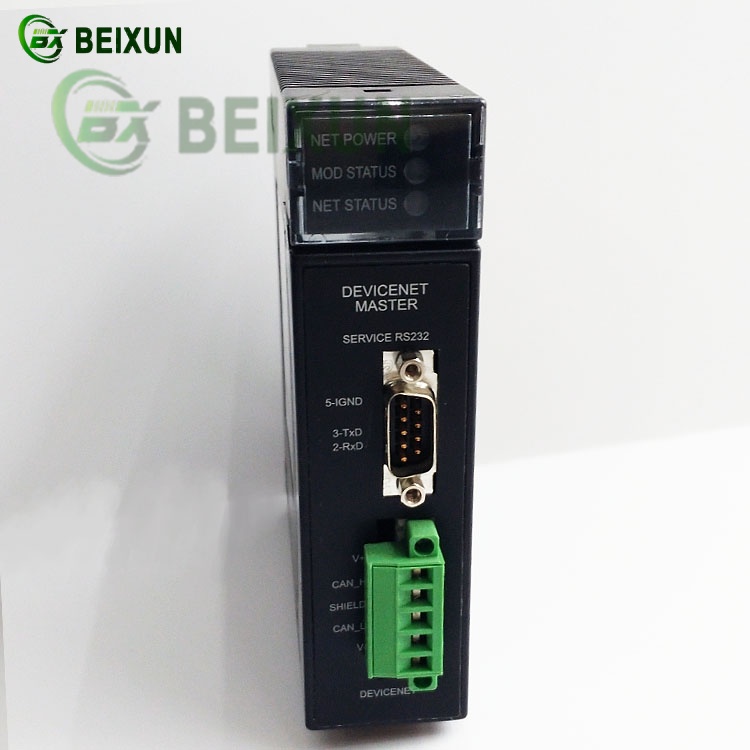

Features LED indicators (power, network status, module faults) for real-time monitoring.
D. Robust Industrial Design
Operates in harsh environments (0–60°C, 30g shock resistance) with DIN-rail mounting.
Requires 24V DC power (supplied via DeviceNet connector or separate terminal).
3. Typical Applications
Factory Automation: Connects PLCs to DeviceNet-enabled sensors, motor starters, and valves.
Material Handling: Coordinates conveyors, robotic arms, and barcode readers on a unified network.
Process Control: Integrates weigh scales, flow meters, and HMIs into PLC logic.
