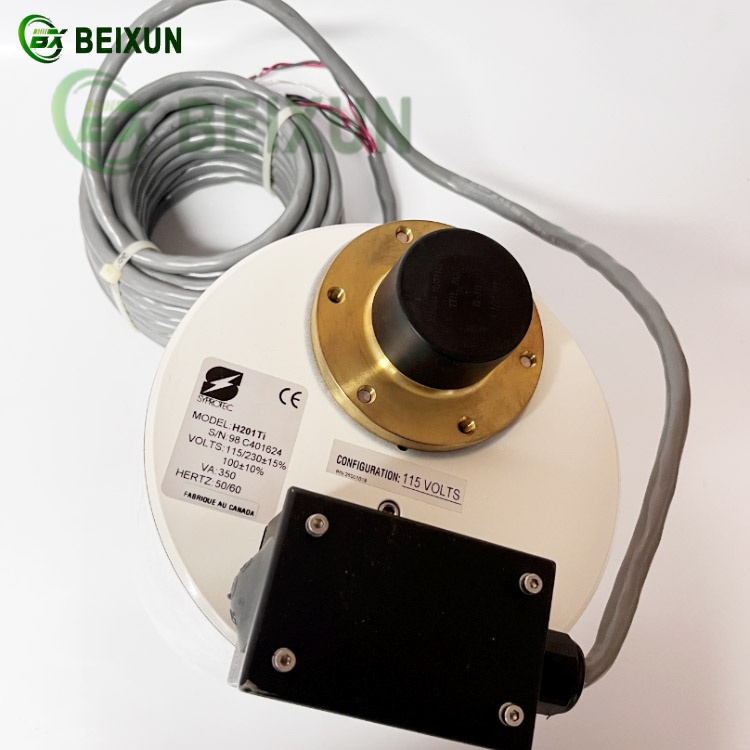

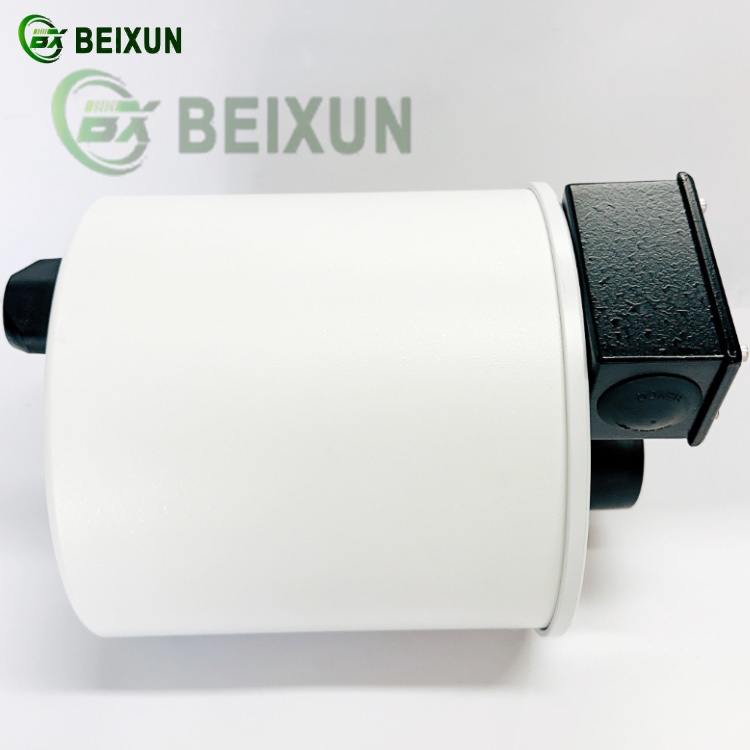

GE HYDRAN H201Ti Single-Channel Controller – Key Functions
1. Core Purpose
The HYDRAN H201Ti is a single-channel dissolved gas analyzer (DGA) controller designed for continuous monitoring of transformer oil, providing early detection of electrical faults in power transformers.
2. Main Features
Advanced Gas Detection:
Measures key fault gases: hydrogen (H₂), carbon monoxide (CO), ethylene (C₂H₄), and acetylene (C₂H₂) with high sensitivity
Utilizes fuel cell technology (IEEE C57.104 compliant) for reliable dissolved gas analysis
Real-Time Monitoring:
Continuous measurement with typical response time under 30 minutes
Provides 4-20 mA analog outputs and Modbus RTU communication for SCADA integration
Robust Design:
Operates in -40°C to +70°C environments (IP65 enclosure)
Requires no carrier gas or complex sample conditioning
3. Key Applications
Transformer Condition Monitoring: Detects incipient faults like partial discharge, overheating, and arcing
Predictive Maintenance: Identifies developing faults before catastrophic failure occurs
Smart Grid Integration: Supports remote monitoring through digital communication protocols
