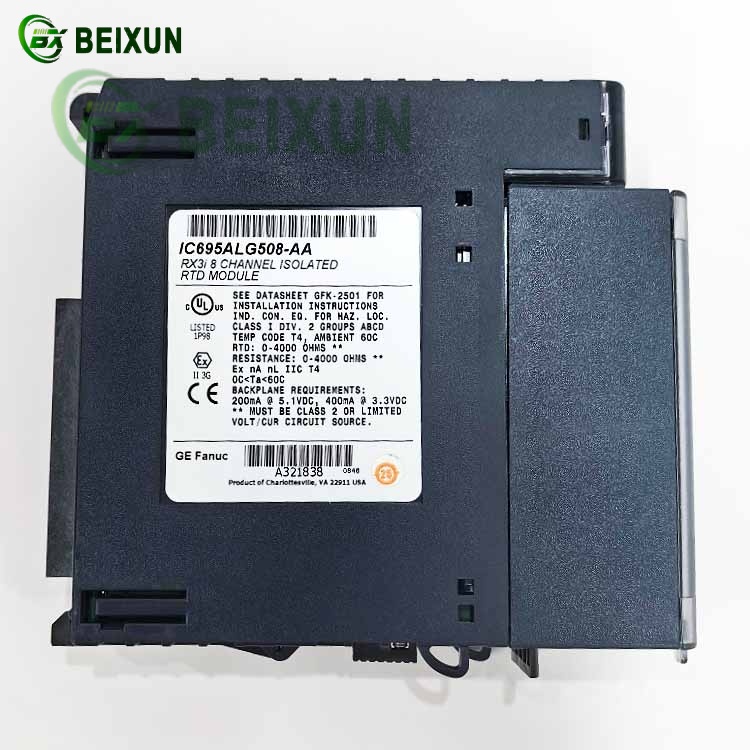

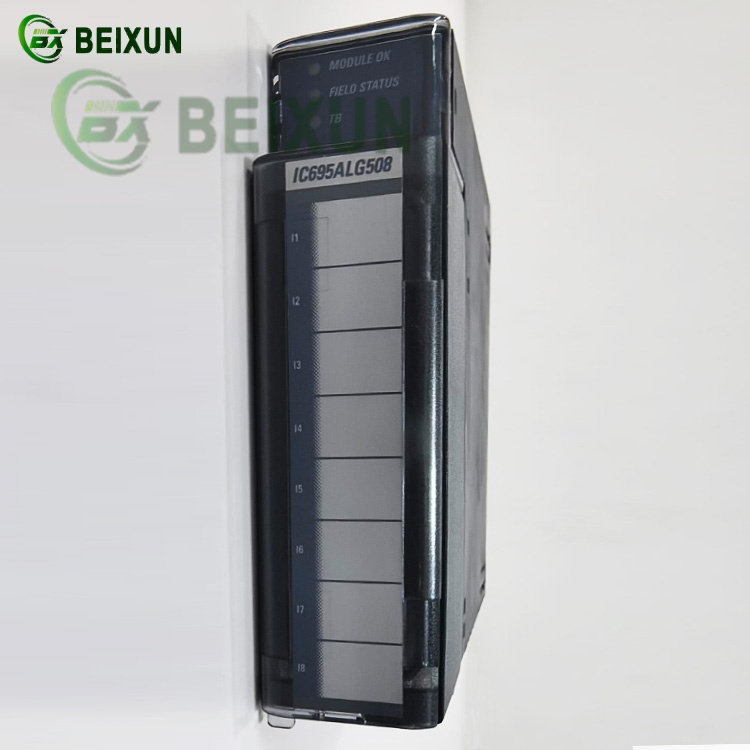

GE IC695ALG508-AA RX3i 8-Channel Isolated RTD Module – Key Functions
1. Core Purpose
The IC695ALG508-AA is an 8-channel isolated RTD (Resistance Temperature Detector) input module designed for PACSystems RX3i programmable automation controllers (PACs).
It provides high-precision temperature monitoring for industrial applications.
2. Key Features
8 isolated RTD input channels for measuring temperature with high accuracy
Supports 2-wire, 3-wire, and 4-wire RTD configurations (e.g., Pt100, Pt1000, Cu10, Ni120)
Channel-to-channel isolation for noise immunity and signal integrity
Configurable input ranges for flexible temperature measurement
3. Applications
Process control in industries like oil & gas, power generation, and manufacturing
Equipment monitoring for motors, bearings, and transformers
Integration with PACSystems RX3i for automated temperature control
4. Advantages
High reliability with isolated inputs to prevent ground loops
Easy configuration via GE’s Machine Edition software
Compact design for space-constrained installations
