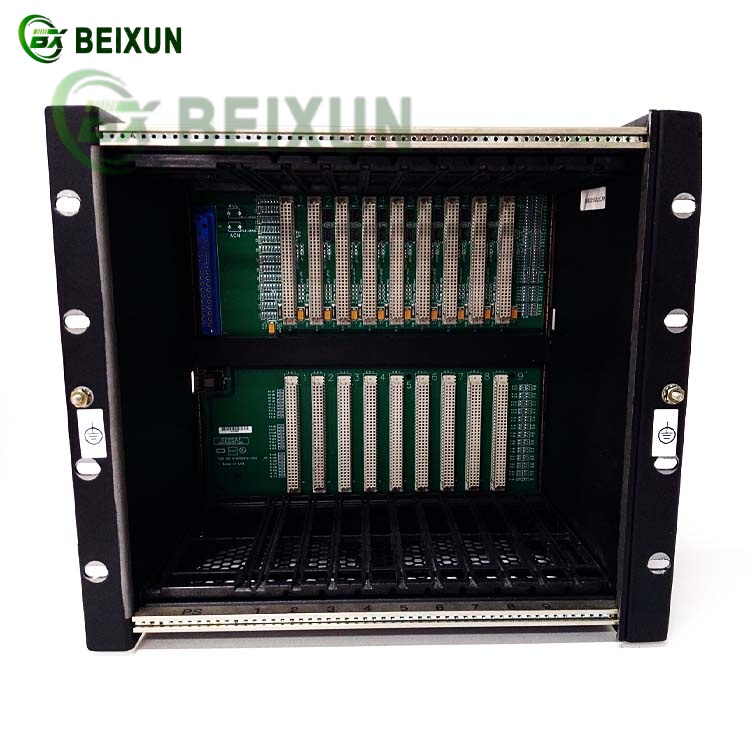

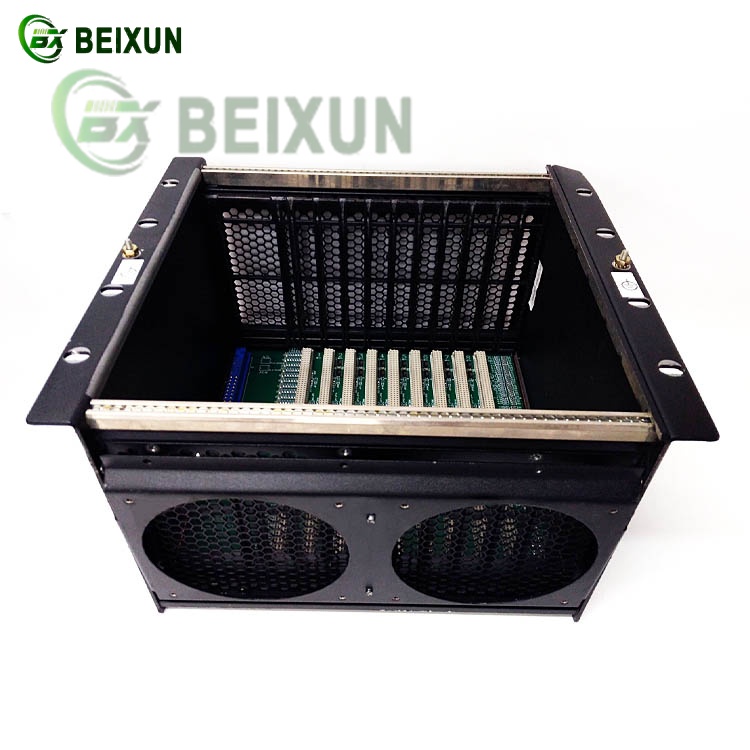

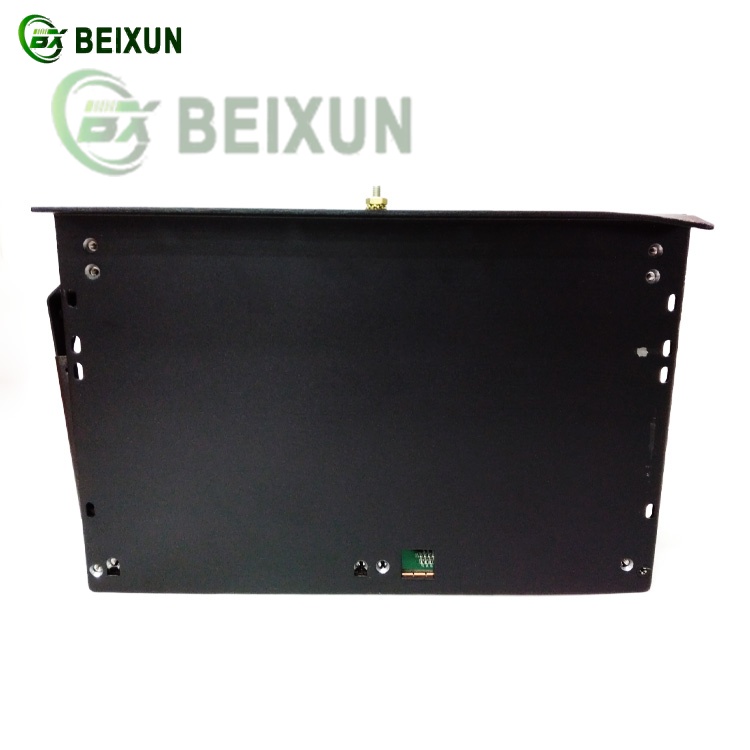

The GE IC698CHS009 Rack-Mounted Chassis is a 9-slot expansion chassis designed for the PACSystems RX3i series, serving as a modular backbone for industrial automation systems.
Below are its key functions and features:
1. Key Functions
Module Integration:
Houses CPU modules, I/O modules, and communication modules (e.g., IC698CPE040 CPU, IC698ACC701 sensor modules) to create a scalable control system.
Supports hot-swappable module replacement for minimal downtime.
Industrial-Grade Design:
Built for durability in harsh environments (shock/vibration resistance, EMI shielding).

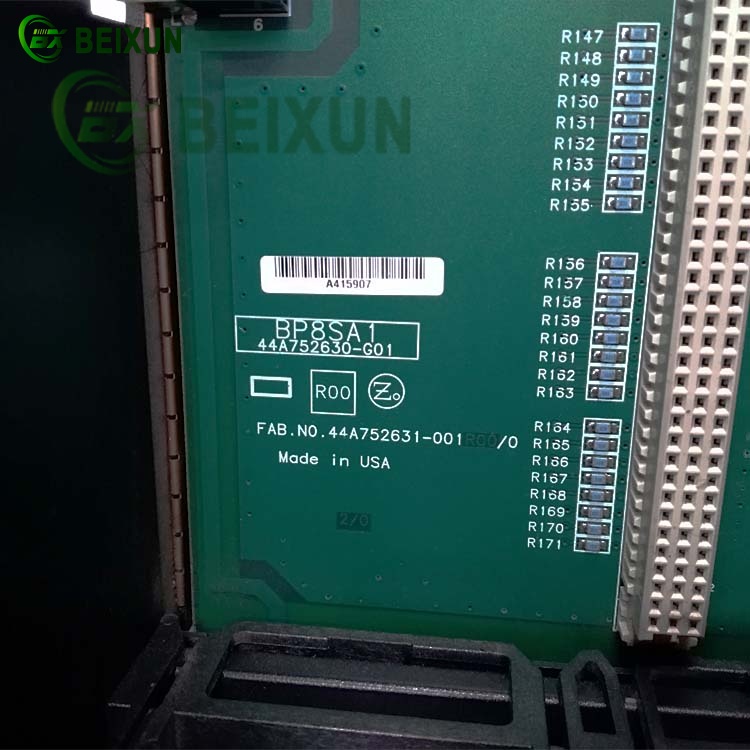

Features a VME64 backplane for high-speed inter-module communication.
System Scalability:
Allows expansion via additional chassis (e.g., IC698CHS117) to accommodate growing automation needs.
2. Technical Specifications
Slots: 9 (configurable for mixed module types).
Compatibility: PACSystems RX3i/RX7i series.
Power: 24V DC (typical for industrial use).
3. Applications
Power plants: Turbine control and monitoring.
Manufacturing: PLC-based automation, CNC systems.
