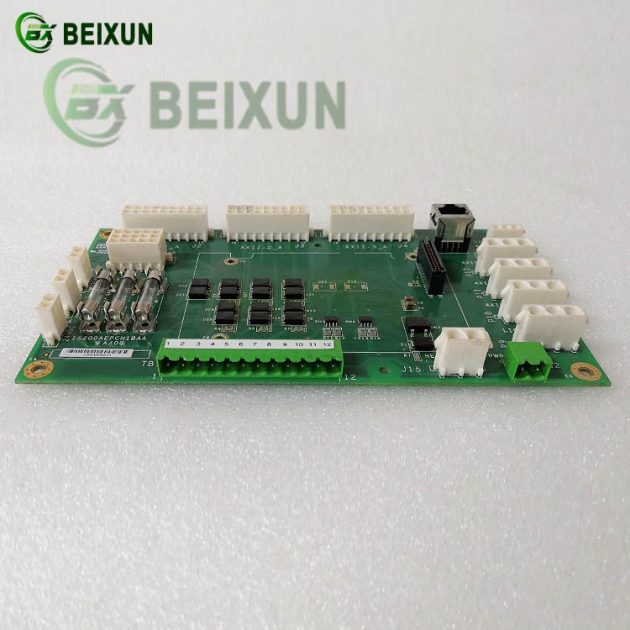

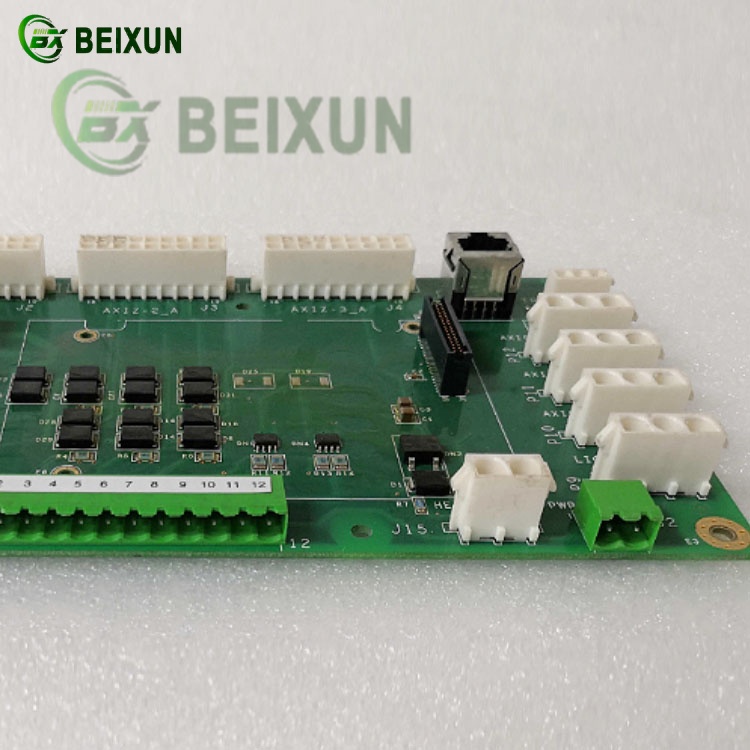

GE IS200AEPCH1BAA Energy Pitch Center Module – Overview
1. Core Function
The IS200AEPCH1BAA is a specialized pitch control module designed for GE’s Mark VIe wind turbine control system.
It serves as the central processing unit for blade pitch regulation, ensuring optimal aerodynamic performance and safety in wind power generation.
2. Key Features & Technical Specifications
Precision pitch control: Manages individual blade angles to maximize energy capture while preventing turbine overload
High-speed processing: Real-time adjustment of blade pitch in response to wind speed changes
Redundant communication: Dual-channel Ethernet connectivity (TCP/IP) with the Mark VIe controller
Integrated safety functions: Includes overspeed protection and emergency feathering capabilities
Environmental hardening: Designed to operate in extreme weather conditions (-40°C to +70°C)
3. Primary Applications
Onshore/offshore wind farms: Pitch angle optimization for power output regulation
Turbine protection systems: Storm protection through blade feathering
Condition monitoring: Vibration analysis and load management
4. System Integration
Interfaces with:
Turbine main controller (Mark VIe)
Hydraulic/electric pitch drives
Wind speed/direction sensors
Grid connection systems
5. Operational Benefits
Energy efficiency: Optimizes power generation across varying wind conditions
Component protection: Reduces mechanical stress on turbine components
Fault resilience: Automatic fail-safe mechanisms for grid disconnection scenarios
Remote diagnostics: Supports predictive maintenance through performance data collection
