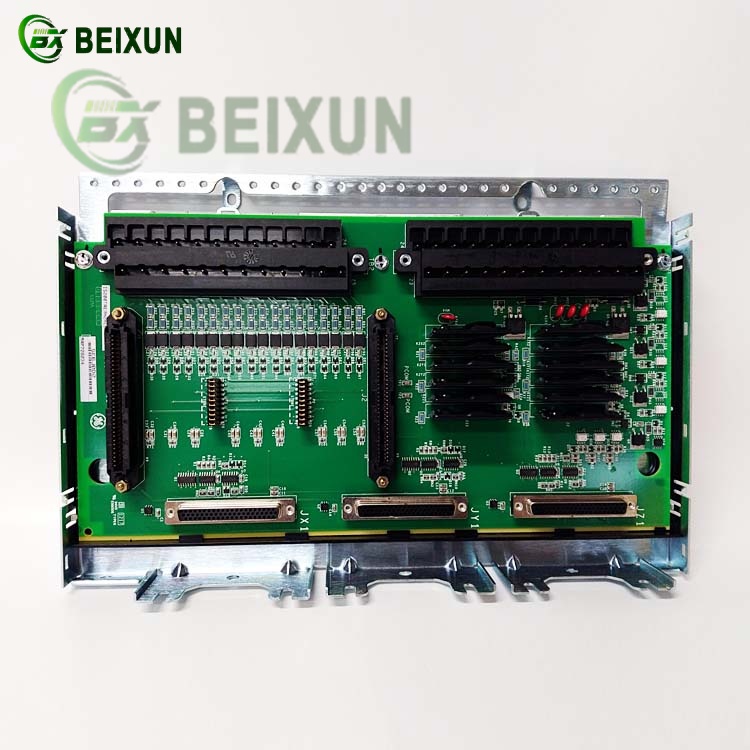

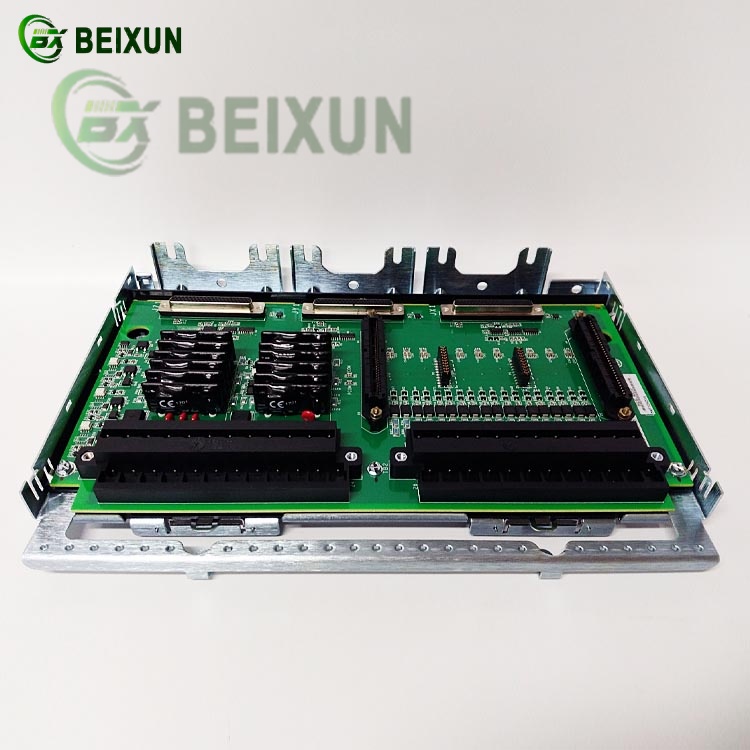

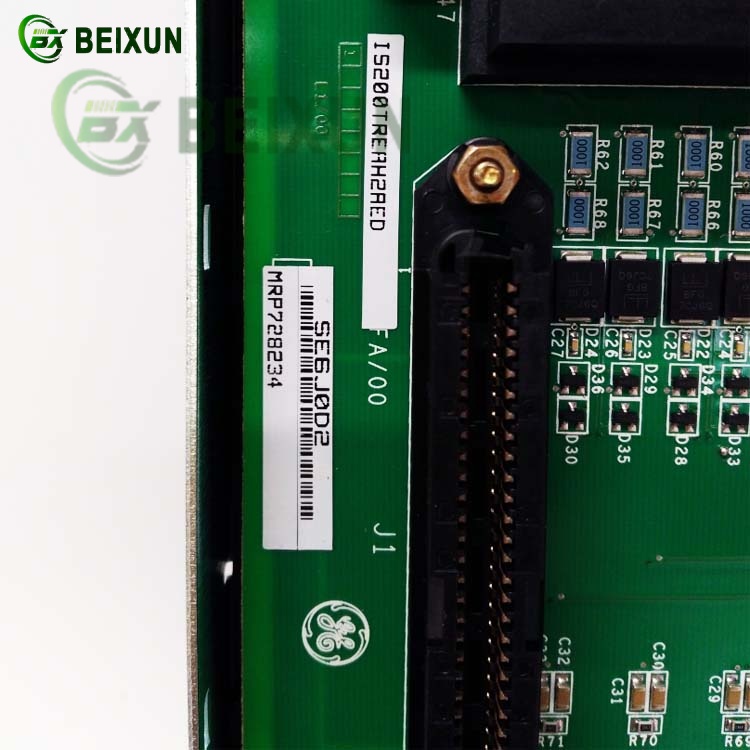

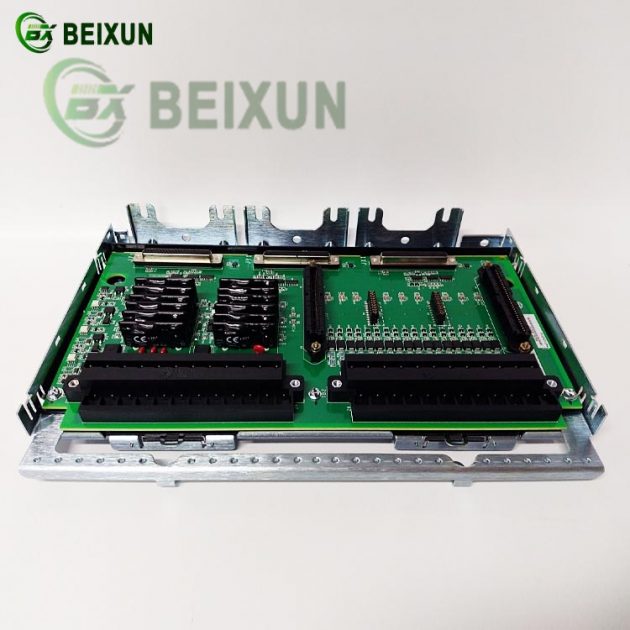

The GE IS200TREAH2AED is a control PCB module used in GE Mark VI Speedtronic systems, primarily for turbine control and industrial automation.
Below are its key functions and applications:
1. Core Functions
Signal Processing & Logic Control:
Processes signals from sensors (e.g., speed, temperature, pressure) and executes sequential or feedback control logic for turbine operations.
Supports high-speed switching (750–4000 rpm) with adjustable precision (±4% at 100 rad/s²).
Communication & Integration:
Facilitates data exchange between modules within the Mark VIe DCS framework.
Integrates with ProfiNet, EtherNet/IP, and other industrial protocols.
Safety & Monitoring:
Monitors turbine speed and position to prevent overspeeding and ensure safe operation.
Includes burnout detection and mechanical overspeed switches for redundancy.
2. Technical Specifications
Input/Output: 16 DI/16 DO channels (configurable for digital or analog signals).
Power Supply: 24V DC with isolation for field compatibility.
Operating Temp: -20°C to 60°C (industrial-grade durability).
3. Applications
Power Generation: Gas/steam turbine control in power plants.
Oil & Gas: Drilling rigs and refinery automation.
Aerospace & Marine: Engine control systems.
