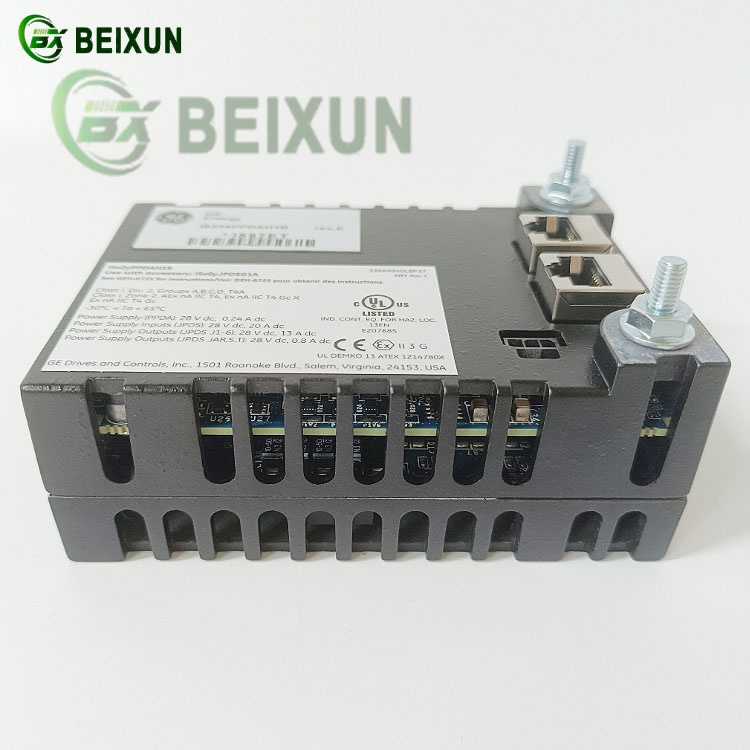

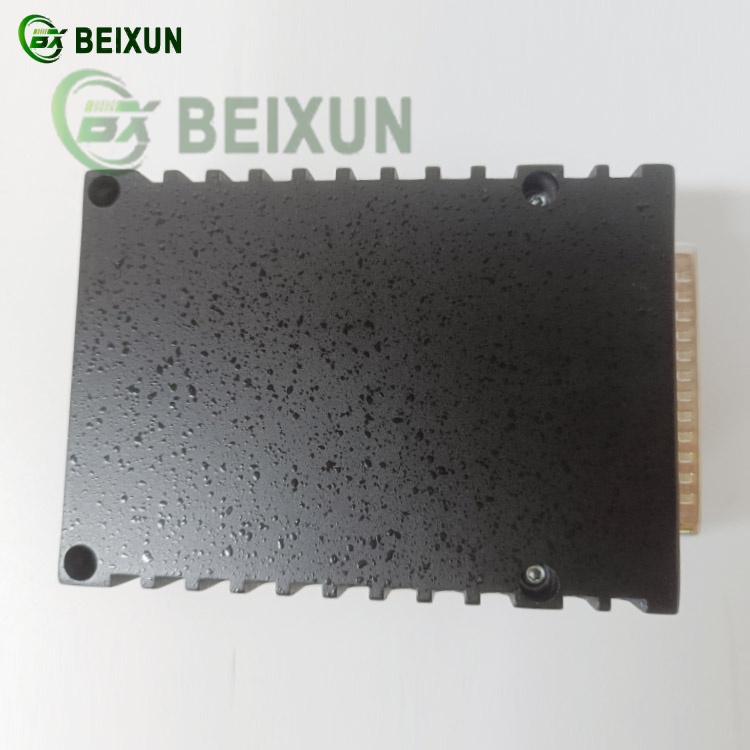

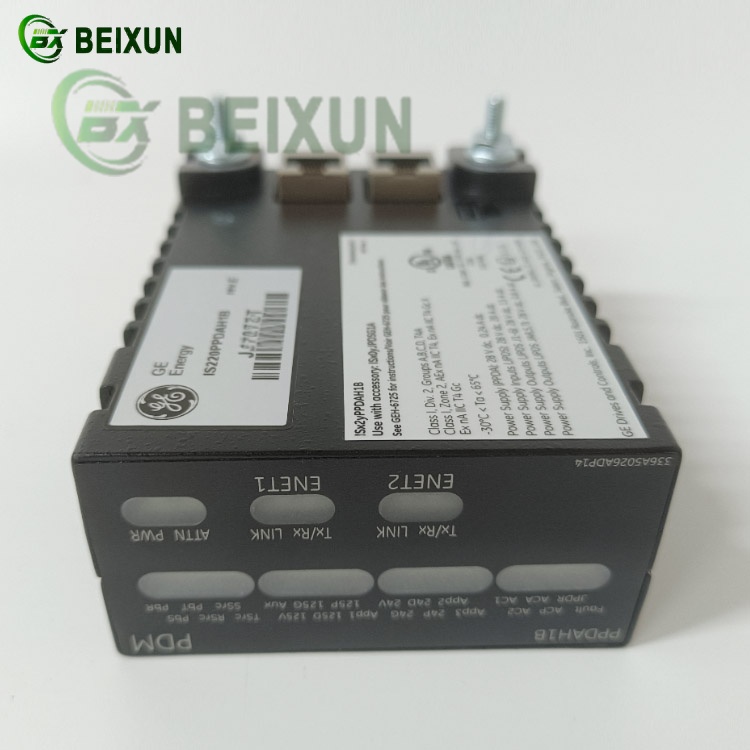

The GE IS220PPDAH1B is a Power Distribution and Analog Input Module designed for the Speedtronic™ Mark VIe gas turbine control system.
1. Key Functions
Power Distribution & Conditioning:
Provides regulated DC power distribution to other Mark VIe I/O modules and field devices.
Includes fault detection for overvoltage/undervoltage conditions to ensure system reliability.
Analog Signal Processing:
Accepts 4–20mA or 0–10V analog inputs (e.g., pressure transducers, temperature sensors).
Converts analog signals into digital data for turbine control algorithms.
System Integration:
Interfaces with Mark VIe controllers via ISBus or Ethernet (depending on firmware).
Supports redundant configurations for critical turbine protection.
Diagnostics & Protection:
Monitors power supply health and analog signal integrity.
Triggers alarms for abnormal conditions (e.g., signal loss, power faults).
2. Technical Specifications
Input Voltage: 24V DC (typical for industrial systems).
Analog Channels: Typically 8–16 channels (varies by configuration).
Isolation: Galvanic isolation to prevent ground loops and noise.
3. Applications
Gas Turbine Control: Manages fuel valves, exhaust temps, and compressor pressures.
Power Plants: Integrates with Mark VIe for automated protection and efficiency.
