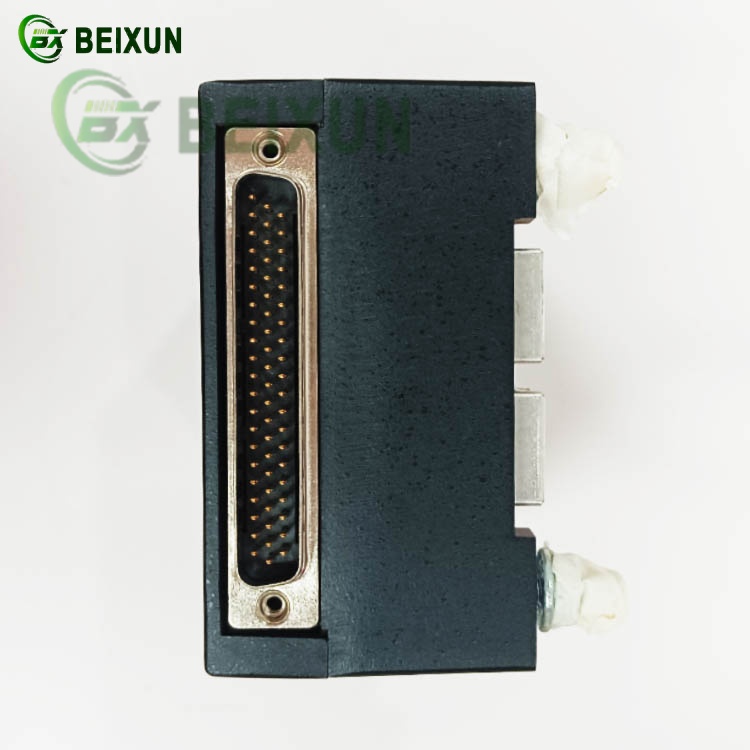

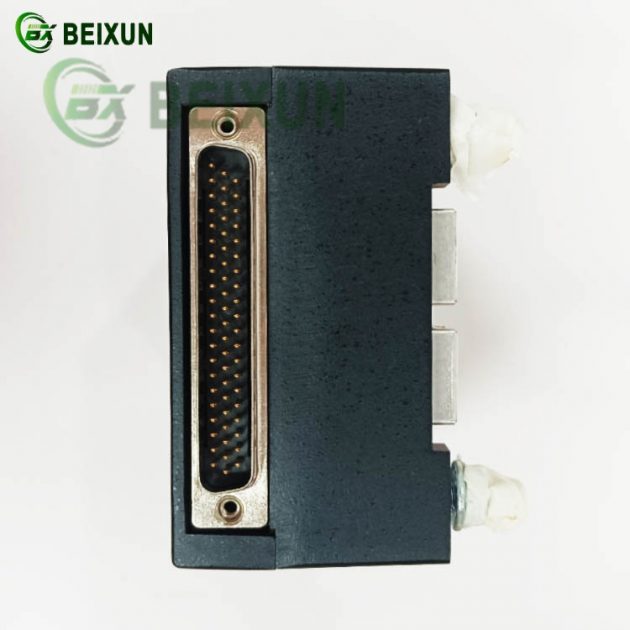

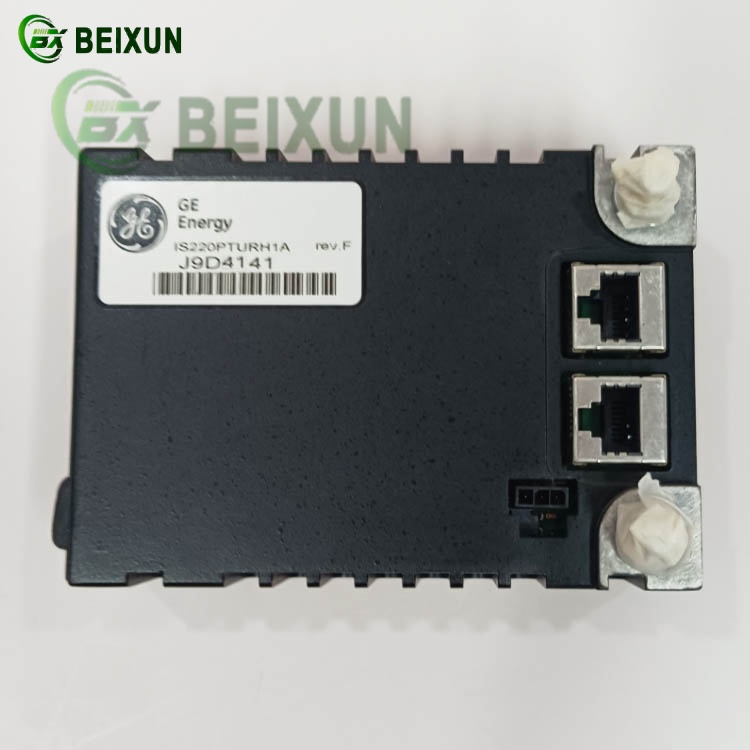

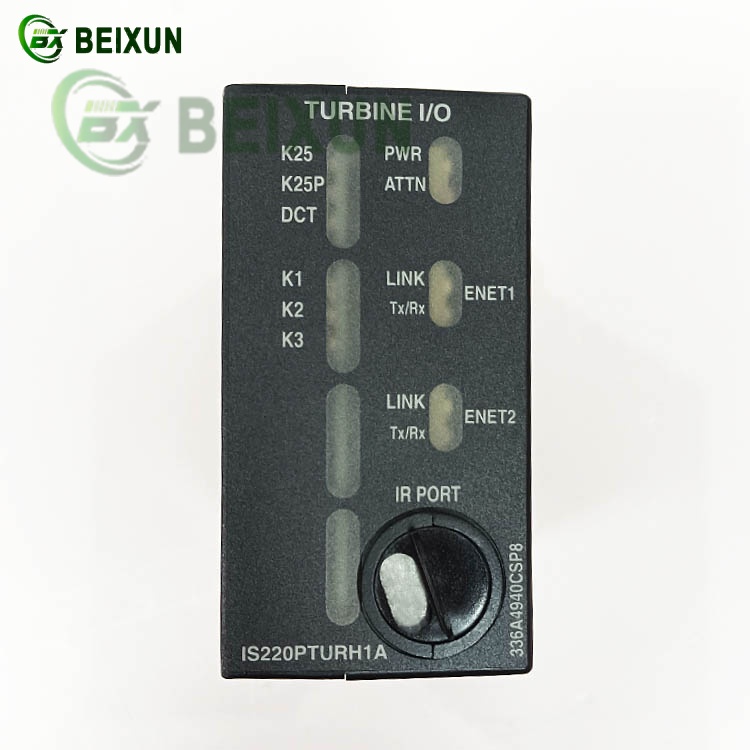

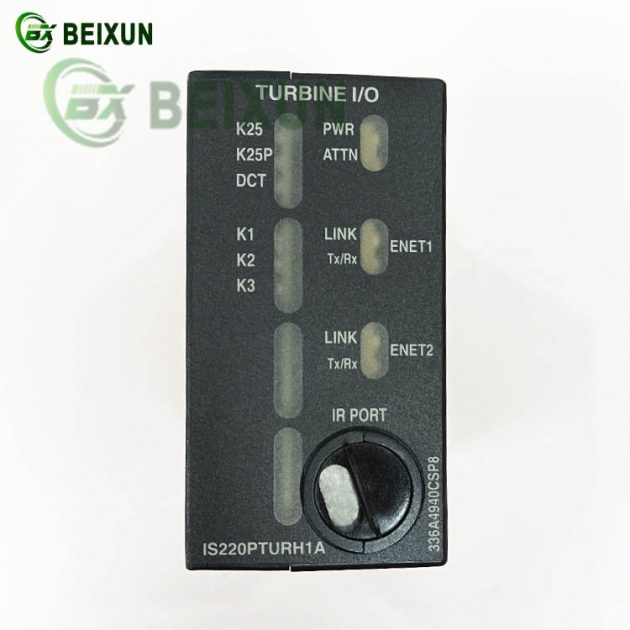

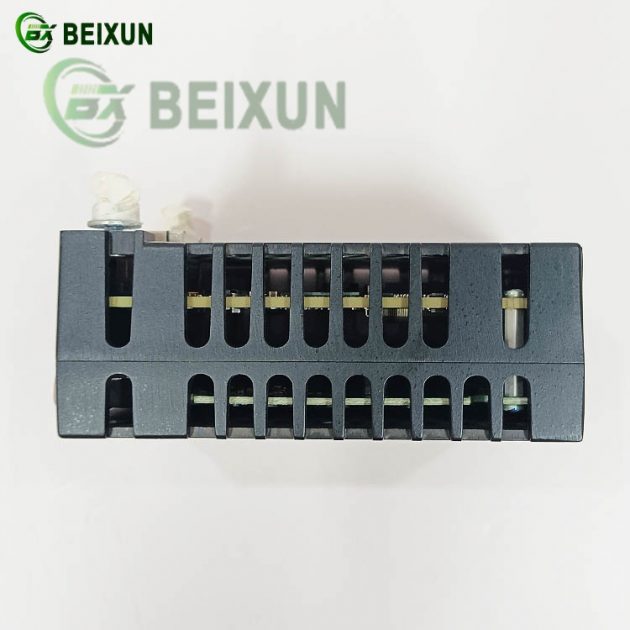

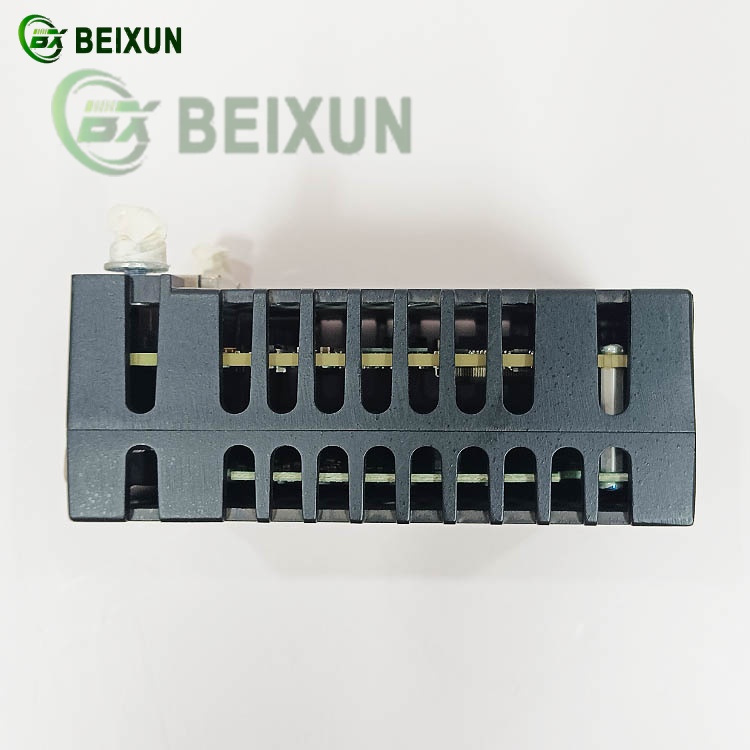

The GE IS220PTURH1A (336A4940CSP8) is a specialized Turbine I/O Module designed for the Speedtronic™ Mark VIe control system,
serving as a critical interface for turbine monitoring and control in industrial applications.
1. Primary Functions
Signal Processing & I/O Management:
Handles analog/digital input/output for turbine parameters (e.g., pressure, vibration, temperature, speed).
Interfaces with sensors (RTDs, LVDTs) and actuators to relay real-time data to the Mark VIe controller.
Redundancy & Reliability:
Supports TMR (Triple Modular Redundant) configurations for fail-safe operation in critical turbine protection systems.
Ensures continuous operation even during partial system failures.
Integration & Communication:
Connects to the Mark VIe controller via ISBus for seamless data exchange.
Compatible with ControlST software for configuration, diagnostics, and troubleshooting.
2. Technical Specifications
Isolated Channels: Provides noise-resistant signal conditioning for high accuracy.
Diagnostics: Includes self-test capabilities and fault reporting for proactive maintenance.
Modular Design: Allows placement near turbine components to reduce wiring complexity.
3. Applications
Widely used in gas/steam turbines for power generation and industrial processes.
