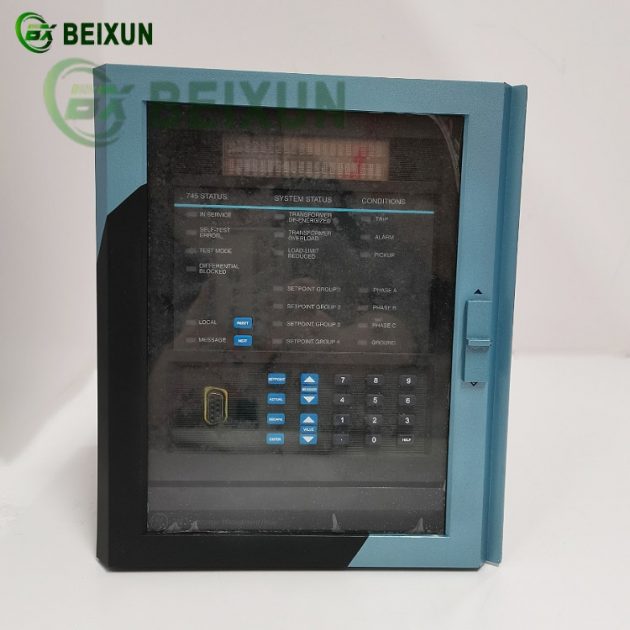

The GE Multilin SR745-W2-P1-G1-HI-A-L-R-E is a transformer management relay designed for comprehensive protection, monitoring, and control of power transformers.
Here’s its key role and functions in English:
1. Primary Functions of the SR745 Transformer Management Relay
Transformer Protection:
Detects and mitigates faults (e.g., overcurrent, differential, thermal overload, inrush restraint).
Includes differential protection (87T) to identify internal winding faults.
Thermal overload protection (49) to prevent insulation damage.
Monitoring & Metering:
Tracks real-time parameters (current, voltage, power, temperature, oil levels, etc.).
Records disturbances via event logs and oscillography.
Control & Automation:
Supports tap changer control (for voltage regulation).
Enables remote operation via communication protocols (Modbus, IEC 61850, DNP3).
Advanced Features:
Harmonics analysis (THD monitoring).
Load shedding capabilities during grid instability.
Breaker failure detection.
Communication & Integration:
Compatible with SCADA systems for grid management.
HMI interface for local configuration (via the SR745-CASE enclosure).
2. Key Applications
Power transformers in substations, industrial plants, or renewable energy systems.
Critical infrastructure requiring high reliability (e.g., utilities, data centers).

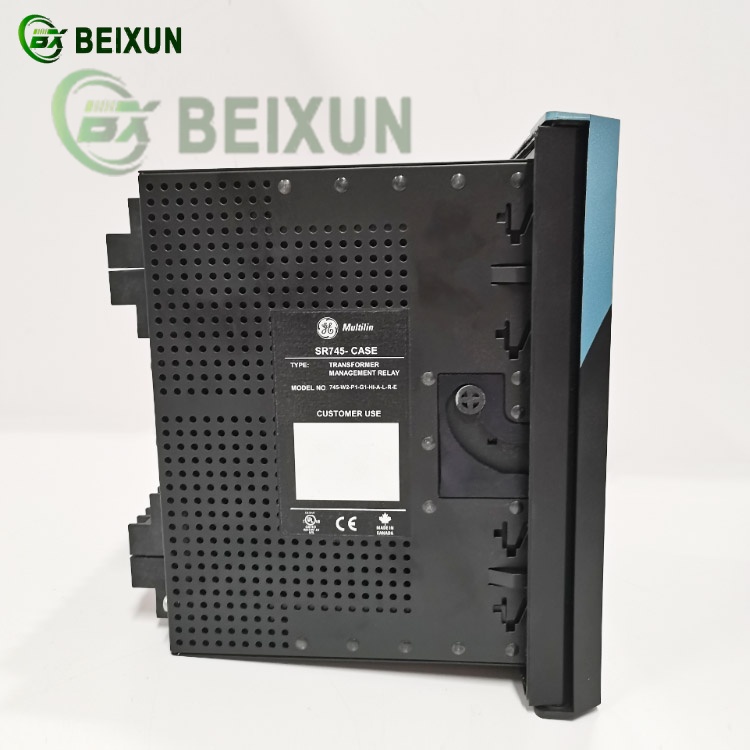

3. SR745-CASE
The Multilin CASE provides a rugged, standardized enclosure for easy mounting and environmental protection (e.g., dust, moisture).
This relay ensures safe, efficient, and automated transformer operation, reducing downtime and equipment damage.
