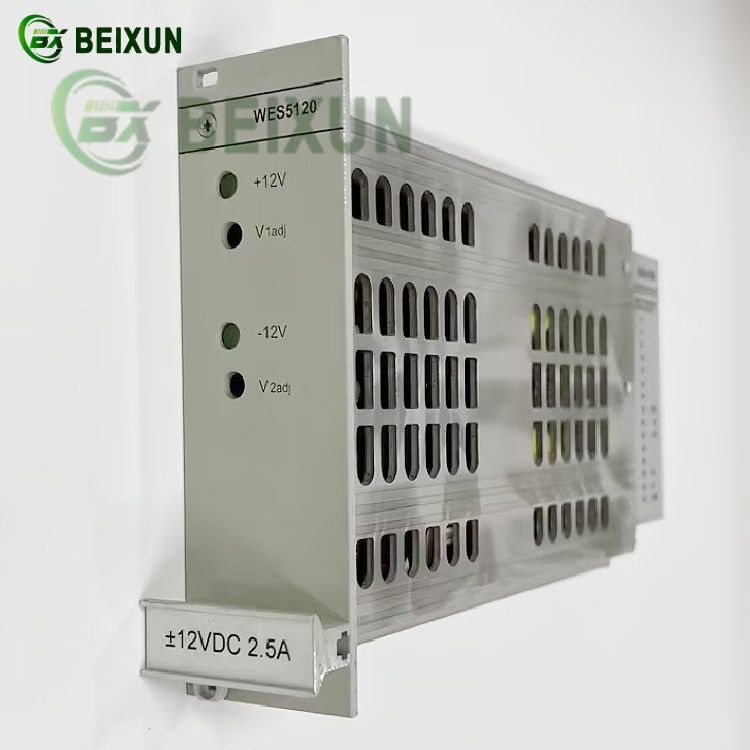

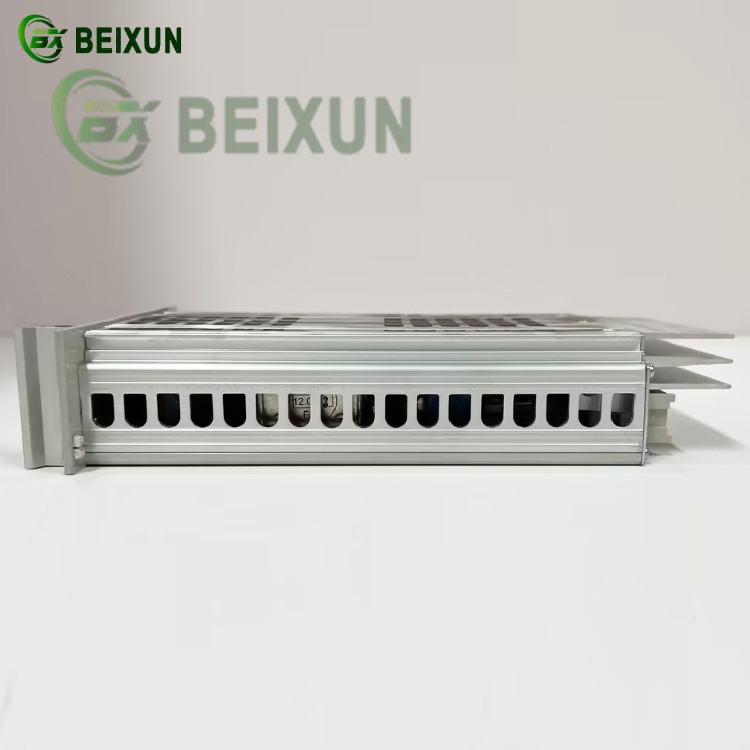

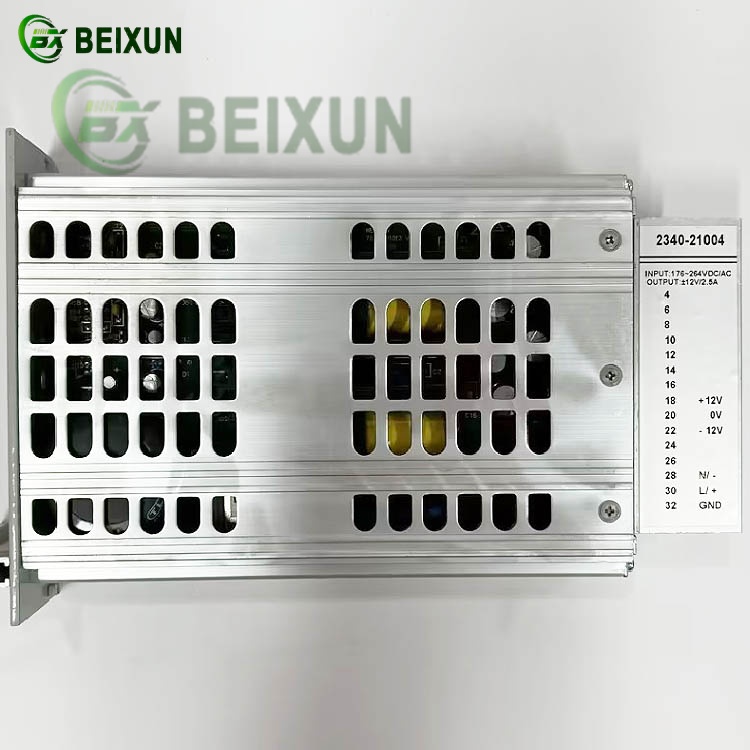

GE WES5120 2340-21004 Field Controller Master Unit Module

The ‌GE WES5120 (2340-21004) Field Controller Master Unit Module‌ is a ‌central control module‌ designed for industrial automation and process control applications,
primarily within GE’s ‌Mark VIe‌ or ‌Mark VIeS‌ turbine control systems.

1. Key Functions‌

Master Controller‌:
Acts as the primary processing unit for turbine/plant control logic, coordinating I/O modules and safety systems.

Real-Time Processing‌:
Executes high-speed control algorithms for ‌speed, load, and sequencing‌ in gas/steam turbines.

Redundancy Support‌:
Can be configured in ‌dual or triple-redundant (TMR) setups‌ for fault tolerance.

Network Communication‌:
Interfaces with ‌Ethernet (TCP/IP), PROFIBUS, or Modbus‌ for SCADA/HMI integration.

2. Applications‌

Power Generation‌:
Controls GE ‌Frame 5/6/7/9‌ turbines in combined-cycle or peaking plants.

Oil & Gas‌:
Manages compressor drives and safety shutdown systems.

Industrial Processes‌:
Used in large-scale automation (chemical, pulp & paper).

3. Technical Specifications‌

Processor‌:
High-performance embedded CPU (PowerPC or similar).

Memory‌:
Flash storage for firmware/configuration, RAM for runtime execution.

I/O Expansion‌:
Supports ‌<IS200/IS215> series I/O modules‌ (analog, digital, and specialty cards).

Certifications‌:
Compliant with ‌IEC 61511‌ (functional safety) and ‌UL/cUL‌ standards.
