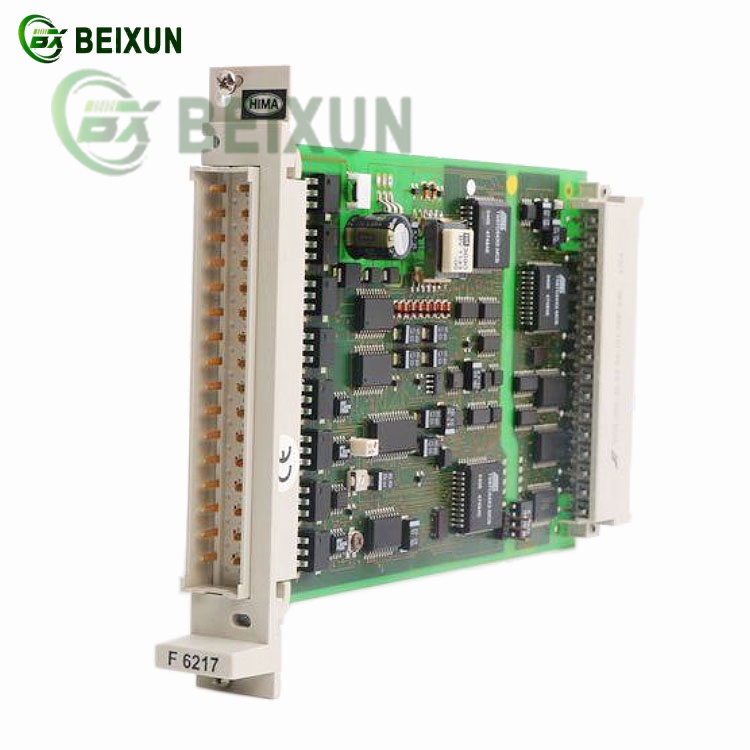

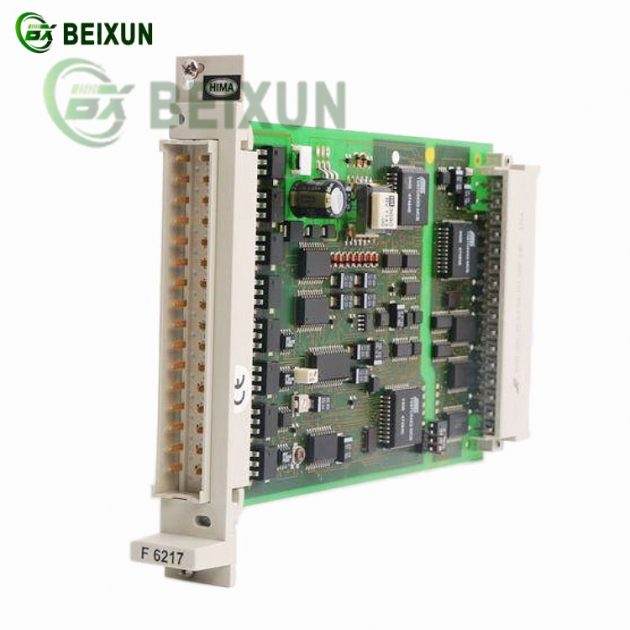

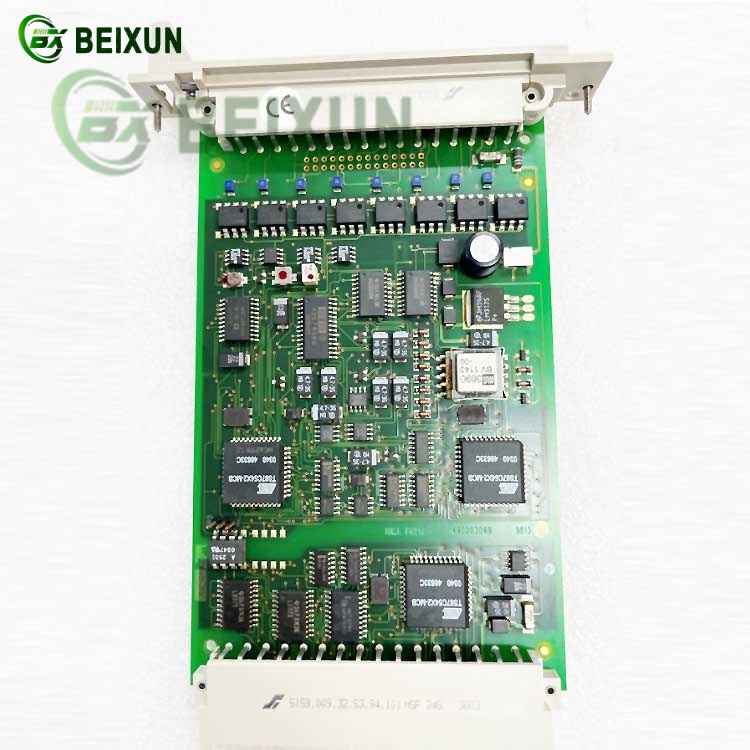

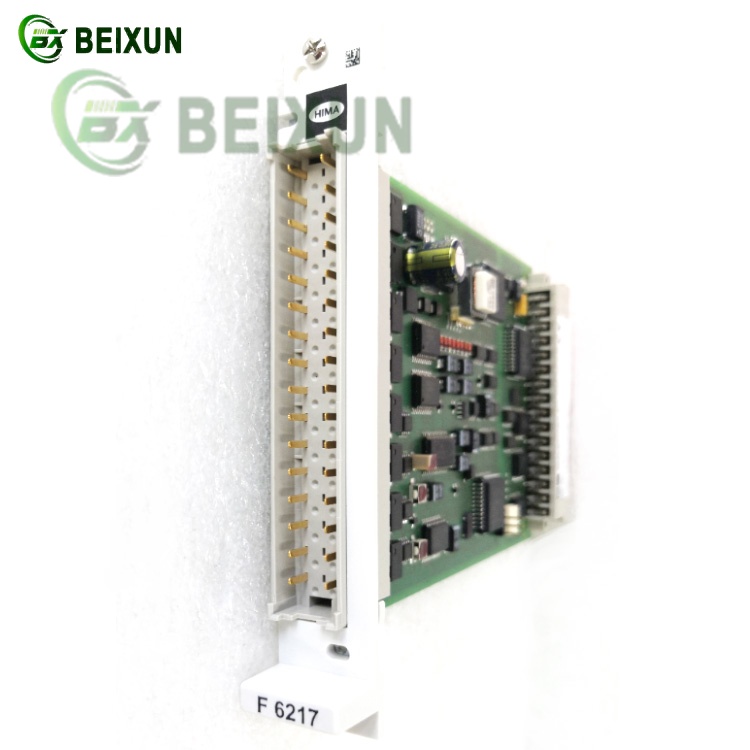

HIMA F6217 984621702 ANALOG INPUT MODULE Functions
1. High-Precision Signal Acquisition
Processes 8 analog inputs with 12-bit resolution for accurate measurement of current (0/4–20 mA) and voltage (0–5/10 V) signals from sensors (e.g., pressure transmitters, temperature probes);
Features galvanic isolation to eliminate electromagnetic interference (EMI) and ensure signal integrity in noisy industrial environments;
2. Safety-Critical Compliance
Certified for AK6/SIL3 safety standards (IEC 61508) to execute safety functions in emergency shutdown (ESD) and fire & gas systems (FGS);
Monitors critical parameters (e.g., overpressure, temperature thresholds) and triggers failsafe actions within milliseconds to prevent hazards;
3. Industrial Environment Adaptation
Operates in 0°C to +60°C temperatures with IP67/IP20 protection for deployment in harsh settings like offshore platforms or chemical plants;
Supports 100 kΩ input resistance to minimize signal distortion and ensure stable data acquisition;
4. Diagnostic & Maintenance Features
Provides channel-level diagnostics (e.g., open-circuit detection) and LED status indicators for real-time fault monitoring;
Modular design enables hot-swappable replacement to reduce system downtime during maintenance;
5. Application Scenarios
Oil & Gas: Pressure monitoring in pipelines and safety shutdown logic for LNG terminals;
Power Generation: Voltage/current measurement for turbine control systems;
Manufacturing: Precision signal acquisition in CNC machinery and robotic assembly lines;
This module integrates high-resolution analog input processing with SIL 3-certified safety logic, serving as a critical interface for industrial automation and safety instrumented systems (SIS).
