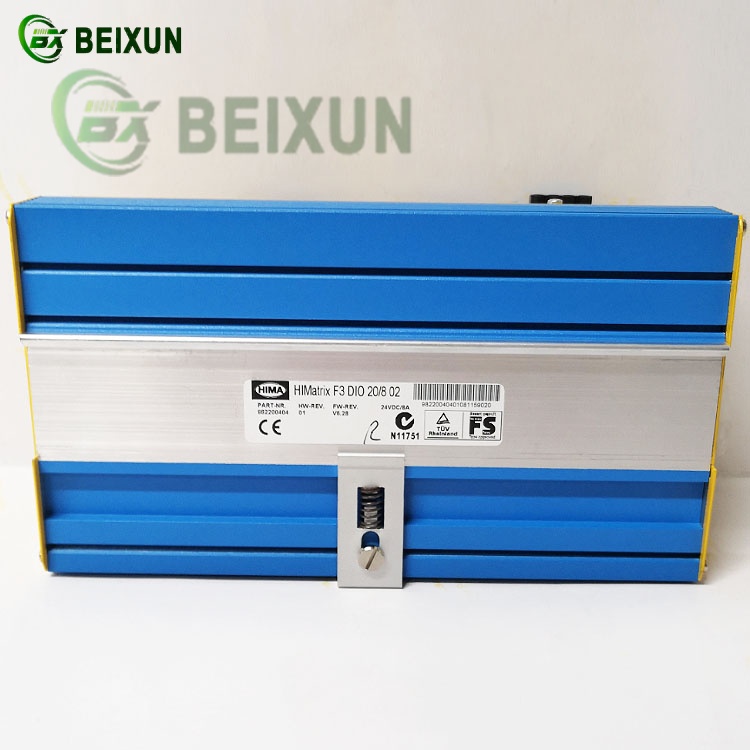

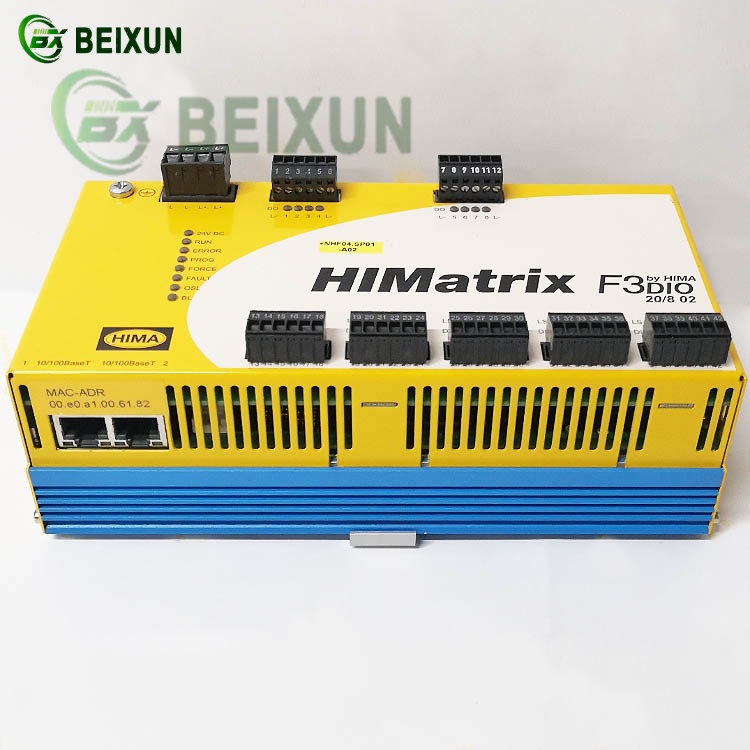

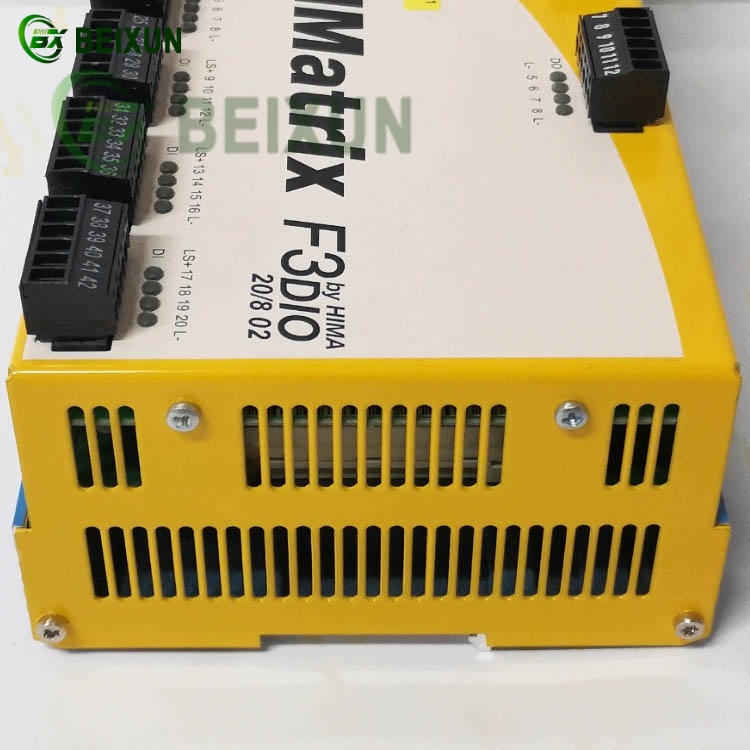

HIMA HIMatrix F3 DIO 20/8 02 Digital I/O Module Functions
1. High-Density Signal Processing
20 digital inputs for real-time monitoring of sensors, switches, and emergency signals (e.g., fault alarms, valve statuses);
8 digital outputs for controlling actuators, relays, and safety-critical devices (e.g., shutdown valves, motor starters);
Supports 24V DC signals and integrates galvanic isolation to prevent electrical interference;
2. Industrial Robustness & Reliability
Operates in -40°C to +70°C extremes, suitable for offshore platforms, chemical plants, and Arctic environments;
IP20 protection and vibration-resistant design (up to 5g) for harsh industrial settings;
Redundant power supply options and short-circuit/overload protection for fail-safe operation;
3. Safety-Critical System Integration
Complies with IEC 61508 SIL 3 and IEC 61511 for safety instrumented systems (SIS);
Enables emergency shutdown (ESD) and fire & gas system (FGS) integration through fault-tolerant signal routing;
Provides ≤10ms response time for critical safety actions, ensuring rapid hazard mitigation;
4. Diagnostic & Maintenance Features
Channel-level diagnostics (open-circuit, overcurrent detection) with real-time LED status indicators;
Hot-swappable design for module replacement without system downtime;
Compatible with HIMatrix configuration tools for simplified parameterization and testing;
5. Application Scenarios
Oil & Gas: Pipeline pressure monitoring, emergency shutdown valve control;
Power Generation: Turbine overspeed detection, circuit breaker actuation;
Manufacturing: Machine safety interlocks, robotic assembly line control;
Rail/Transport: Signal light control, track switch safety verification;
This module combines high-density I/O capability with certified safety performance, serving as a critical interface for safety systems in demanding industrial environments.
