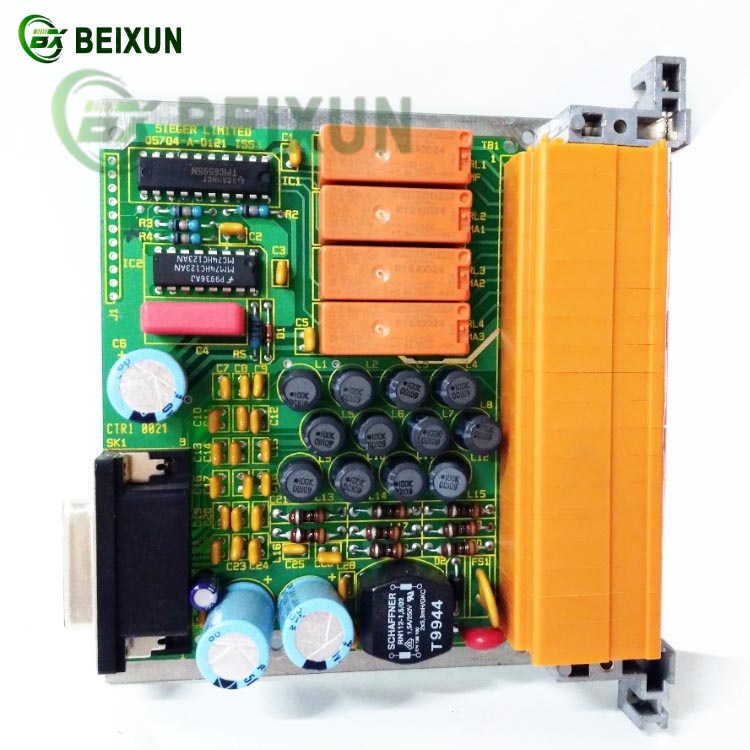

HONEYWELL 05704-A-0121 Quad Relay Interface Card Functions
1. Multi-Channel Relay Control
Provides four independent relay channels for switching high-power devices (e.g., motors, valves, alarms) using low-voltage control signals, enabling precise control in industrial automation systems;
Supports both normally open (NO) and normally closed (NC) configurations for flexible integration into safety and operational circuits;
2. System Integration & Compatibility
Designed for use with Honeywell’s System 57 Series control racks (e.g., 5704 platforms), ensuring seamless interoperability with fire/gas detection and process safety systems;
Features isolated input/output channels to prevent electrical interference and enhance signal integrity;
3. Industrial Safety & Automation Applications
Enables emergency shutdowns, alarm activation, or equipment isolation in hazardous environments such as oil refineries, chemical plants, and power generation facilities;
Facilitates redundant control strategies by coordinating multiple relays for fail-safe operation in mission-critical scenarios;
4. Durability & Protection Features
Built to withstand harsh industrial conditions, including temperature extremes (-40°C to +70°C) and high EMI environments;
Includes overload and short-circuit protection to safeguard both the card and connected equipment;
This interface card combines multi-channel reliability, industrial-grade robustness, and safety-focused design, making it essential for systems requiring precise, high-integrity relay control.
