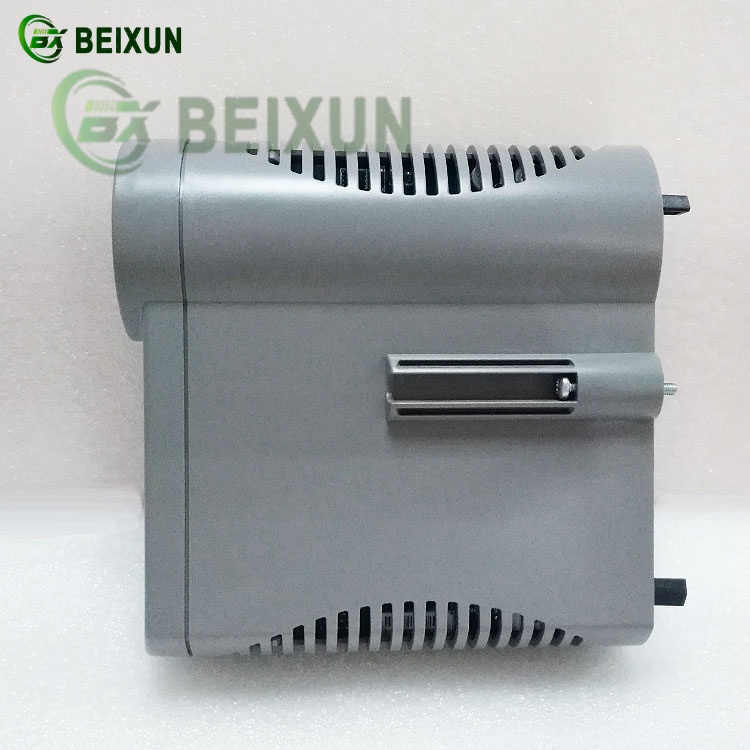

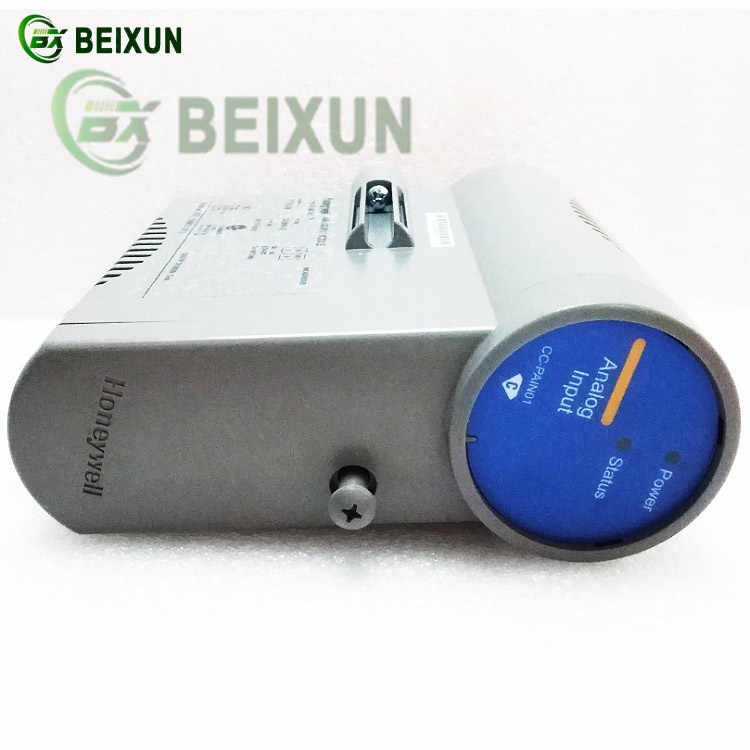

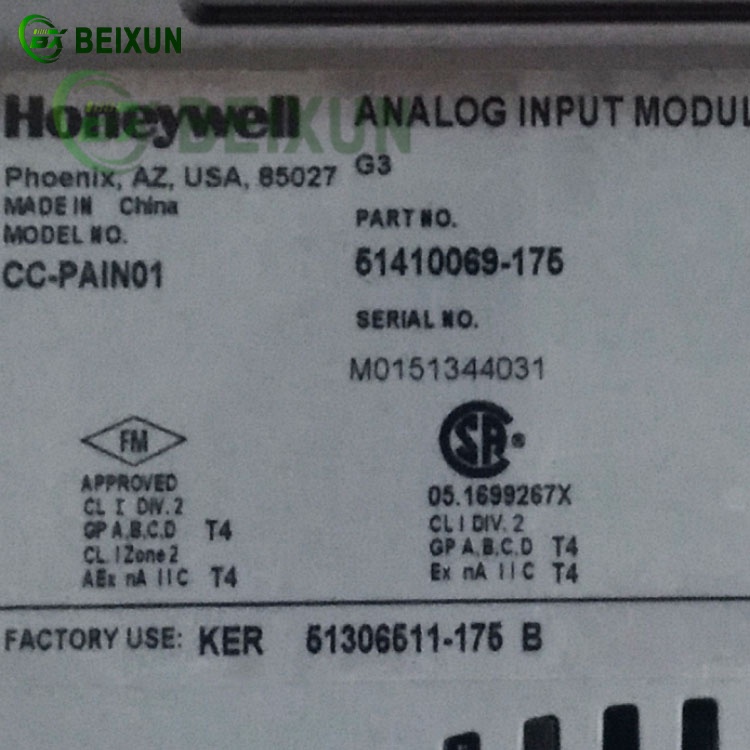

HONEYWELL CC-PAIN01 51410069-175 ANALOG INPUT MODULE (C300 System) Functions
1. High-Density Analog Signal Acquisition
Processes 8 analog input channels supporting 4-20mA, 0-10V DC, RTD, or thermocouple signals for measuring variables like temperature, pressure, and flow;
Delivers 16-bit resolution with ≤±0.05% accuracy for precision data conversion in critical control loops;
2. Seamless C300 Controller Integration
Directly interfaces with Honeywell C300 Process Controller via modular backplane, enabling real-time data exchange for distributed control system (DCS) architectures;
Compatible with Experion PKS for centralized monitoring and automation in complex industrial processes;
3. Enhanced Diagnostics & Fault Tolerance
Detects open/short circuits, signal drift, and over-range conditions, triggering alarms for rapid troubleshooting;
Supports hot-swappable replacement and optional redundant I/O pairs to minimize downtime in mission-critical applications;
4. Industrial Robustness & Compliance
Operates in -40°C to +70°C environments with IP20 protection, resistant to electrical noise and vibrations;
Complies with SIL 2 safety standards and ATEX/IECEx certifications for hazardous area deployment;
5. Key Applications
Oil & Gas: Wellhead pressure monitoring and refinery temperature control;
Chemical Processing: Batch reactor pH/level measurement and safety interlocks;
Power Plants: Boiler feedwater flow monitoring and turbine efficiency optimization;
Designed for the Honeywell C300 platform, this module ensures reliable, high-fidelity analog data acquisition in safety-critical industrial automation systems.
