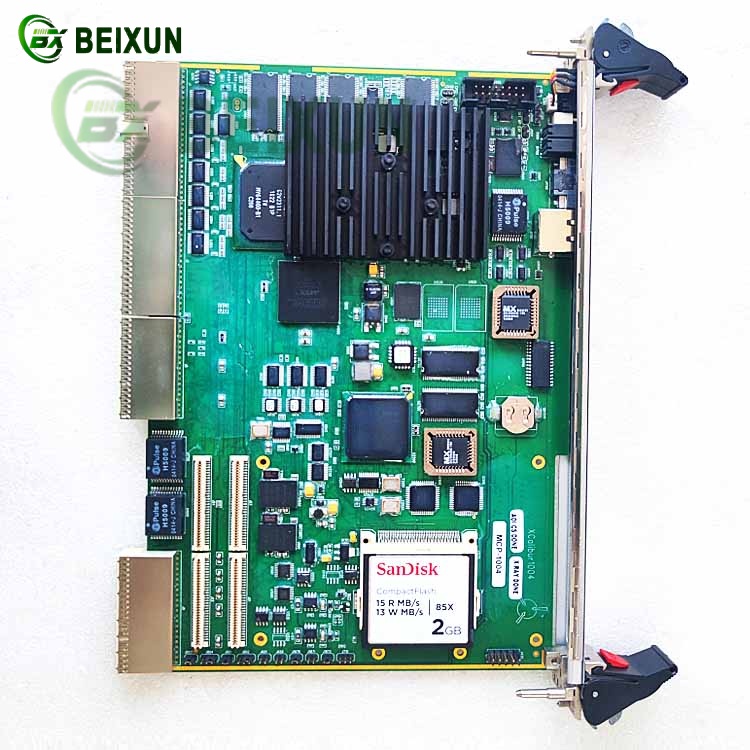

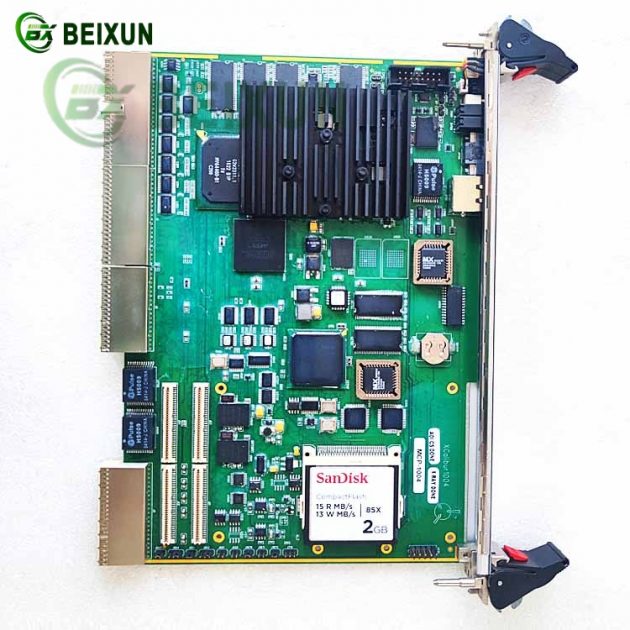

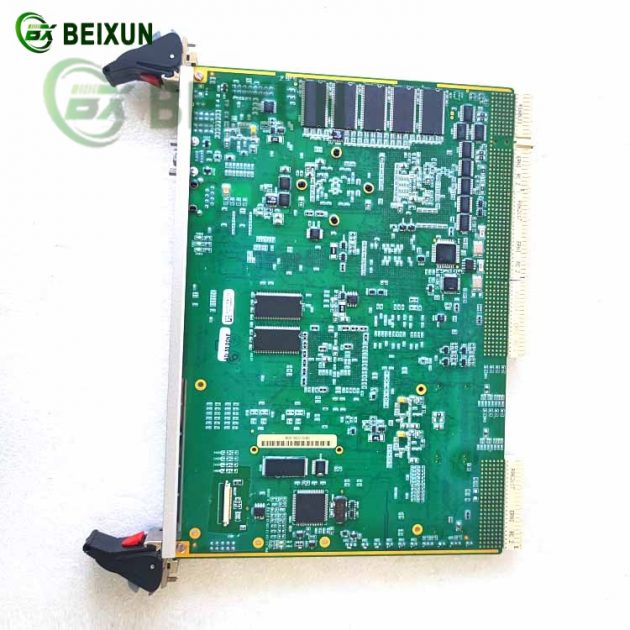

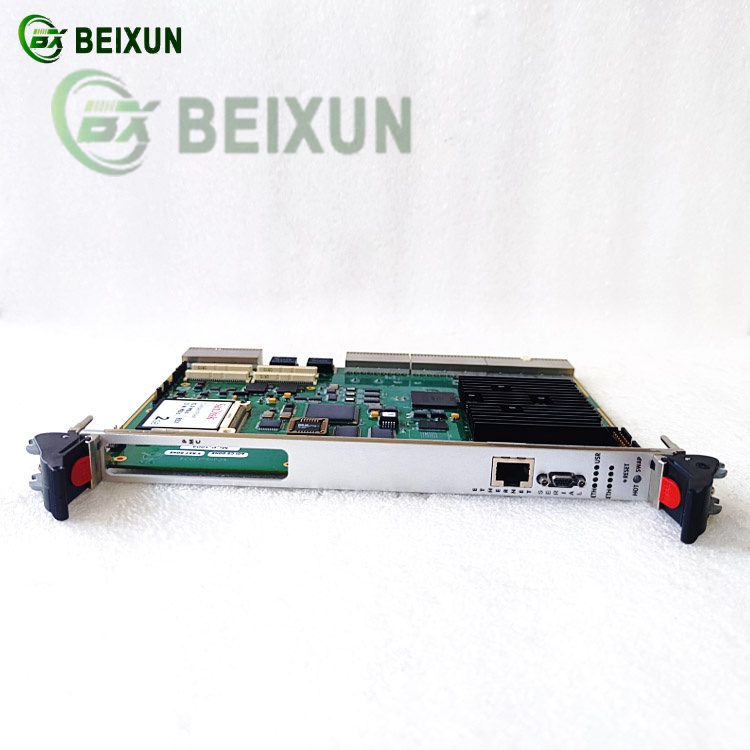

The HONEYWELL CCC MCP-1004 Control Board (manufactured by Compressor Controls Corporation, CCC) is a high-performance industrial control module designed for turbomachinery and compressor systems.
Below are its key functions and technical specifications:
1. Primary Functions
Core Processing Unit:
Acts as the main processor (CPU module) for compressor control systems, executing real-time algorithms to optimize performance and efficiency.
Supports IEC 61131-3 standard programming languages (e.g., ladder logic, structured text) for custom control logic, eliminating the need for external PLCs.
System Integration:
Interfaces with Prodigy® control platforms to manage gas turbines, compressors, and auxiliary machinery in simplex or duplex configurations.
Facilitates high-speed data exchange with I/O modules and field devices via industrial communication protocols.
Performance Optimization:
Implements advanced cooling technologies to maintain thermal stability under heavy computational loads.
Ensures tight compressor control to maximize production efficiency while minimizing energy consumption.
2. Technical Specifications
Hardware: 1 GHz processor for real-time control tasks.
Compatibility: Integrates with Honeywell DCS and CCC’s Prodigy® systems.
Reliability: Designed for 24/7 operation in harsh industrial environments (e.g., oil/gas, power plants).
3. Applications
Oil & Gas: Centrifugal/reciprocating compressor control.
Power Generation: Turbine-driven compressor management.
