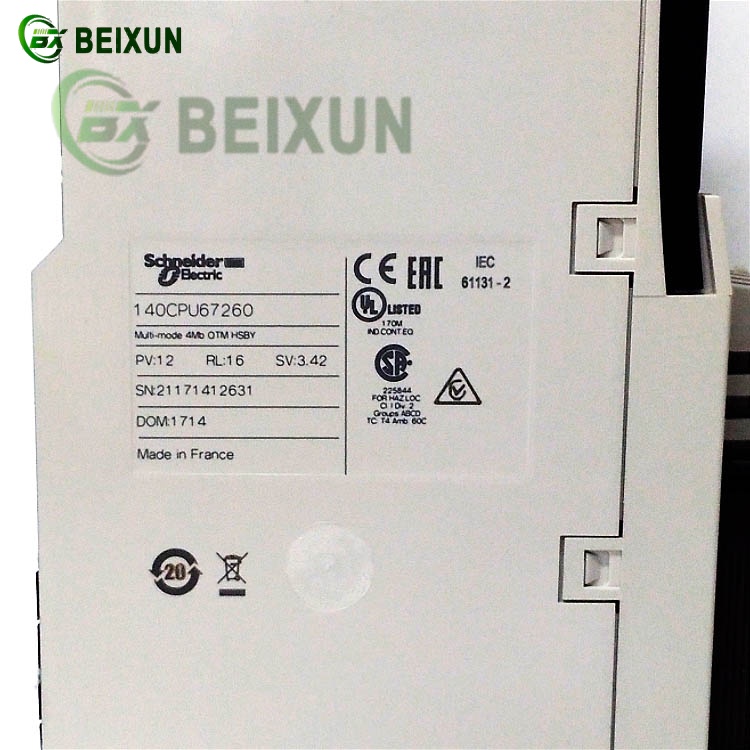

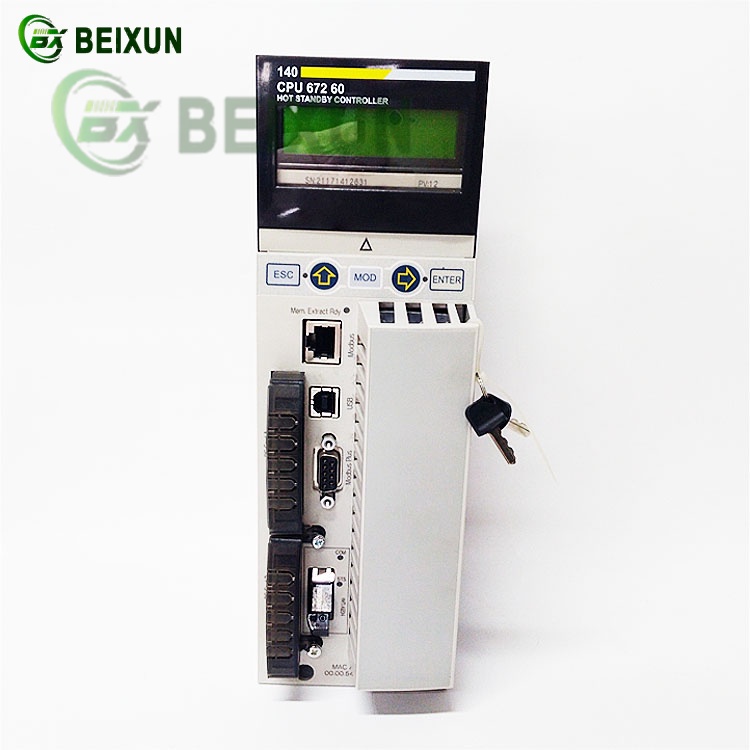

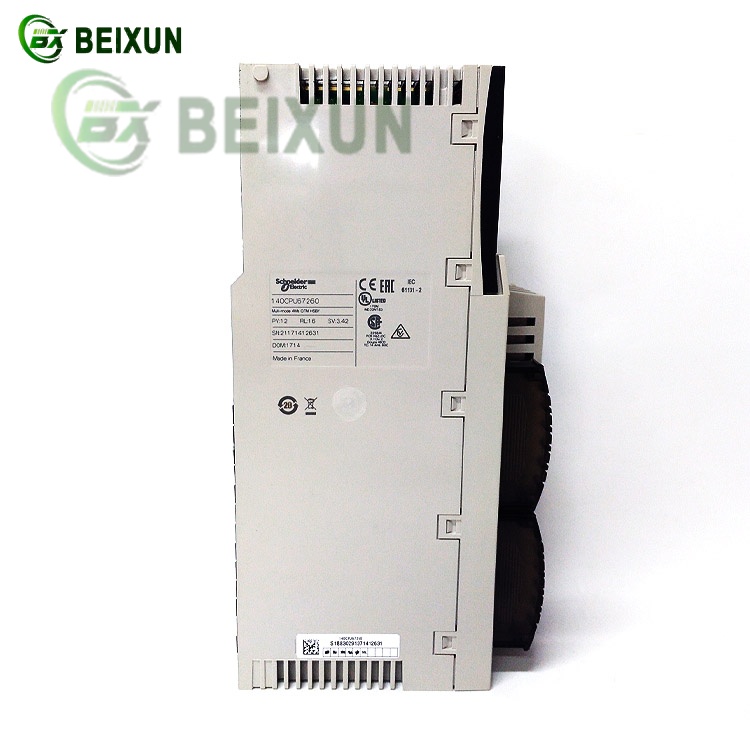

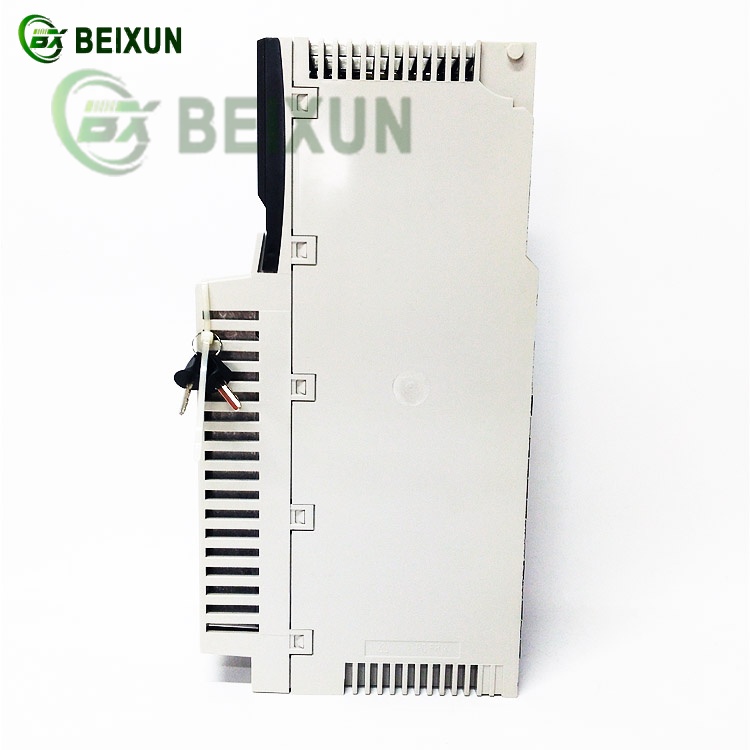

The Schneider Electric 140CPU67260 Unity Hot Standby Processor (part of the Modicon Quantum series with Unity Pro compatibility) is a high-reliability programmable logic controller (PLC) designed for mission-critical industrial automation systems. Its primary purpose is to ensure uninterrupted operation through seamless redundancy.
Key functions and features include:
1. Core Functions
Hot Standby Redundancy
Operates in a primary/backup configuration where the secondary CPU synchronizes in real time with the primary. If the primary fails, the backup takes over within milliseconds, eliminating downtime in critical processes.
High-Speed Processing
Executes complex control logic and manages large I/O configurations (supports up to 64,000 I/O points) for demanding industrial applications.
Advanced Communication
Integrates with Modbus, Modbus TCP/IP, and Ethernet Global Data (EGD) for seamless connectivity across SCADA systems, HMIs, and distributed I/O networks.
Data Integrity and Security
Uses cyclic redundancy checks (CRC) and memory synchronization to ensure data consistency between redundant CPUs.
2. Technical Specifications
Processor Speed: 66 MHz to 1.2 GHz (varies by model), with 512 MB RAM and 256 MB Flash memory for program storage.
Redundancy Features:
Automatic switchover during power loss, hardware faults, or communication failures.
Supports redundant power supplies and network modules for full system resilience.
Environmental Durability: Operates in temperatures from -20°C to +60°C and withstands vibration/shock per IEC standards.
Software Compatibility: Programmable via Unity Pro software for logic development, diagnostics, and system configuration.
3. Applications
Oil & Gas: Controls refinery processes, pipeline monitoring, and emergency shutdown systems.
Power Generation: Manages turbine control, grid stability, and substation automation.
Manufacturing: Ensures continuity in automotive, chemical, and semiconductor production lines.
Transportation: Supports rail signaling, airport baggage systems, and tunnel ventilation controls.
The 140CPU67260’s robust redundancy architecture, high-speed performance, and industrial-grade reliability make it essential for sectors where system failures could lead to safety risks, production losses, or environmental hazards.
