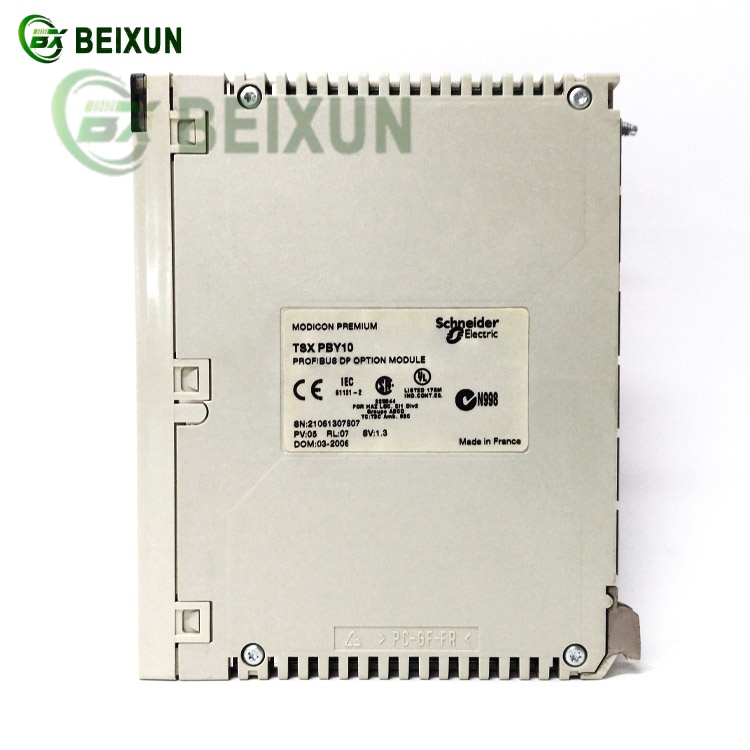

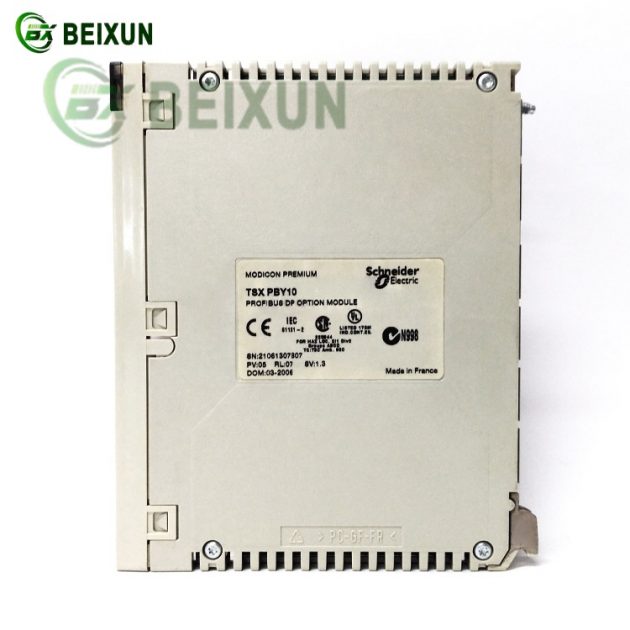

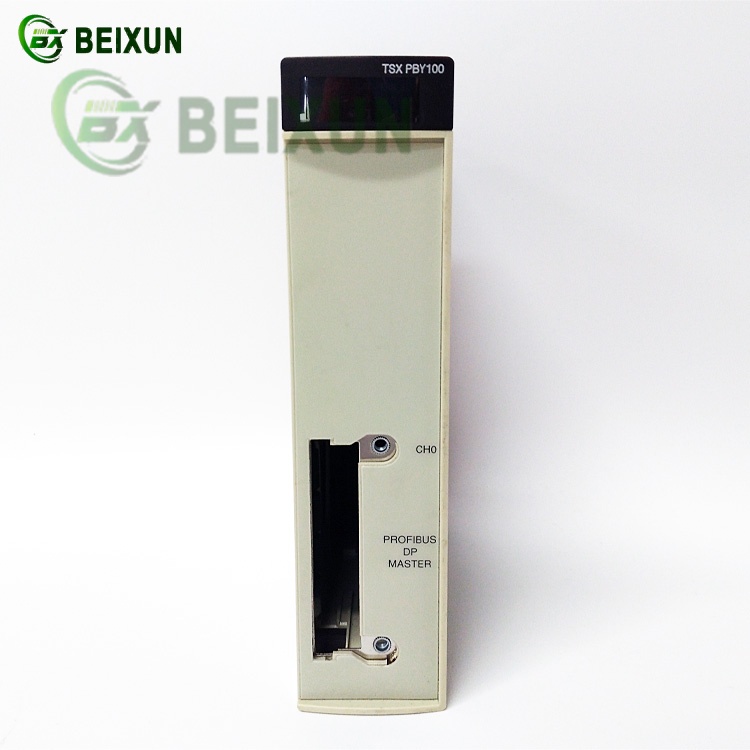

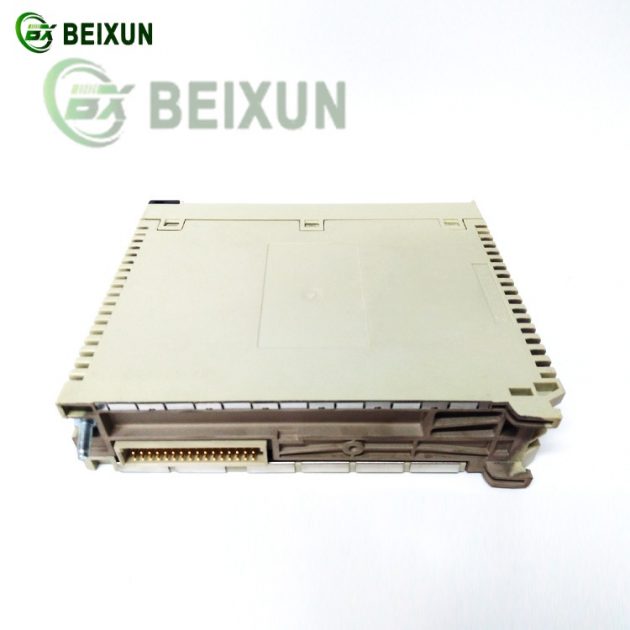

The SCHNEIDER TSXPBY100 Profibus DP Option Module serves as a high-performance communication interface between Premium PLCs (e.g., TSX/PCI 57) and Profibus DP networks, enabling seamless industrial automation integration.
Its key functions include:
1. Profibus DP Connectivity
Facilitates real-time data exchange between PLCs and distributed I/O devices (sensors, actuators) over a 12 Mbps bus.
Supports master-slave architecture with token-based access control for deterministic communication.
2. Industrial Automation Applications
Enables PLC-to-field-device communication for manufacturing, machine tools, and process control.
Integrates with third-party Profibus DP devices via GSD files, ensuring interoperability.
3. Flexible Installation & Configuration
Can be mounted in Premium PLC expansion slots (including PCMCIA) and supports T-branch connections for network scalability.
Requires sycon software for Profibus DP network configuration.
4. Key Features
High-speed cyclic data transfer for motion control and I/O synchronization.
Diagnostics & redundancy support for robust industrial operation.
This module is critical for real-time automation systems requiring reliable, high-speed fieldbus communication.
