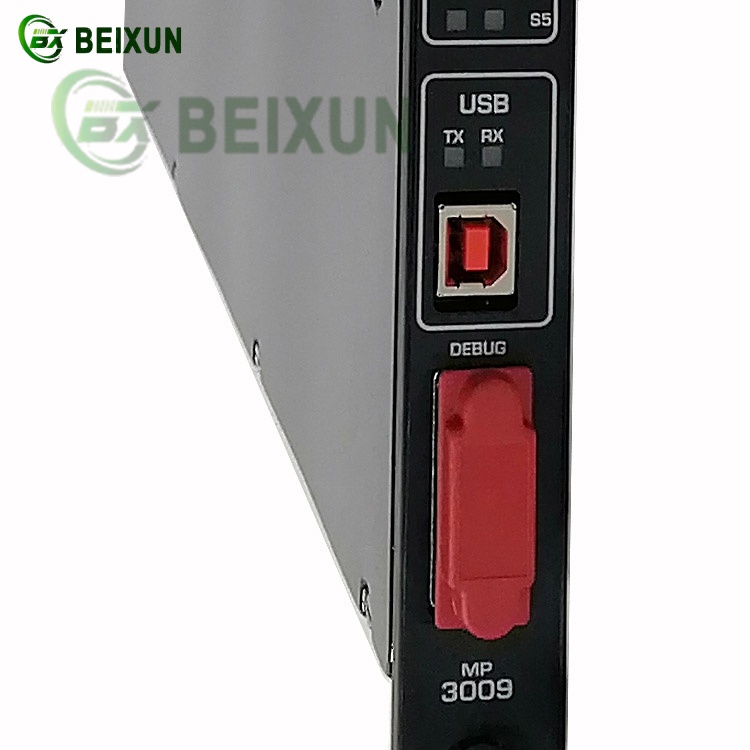

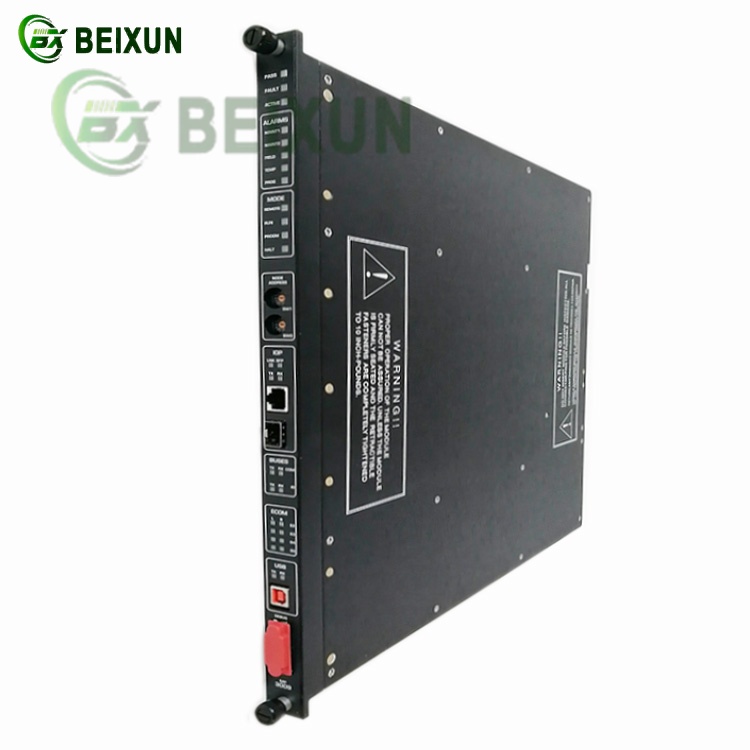

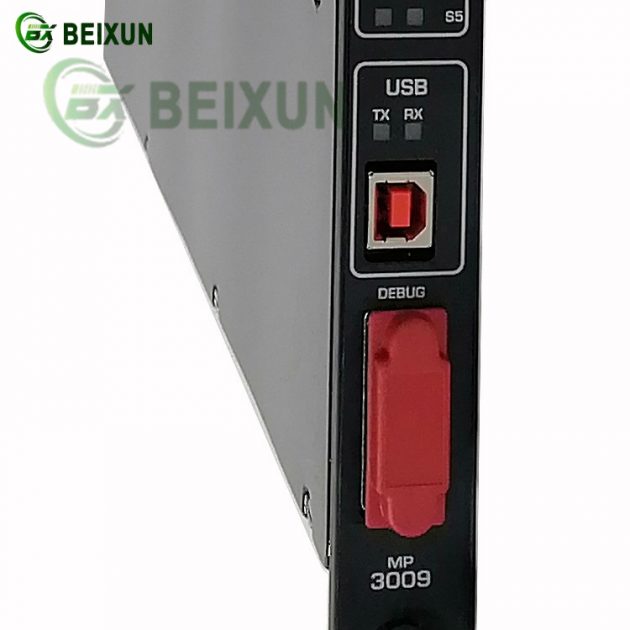

The TRICONEX 3009 Main Processor (MP3009) is a critical component in Triconex safety control systems, designed for high-reliability industrial automation and safety-critical applications.
Below is a detailed breakdown of its functions and features:
1. Core Functions
Triple Modular Redundancy (TMR):
Implements a three-channel redundant architecture to ensure continuous operation even if one channel fails.
Each of the three independent processors executes identical control logic, with voting mechanisms to detect and isolate faults.
Safety-Critical Control:
Executes control programs for Emergency Shutdown Systems (ESD), fire/gas detection (F&G), and process safety management.
Used in industries like oil/gas, chemical plants, and power generation to prevent catastrophic failures.
Distributed Processing:
Offloads I/O processing to dedicated modules (e.g., 3700 series AI modules), reducing main processor workload.
2. Key Features
High Reliability:
Operates in harsh environments (-40°C to 70°C) with robust electrical isolation and noise immunity.
Hot-Swap & Online Maintenance:
Supports module replacement without system shutdown, minimizing downtime.
Diagnostics & Fault Tolerance:
Real-time diagnostics detect hardware/software faults and trigger automatic redundancy切换.
3. Applications
Oil & Gas:
Controls ESD systems in refineries and offshore platforms.
Chemical/Petrochemical:
Manages high-risk reactor and compressor safety interlocks.
Power Generation:
Monitors turbines and nuclear reactor safety systems.
4. Advantages
Modular Design: Compatible with Triconex I/O modules (e.g., 3625 digital outputs, 3721 analog inputs).
Scalability: Supports up to 118 I/O modules per system.
For technical specifications, refer to manufacturer documentation.
