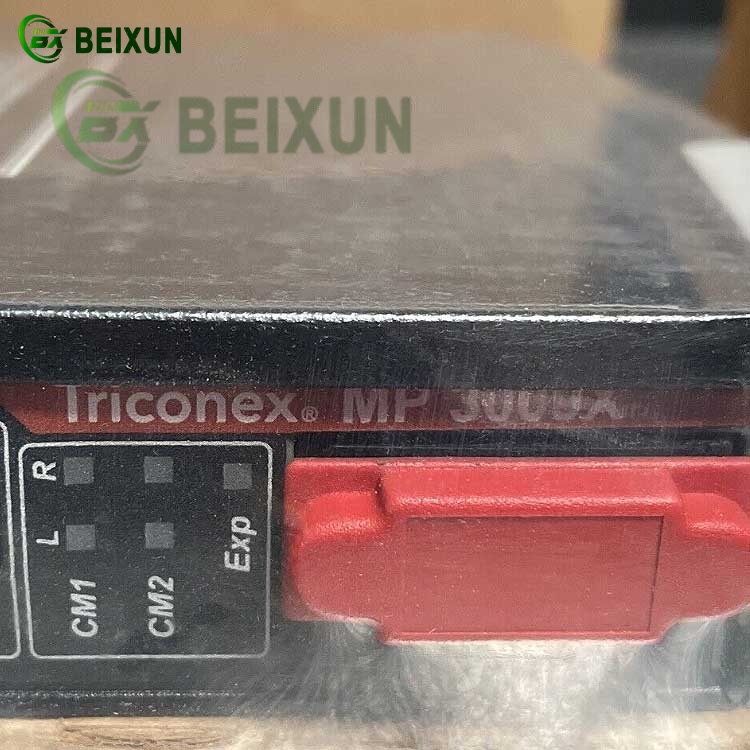

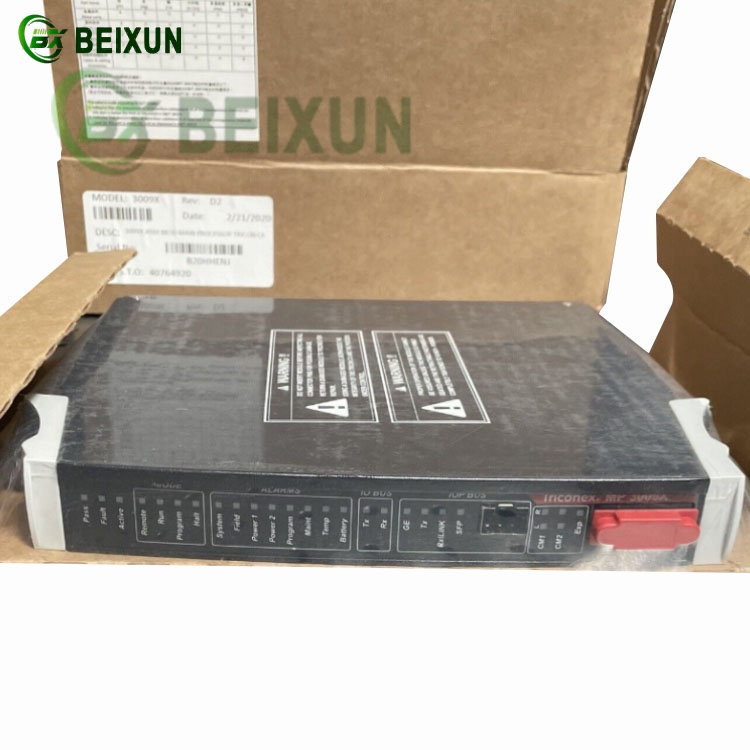

The TRICONEX 3009X Main Processor (MP3009X) is a high-reliability industrial control module designed for safety-critical applications, featuring Triple Modular Redundancy (TMR) architecture and robust fault tolerance.
Below is a detailed breakdown of its roles and characteristics:
1. Core Functions
Triple Modular Redundancy (TMR):
Employs three independent processors running in parallel, with voting logic to detect and isolate faults, ensuring continuous operation even during hardware failures.
Ideal for Emergency Shutdown Systems (ESD) and fire/gas detection (F&G) in hazardous environments.
Safety-Critical Control:
Executes control logic for critical processes in industries like oil/gas, chemical plants, and power generation.
Supports distributed control, offloading I/O processing to peripheral modules (e.g., 3700 series) for scalability.
2. Key Features
High Reliability:
Operates in extreme conditions (-40°C to 70°C) with electrical isolation and noise immunity.
Hot-Swap & Diagnostics:
Allows module replacement without downtime and provides real-time fault detection (e.g., PASS/FAULT indicators).
Cybersecurity:
Implements access control policies to restrict unauthorized PLC access, mitigating cyber threats.
3. Applications
Oil & Gas:
Controls ESD systems in refineries and offshore platforms.
Power Generation:
Monitors turbines and nuclear safety systems.
4. Advantages
Modularity: Compatible with Triconex I/O modules (e.g., 3625, 3721) for flexible expansion.
Lifetime Flexibility: Adaptable to evolving industrial needs through programmable parameters.
For technical specifications, consult manufacturer documentation.
