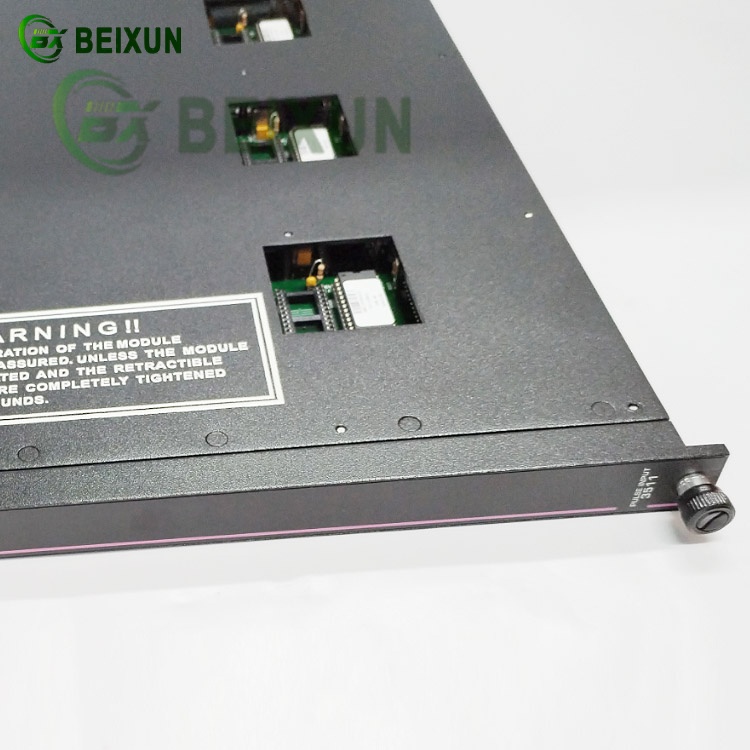

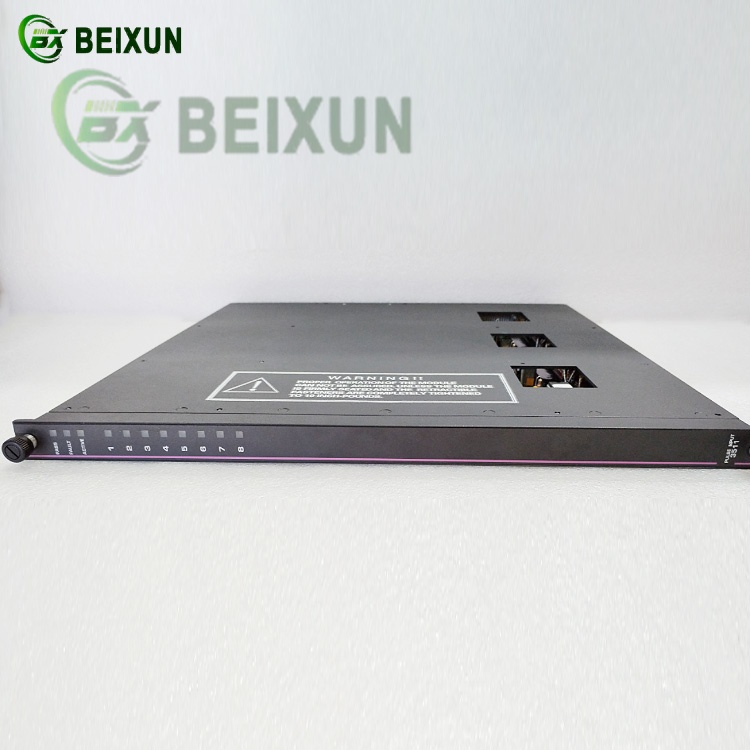

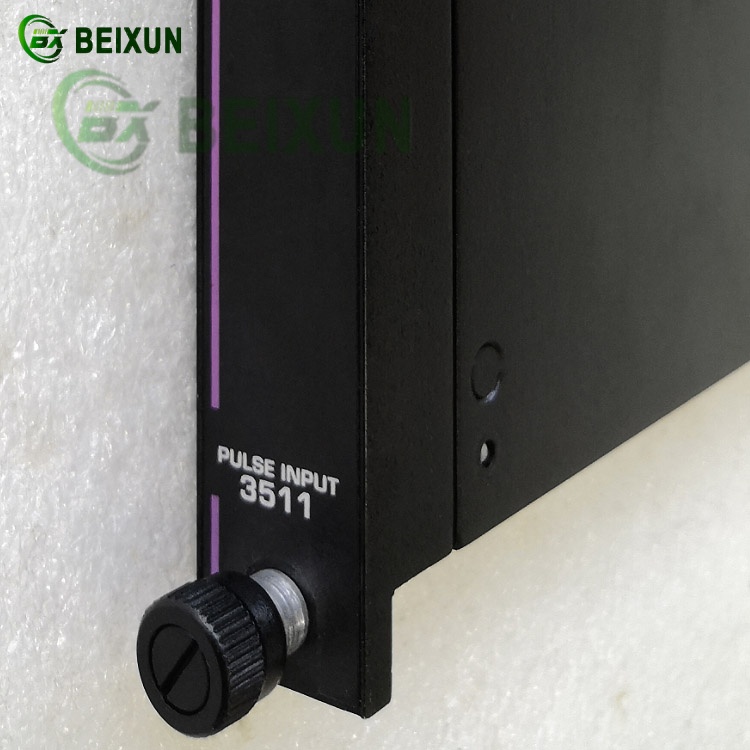

The TRICONEX 3511 Pulse Input Module is a specialized component within the Triconex safety control system, designed for high-reliability pulse signal processing in industrial environments.
Here’s a detailed breakdown of its functions and features:
1. Core Functions
Pulse Signal Acquisition:
Captures and processes pulse/frequency signals from sensors (e.g., flow meters, tachometers) with high precision.
Supports configurable over-acceleration thresholds (0–10,000 RPM/s) to trigger safety responses when thresholds are exceeded.
Triple Modular Redundancy (TMR):
Utilizes three independent processing channels for fault-tolerant signal validation, ensuring data integrity.
Real-Time Monitoring & Diagnostics:
Continuously monitors input status and detects faults (e.g., signal loss, noise interference), with LED indicators for troubleshooting.
2. Key Features
Industrial Robustness:
Operates in harsh conditions (e.g., oil/gas, power plants) with electrical isolation and noise immunity.
Programmable Logic:
Allows custom control logic implementation for tailored safety or process control applications.
Hot-Swap Capability:
Supports online replacement to minimize system downtime.
3. Typical Applications
Safety-Critical Systems:
Integrates into Emergency Shutdown Systems (ESD) to monitor rotational speed or flow rates, triggering shutdowns if thresholds are breached.
Process Control:
Used in turbine monitoring, pump control, and other high-speed equipment requiring frequency-based feedback.
4. Advantages

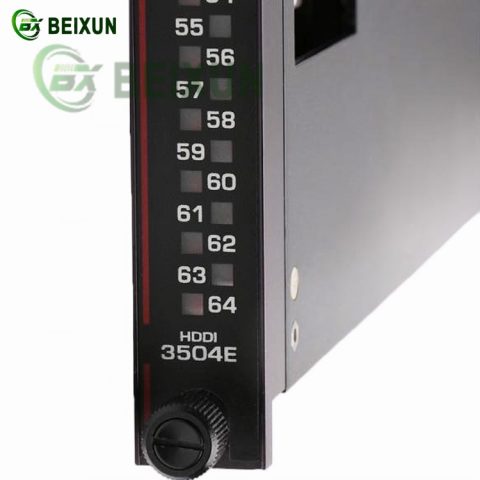

Compatibility: Works with other Triconex modules (e.g., 3504E, 3625) for scalable system design.
Certifications: Meets SIL3 standards for safety-critical applications.
For configuration details, refer to manufacturer documentation.
