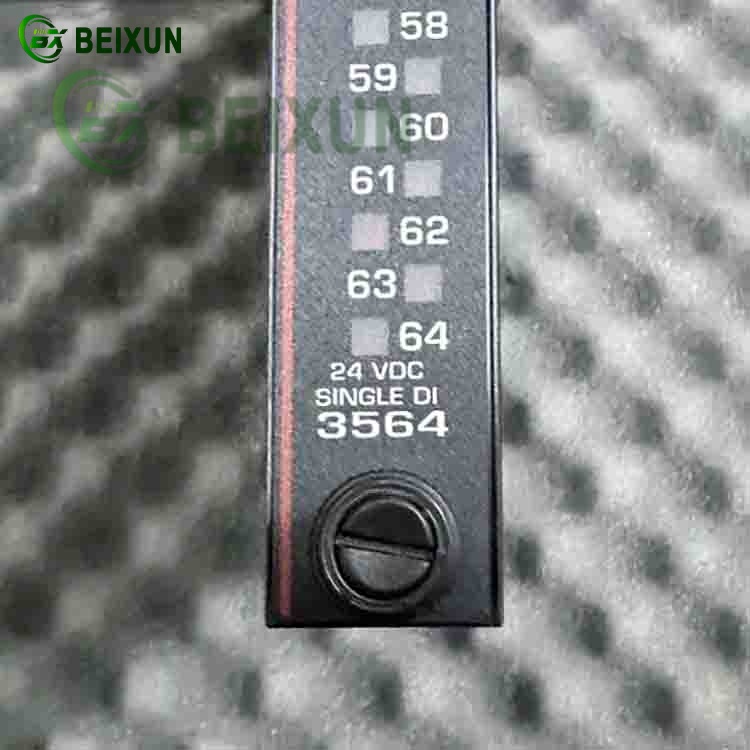

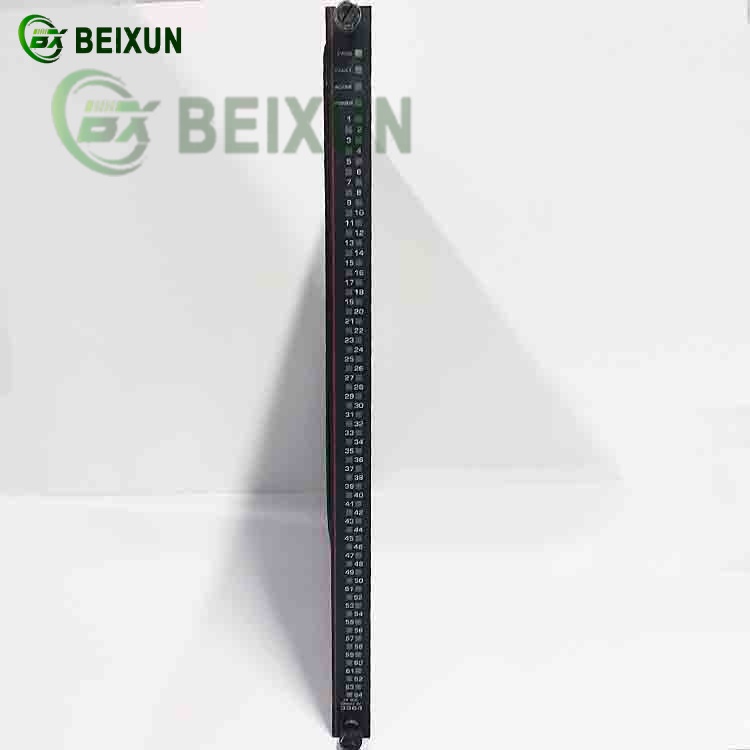

The TRICONEX 3564 Single Digital Input Module (DI3564) is a specialized safety-critical component designed for industrial automation and control systems.
Here’s a detailed breakdown of its functions and features:
1. Core Functions
Single-Channel Digital Signal Acquisition:
Monitors switch status or digital signals from external devices (e.g., emergency stop buttons, limit switches) with high reliability.
Supports dry contact or 24VDC wet contact input types, adaptable to diverse industrial sensors.
Safety-Critical Signal Processing:
Integrates with Triconex Safety Instrumented Systems (SIS) to trigger safety responses (e.g., emergency shutdowns) based on input state changes.
Real-Time Diagnostics:
Detects faults like open circuits, short circuits, or signal anomalies, ensuring system integrity.
2. Key Features
High Reliability:
Designed for SIL3-certified applications, ensuring compliance with stringent safety standards.
Mechanical Keying:
Prevents incorrect module installation via physical slot-keying.
Status Indicators:
LED indicators for pass/fault/activity status per channel, enabling quick troubleshooting.
3. Typical Applications
Safety Systems:
Monitors emergency stop buttons in chemical plants or limit switches in machinery for fail-safe operations.
Industrial Automation:
Tracks equipment states (e.g., motor on/off) in production lines for precise control.
Power Systems:
Verifies circuit breaker positions in electrical grids to ensure operational stability.
4. Advantages
Compact Design: Optimized for cost-sensitive safety applications where space or budget constraints exist.
Compatibility: Works seamlessly with other Triconex modules (e.g., 3504E, 3604E) for system scalability.
For technical specifications, refer to manufacturer documentation.
