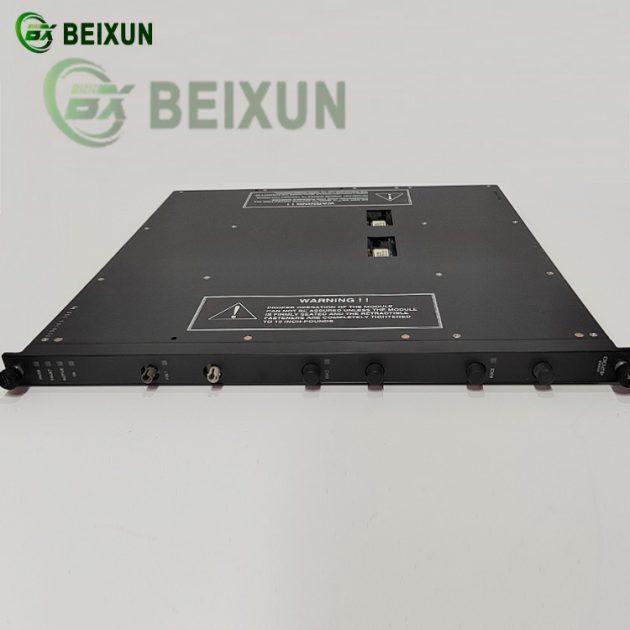

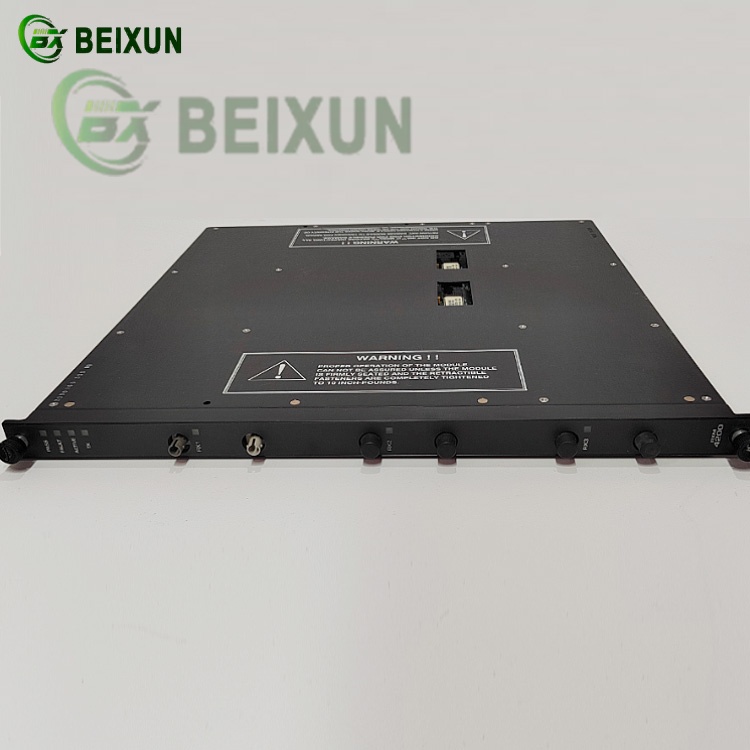

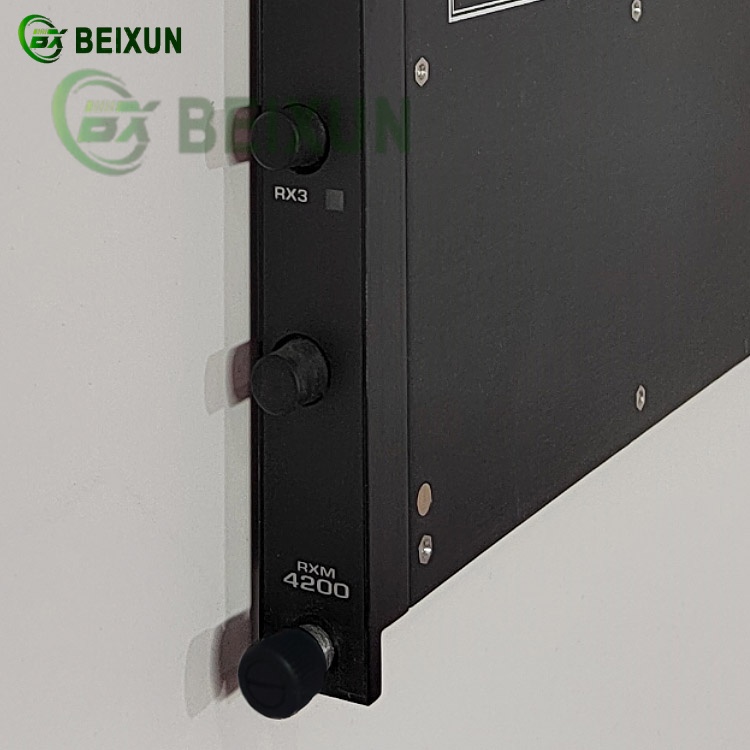

The TRICONEX 4200 (RXM4200) Remote Extender Module is a critical component in industrial control systems, designed for extended communication in safety-critical environments.
Its primary functions include:
1. Fiber-Optic Communication Extension
Enables long-distance communication (up to 7.5 miles/12 km) between the main Tricon chassis and expansion chassis via fiber-optic cables.
Provides electrical isolation to protect against electromagnetic interference (EMI) and ground loops.
2. System Expansion & Redundancy
Supports remote I/O modules placement up to 100 feet (30 meters) from the main chassis, with extended ranges up to 1,000 feet (300 meters) in restricted applications.
Facilitates modular system architecture for distributed control systems (DCS) and Safety Instrumented Systems (SIS).
3. Diagnostic & Safety Features
Integrates with Tricon diagnostics to monitor communication integrity and fault conditions.
Compatible with Tristation 1131 software for configuration and real-time monitoring.
4. Industrial Applications
Deployed in oil/gas, power plants, and chemical processing where hazardous environments demand robust communication.
Used with Tricon communication modules (TCM) for protocols like Modbus TCP and RS-485 serial communication.
5. Key Specifications
Fiber-optic interface for noise immunity.
Hot-swappable design for maintenance without downtime.
Wide operating temperature range suitable for harsh industrial conditions.
The RXM4200 ensures high availability and fault-tolerant communication in critical automation systems.
