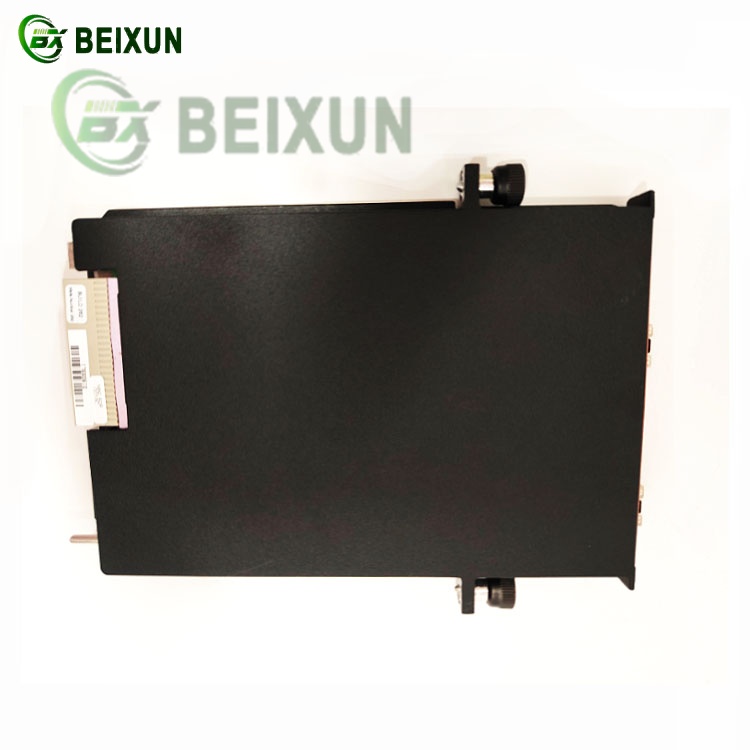

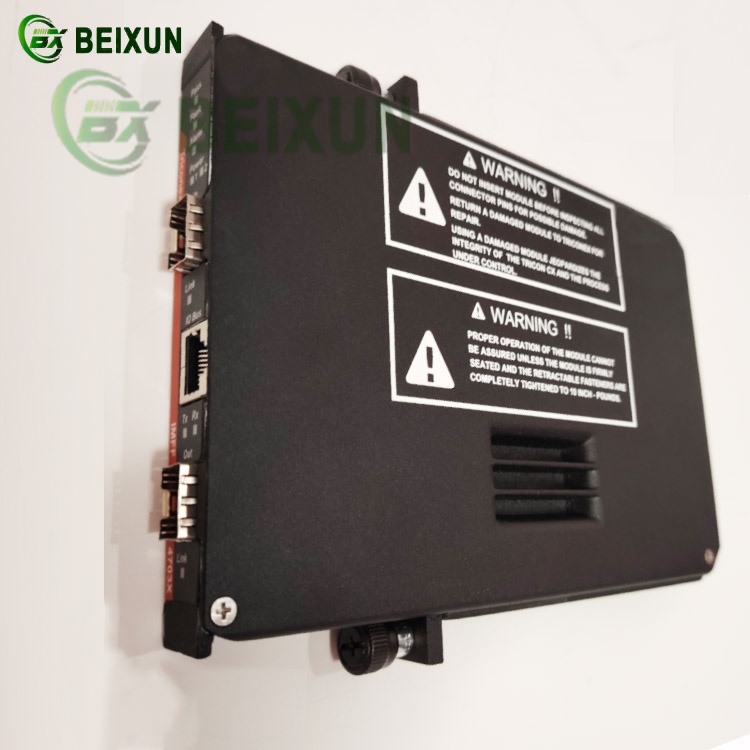

The TRICONEX 4703X (IMFF4703X) Digital Output Module is a high-reliability industrial control component with the following key functions and features:
1. Triple Modular Redundant (TMR) Architecture
Implements 3-channel redundancy for fault-tolerant digital signal output
Uses patented Quad Voter circuit to ensure safe operation even with two channel failures
2. Digital Output Capabilities
Provides isolated digital outputs for controlling actuators, relays, and safety-critical devices
Supports high-speed switching with <500 ms fault detection for stuck/channel failures
3. Advanced Diagnostics & Safety
Performs continuous Output Voter Diagnostics (OVD) to detect faults (e.g., stuck switches or driver circuit failures)
Activates visual/alarm indicators for channel-specific faults without module shutdown
4. Industrial Robustness
Features hot-swappable design for maintenance without system downtime
Includes mechanical keying to prevent incorrect installation in baseplates
5. Applications
Deployed in Safety Instrumented Systems (SIS) for oil/gas, power plants, and chemical processing
Compatible with 2401/2401L baseplates for standard or low-current applications
The module’s TMR voting logic and fail-safe diagnostics ensure compliance with IEC 61508 SIL standards.
