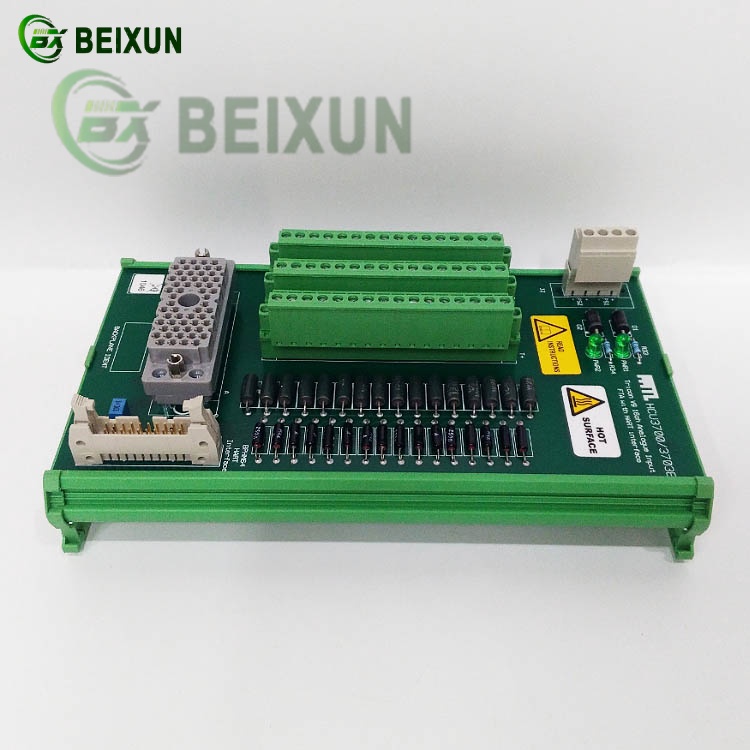

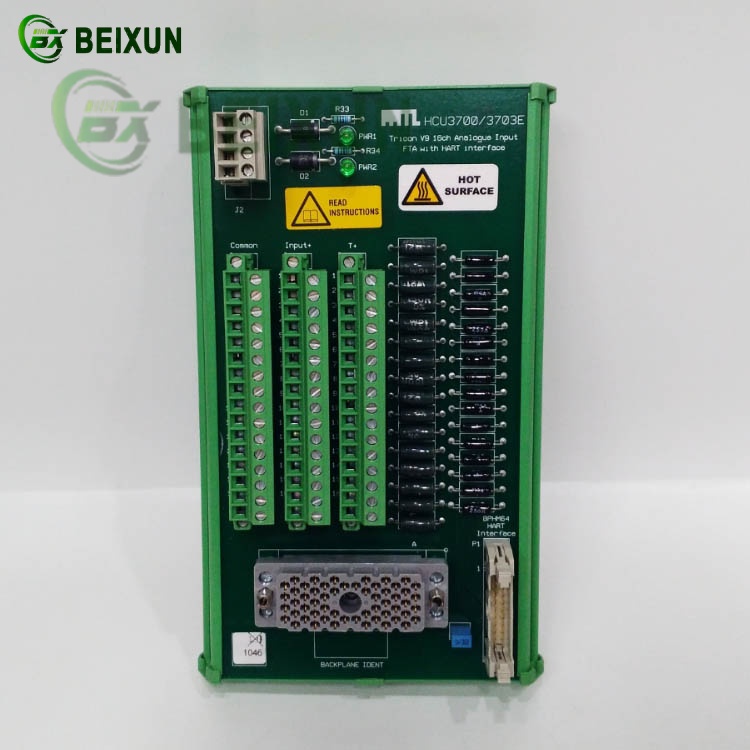

The TRICONEX HCU3700/3703E Analog Input FTA with HART Interface Module is a specialized industrial automation component with the following key functions and features:
1. Analog Signal Processing
Acquires 4-20mA analog signals from field sensors (e.g., pressure transmitters, temperature sensors) and converts them into digital data for Triconex controllers.
Integrates HART protocol support, enabling bidirectional communication with HART-enabled smart devices for configuration and diagnostics.
2. System Integration
Compatible with Triconex TMR (Triple Modular Redundant) systems, ensuring fault tolerance in Safety Instrumented Systems (SIS).
Interfaces with Tricon main processors (e.g., 3008, 4009) and I/O buses.
3. Industrial Applications
Deployed in oil & gas, power plants, and chemical processing for critical process monitoring.
Supports safety-critical functions such as emergency shutdown (ESD) and fire & gas detection (F&G).
4. Key Features
High-resolution analog-to-digital conversion for precise measurement.
Channel-to-channel isolation to prevent signal interference.
Hot-swappable design for maintenance without system downtime.
Complies with IEC 61508 (SIL 2/3) for functional safety.
5. Diagnostics & Configuration
Enables remote device management via HART protocol (e.g., parameter adjustment, calibration).
Configurable through TriStation 1131 software for seamless integration.
This module ensures reliable, high-fidelity analog signal acquisition in mission-critical automation environments.
